5-38 Disassembly/Reassembly Procedures: Exploded Mechanical Views and Parts Lists
5.8.2 Alphanumeric Display Control Head Exploded View and Parts List

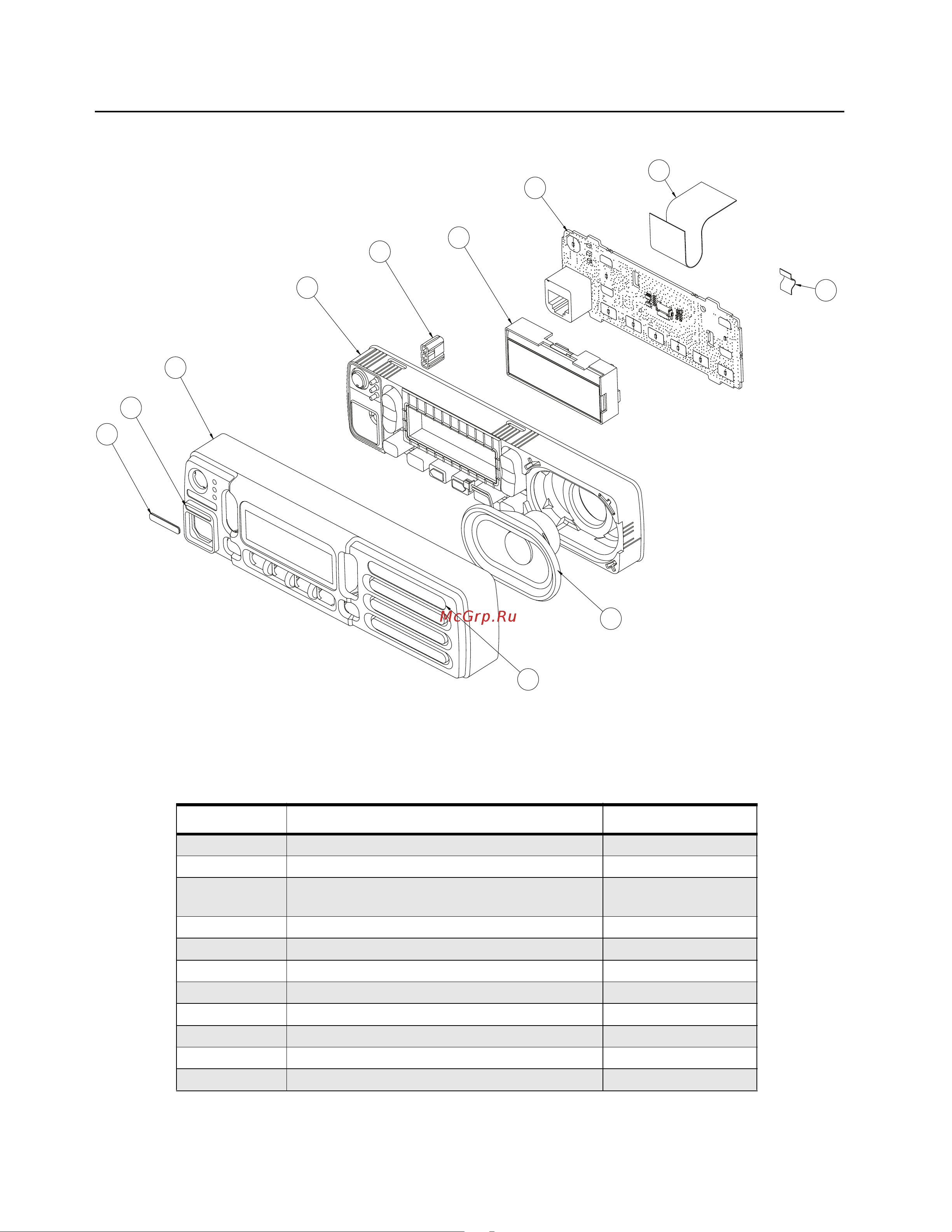

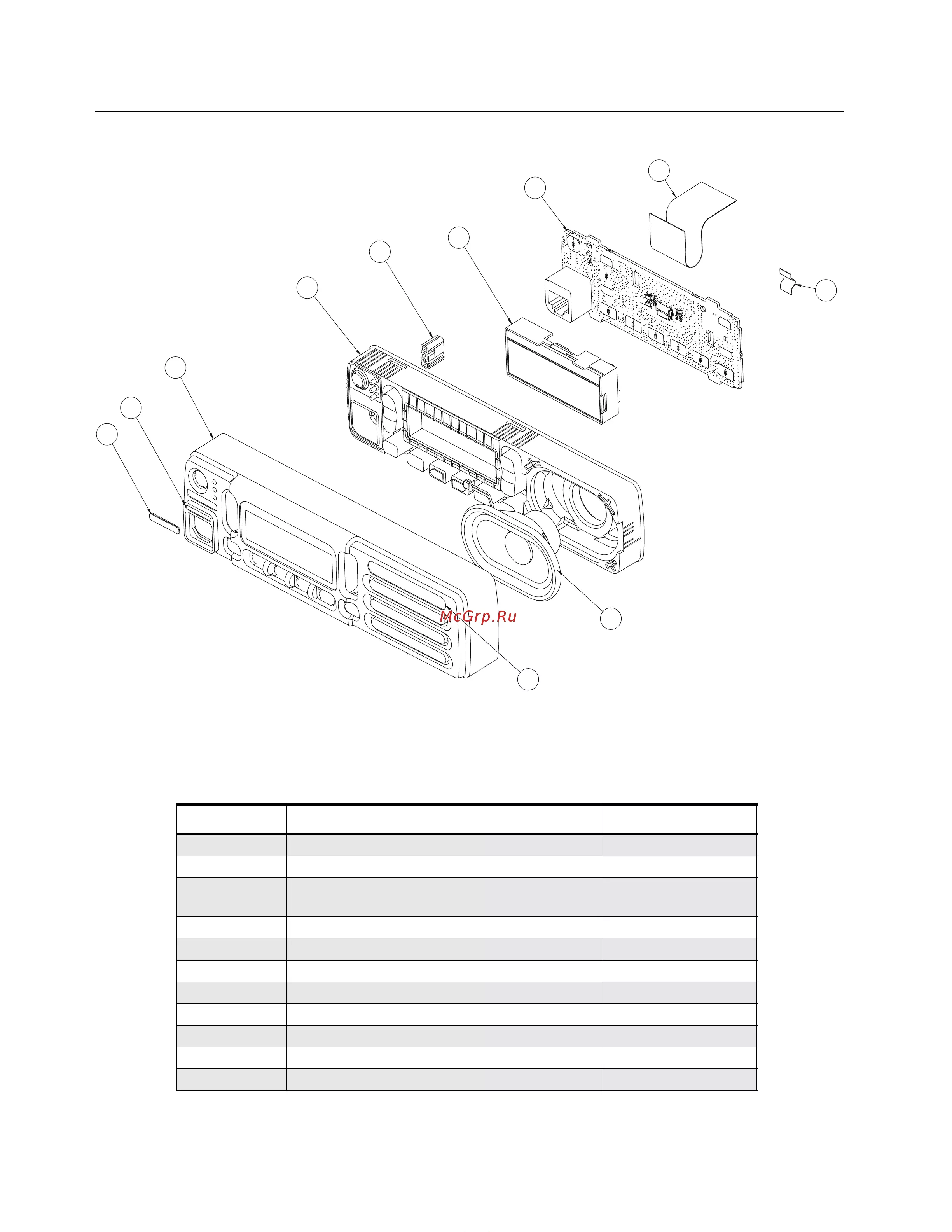

Figure 5-53 Alphanumeric Display Control Head Exploded View
Table 5-4 Alphanumeric Display Control Head (PMLN6441_) Exploded View Parts List
Item no Description Part No
1 Nameplate, DM2600 33012051009
2 Label, Accessory Indicator 54012312001
3 Housing Front Assembly, Alphanumeric Control
Head Plus
0104057J46
4 Nameplate, Motorola Logo 33012052001
5 Speaker 5015935H02
6 Keypad, Alphanumeric Control Head Plus 75012212001
7 Light Guide Holder 07012052001
8 2 Line Monochrome Display Module 72012024001
9 PCB Assembly 0104057J47
10 Cable Flex, Control Head 30012065001
11 Speaker Tape 11012133001
1
3
2
6
7
8
9
5
11
4
10
