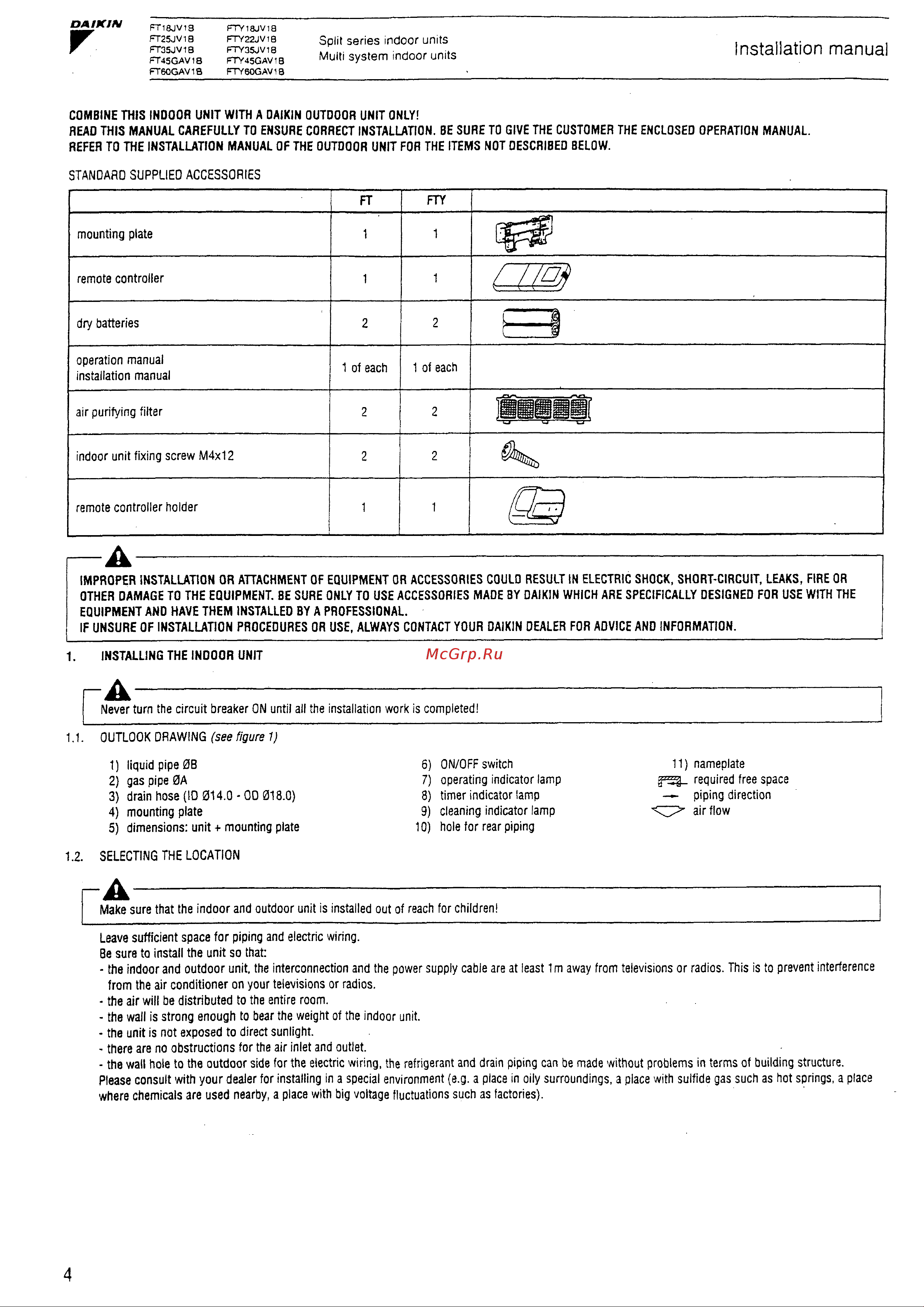

DAIKIN FT18JV13 FT25JV18 FT35JV18 FT45GAV18 FT6OGAV10 FTY18JV18 FTY22JV1B FTY35JV18 FTY45GAV1B FTY60GAV18 Split series indoor units Installation manual Multi system indoor units COMBINE THIS INDOOR UNIT WITH A DAIKIN OUTDOOR UNIT ONLY READ THIS MANUAL CAREFULLY TO ENSURE CORRECT INSTALLATION BE SURE TO GIVE THE CUSTOMER THE ENCLOSED OPERATION MANUAL REFER TO THE INSTALLATION MANUAL OF THE OUTDOOR UNIT FOR THE ITEMS NOT DESCRIBED BELOW STANDARD SUPPLIED ACCESSORIES FT FTY mounting plate 1 1 remote controller 1 1 dry batteries 2 2 1 of each 1 of each air purifying filter 2 2 indoor unit fixing screw M4x12 2 2 remote controller holder 1 1 operation manual installation manual I lliSSBSwElOii cSiSSc IMPROPER INSTALLATION OR ATTACHMENT OF EQUIPMENT OR ACCESSORIES COULD RESULT IN ELECTRIC SHOCK SHORT CIRCUIT LEAKS FIRE OR OTHER DAMAGE TO THE EQUIPMENT BE SURE ONLY TO USE ACCESSORIES MADE BY DAIKIN WHICH ARE SPECIFICALLY DESIGNED FOR USE WITH THE EQUIPMENT AND HAVE THEM INSTALLED BY A PROFESSIONAL IF UNSURE OF INSTALLATION PROCEDURES OR USE ALWAYS CONTACT YOUR DAIKIN DEALER FOR ADVICE AND INFORMATION 1 INSTALLING THE INDOOR UNIT A Never turn the circuit breaker ON until all the installation work is completed 1 1 OUTLOOK DRAWING see figure 1 1 liquid pipe 0B 2 gas pipe 0A 3 drain hose ID 014 0 OD 018 0 4 mounting plate 5 dimensions unit mounting plate 6 ON OFF switch 7 operating indicator lamp 8 timer indicator lamp 9 cleaning indicator lamp 11 nameplate required free space piping direction 37 airflow 10 hole for rear piping 1 2 SELECTING THE LOCATION A Make sure that the indoor and outdoor unit is installed out of reach for children Leave sufficient space for piping and electric wiring Be sure to install the unit so that the indoor and outdoor unit the interconnection and the power supply cable are at least 1m away from televisions or radios This is to prevent interference from the air conditioner on your televisions or radios the air will be distributed to the entire room the wall is strong enough to bear the weight of the indoor unit the unit is not exposed to direct sunlight there are no obstructions for the air inlet and outlet the wall hole to the outdoor side for the electric wiring the refrigerant and drain piping can be made without problems in terms of building structure Please consult with your dealer for installing in a special environment e g a place in oily surroundings a place with sulfide gas such as hot springs a place where chemicals are used nearby a place with big voltage fluctuations such as factories 4
