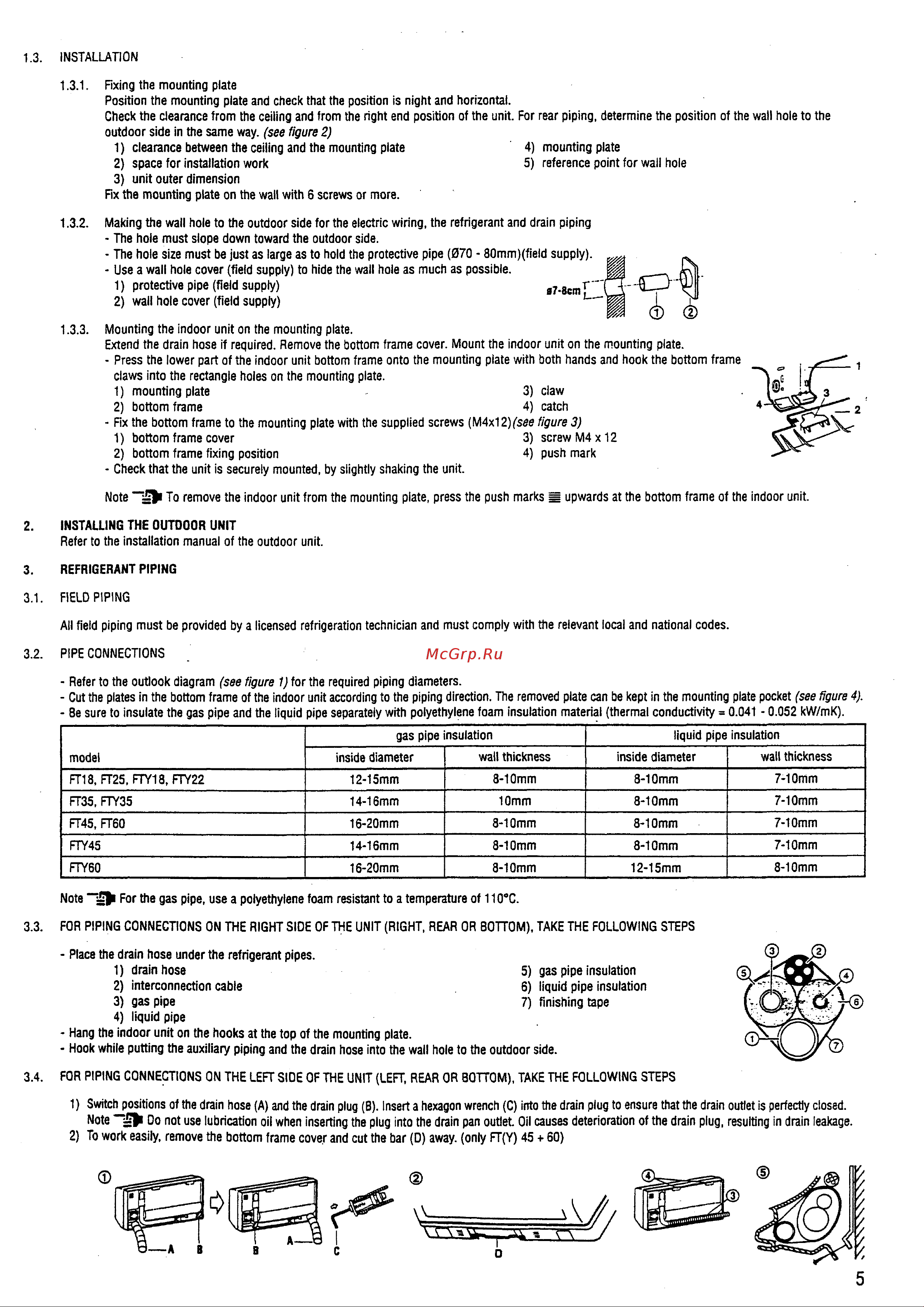

1 3 INSTALLATION 1 3 1 Fixing the mounting plate Position the mounting plate and check that the position is night and horizontal Check the clearance from the ceiling and from the right end position of the unit For rear piping determine the position of the wall hole to the outdoor side in the same way see figure 2 1 clearance between the ceiling and the mounting plate 4 mounting plate 2 space for installation work 5 reference point for wall hole 3 unit outer dimension Fix the mounting plate on the wall with 6 screws or more Making the wall hole to the outdoor side for the electric wiring the refrigerant and drain piping 1 3 2 The hole must slope down toward the outdoor side The hole size must be just as large as to hold the protective pipe 070 80mm field supply Use a wall hole cover field supply to hide the wall hole as much as possible a7 8cmr 1 protective pipe field supply 2 wall hole cover field supply 1 Mounting the indoor unit on the mounting plate 1 3 3 Extend the drain hose if required Remove the bottom frame cover Mount the indoor unit on the mounting plate Press the lower part of the indoor unit bottom frame onto the mounting plate with both hands and hook the bottom frame claws into the rectangle holes on the mounting plate 1 mounting plate 3 claw 2 bottom frame 4 catch Fix the bottom frame to the mounting plate with the supplied screws M4x12 see figure 3 1 bottom frame cover 3 screw 2 bottom frame fixing position 4 push mark M4x 12 Check that the unit is securely mounted by slightly shaking the unit Note To remove the indoor unit from the mounting plate press the push marks upwards at the bottom frame of the indoor unit 2 INSTALLING THE OUTDOOR UNIT Refer to the installation manual of the outdoor unit 3 REFRIGERANT PIPING 3 1 FIELD PIPING All field piping must be provided by a licensed refrigeration technician and must comply with the relevant local and national codes 3 2 PIPE CONNECTIONS Refer to the outlook diagram see figure 1 for the required piping diameters Cut the plates in the bottom frame of the indoor unit according to the piping direction The removed plate can be kept in the mounting plate pocket see figure 4 Be sure to insulate the gas pipe and the liquid pipe separately with polyethylene foam insulation material thermal conductivity 0 041 0 052 kW mK liquid pipe insulation gas pipe insulation inside diameter wall thickness inside diameter wall thickness FT18 FT25 FTY18 FTY22 12 15mm 8 10mm 8 10mm 7 10mm FT35 FTY35 14 16mm 10mm 8 10mm 7 10mm FT45 FT60 16 20mm 8 10mm 8 10mm 7 10mm FTY45 14 16mm 8 10mm 8 10mm 7 10mm FTY60 16 20mm 8 10mm 12 15mm 8 10mm model Note For the gas pipe use a polyethylene foam resistant to a temperature of 110 C 3 3 FOR PIPING CONNECTIONS ON THE RIGHT SIDE OF THE UNIT RIGHT REAR OR BOTTOM TAKE THE FOLLOWING STEPS Place the drain hose under the refrigerant pipes 1 drain hose 5 gas pipe insulation 2 interconnection cable 6 liquid pipe insulation 3 gas pipe 7 finishing tape 4 liquid pipe Hang the indoor unit on the hooks at the top of the mounting plate Hook while putting the auxiliary piping and the drain hose into the wall hole to the outdoor side 3 4 FOR PIPING CONNECTIONS ON THE LEFT SIDE OF THE UNIT LEFT REAR OR BOTTOM TAKE THE FOLLOWING STEPS 1 Switch positions of the drain hose A and the drain plug B Insert a hexagon wrench C into the drain plug to ensure that the drain outlet is perfectly closed Note Do not use lubrication oil when inserting the plug into the drain pan outlet Oil causes deterioration of the drain plug resulting in drain leakage 2 To work easily remove the bottom frame cover and cut the bar D away only FT Y 45 60 5
