D BATTERY CASE AND PACK
• BP-245N Li-ion battery pack
The same as supplied with the transceiver.
Voltage : 7.4 V
Capacity : 1900 mAh (minimum)/2000 mAh (typical)
D CHARGERS
• BC-210 desktop charger + BC-123SA/SE/SV ac adapter
For rapid charging of battery packs. The same as supplied with
the transceiver. An AC adapter is supplied with the charger
depending on versions.
Charging time: Approximately 2.5 hours
• BC-197 multi-charger + AD-129 charger adapter (6 pcs.)
+ BC-157S ac adapter
For rapid charging of up to 6 battery packs (six AD-129’s are
required) simultaneously. An AC adapter should be purchased
separately.
Charging time: Approximately 2.5 hours.
D DC CABLES
• CP-25H cigarette lighter cable
The same as supplied with some of the transceiver versions.
Specication: 12 V DC/1 A
NOTE: The CP-25H
is equipped with a
2 A fuse. If the fuse
blows, replace it with
a new rated fuse. DO
NOT use a fuse with
amp ratings other
than this rating.
• OPC-515L/OPC-656
dc power cables
Charges the battery pack using 13.8 V power source instead of
the AC adapter.
OPC-515L: For BC-210
OPC-656 : For BC-197
D BELT CLIPS
• MB-103 belt clip
The same as supplied with the transceiver.
• MB-86 swivel belt clip
Belt clip for swivel type.
• MB-96N/F leather belt hanger
D OTHER OPTIONS
• HM-167 speaker-microphone
Full sized waterproof speaker-microphone including alligator
type clip to attach to your shirt or collar, etc.
• HM-202 speaker-microphone
The HM-202 meets IP67 requirements for waterproof protection.
Once the item has been dropped, the waterproof protection cannot be
guaranteed because of possible damage to the case or the waterproof
seals.
• FA-S59V*/FA-S64V flexible antenna
*For only for the EUR, UK, FRG and HOL versions.
Approved Icom optional equipment is designed for optimal per-
formance when used with an Icom transceiver. Icom is not re-
sponsible for the destruction or damage to an Icom transceiver in
the event the Icom transceiver is used with equipment that is not
manufactured or approved by Icom.
Available or applicable options may differ according to
countries. Ask your authorized dealer for details.

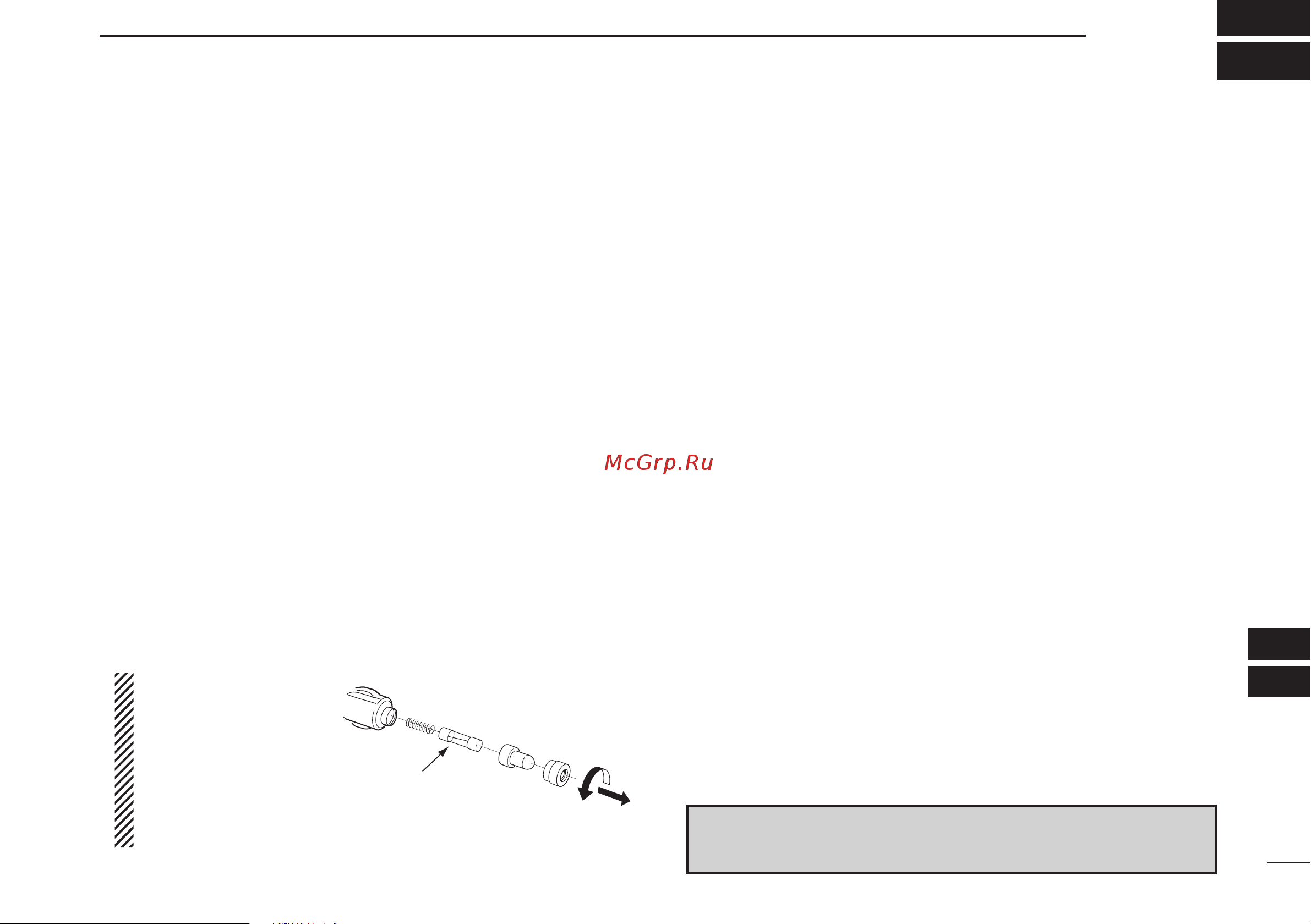

CP-25H : (2 A / 250 V)
Fuse
