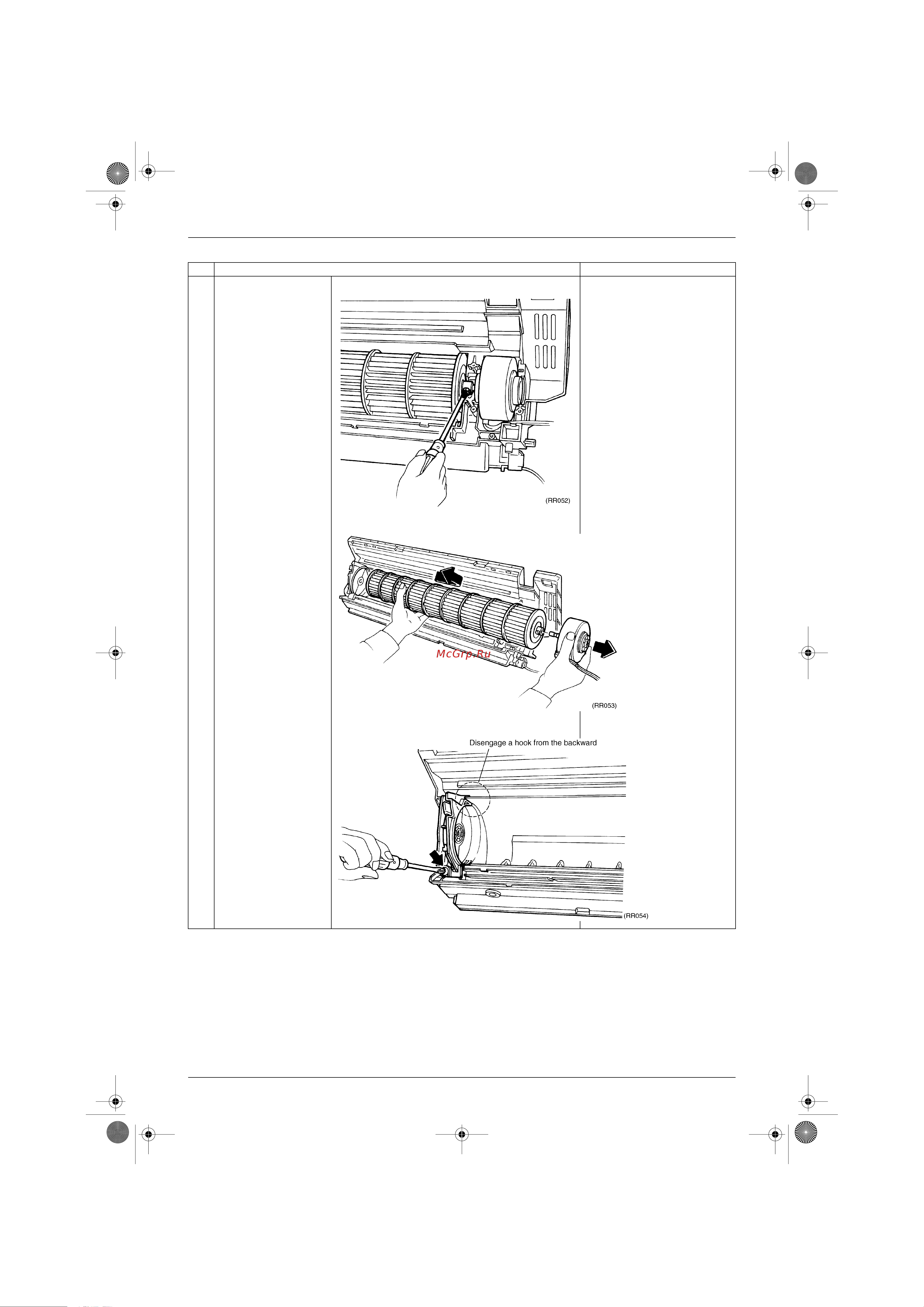

SIE-86 For FTK25J, FTK35J, FTX25J, FTX35J
Removal Procedure 101
3
Loosen the hexagon head
set screw on the fan rotor.
4
Remove the motor and fan
rotor.
5
Remove a screw on the
left side panel.
Step Procedure Points
Si-86.book Page 101 Friday, June 23, 2000 10:26 AM
