Daikin RZP140DTAL [219/255] Removal of drain pan drain pump float switch
![Daikin FHYP60BV1 [219/255] Removal of drain pan drain pump float switch](/views2/1782863/page219/bgdb.png)
FHYCP71~140D SiE25-110
210 Removal Procedure
1.10 Removal of Drain Pan, Drain Pump, Float Switch
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

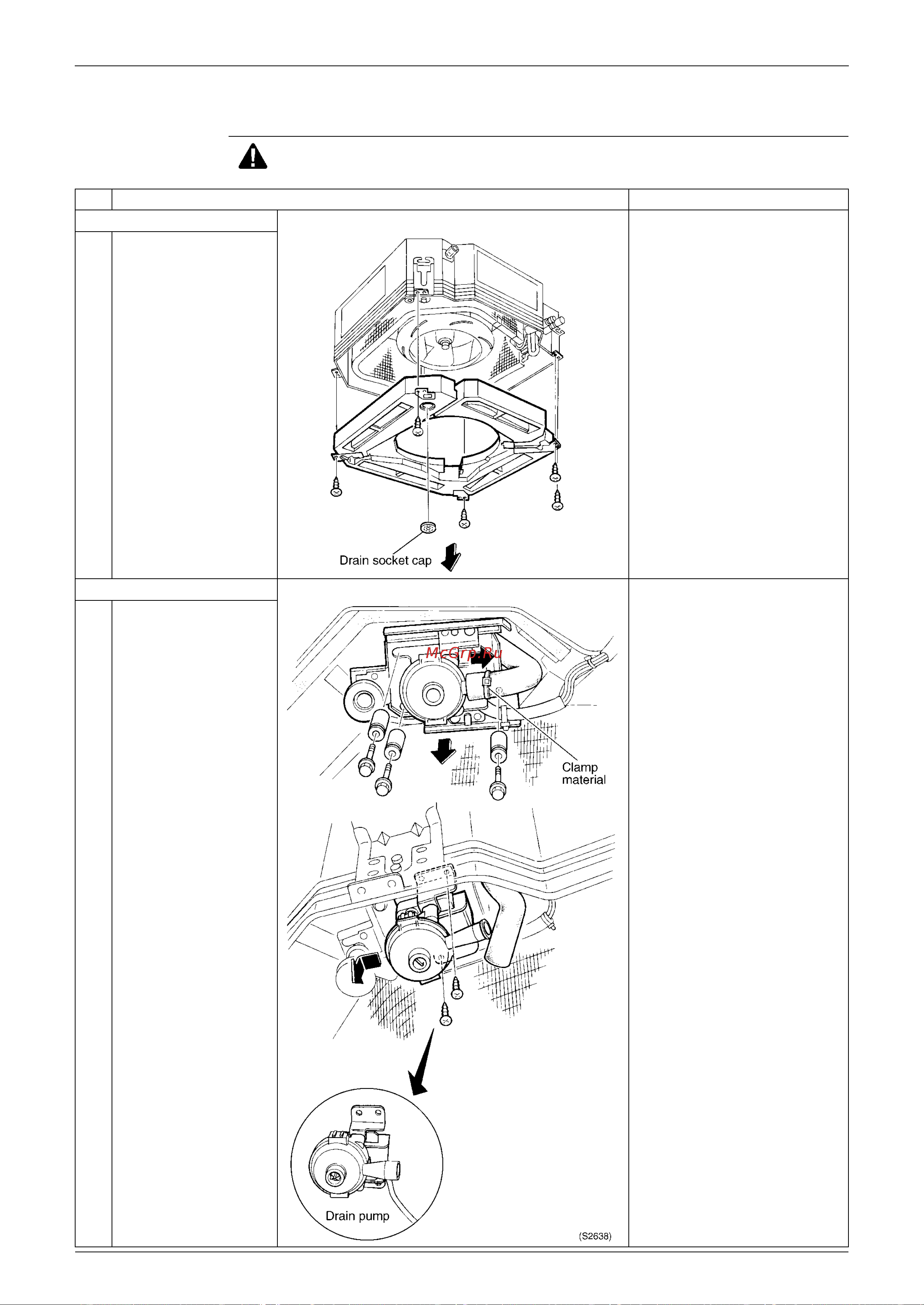

1. Removing the drain pan
1
Remove the drain
socket cap to discharge
water.
2
Remove the 5 mounting
screws to pull the drain
pan out downward.
2. Removing the drain pump
1
Cut the clamp material.
2
Pull the drain hose out.
3
Remove the 3 screws
on the drain pump
mounting plate.
4
Remove the 2 mounting
screws on the drain
pump.
5
Displace the drain pump
sideward to remove it.
When removing the drain
pump, cut the following
clamp materials.
Clamp material securing the
drain pump lead wire to the
drain pump mounting plate.
Clamp material bundling the
drain pump lead wire and
float switch lead wire.
