RZP71~140D SiE25-110

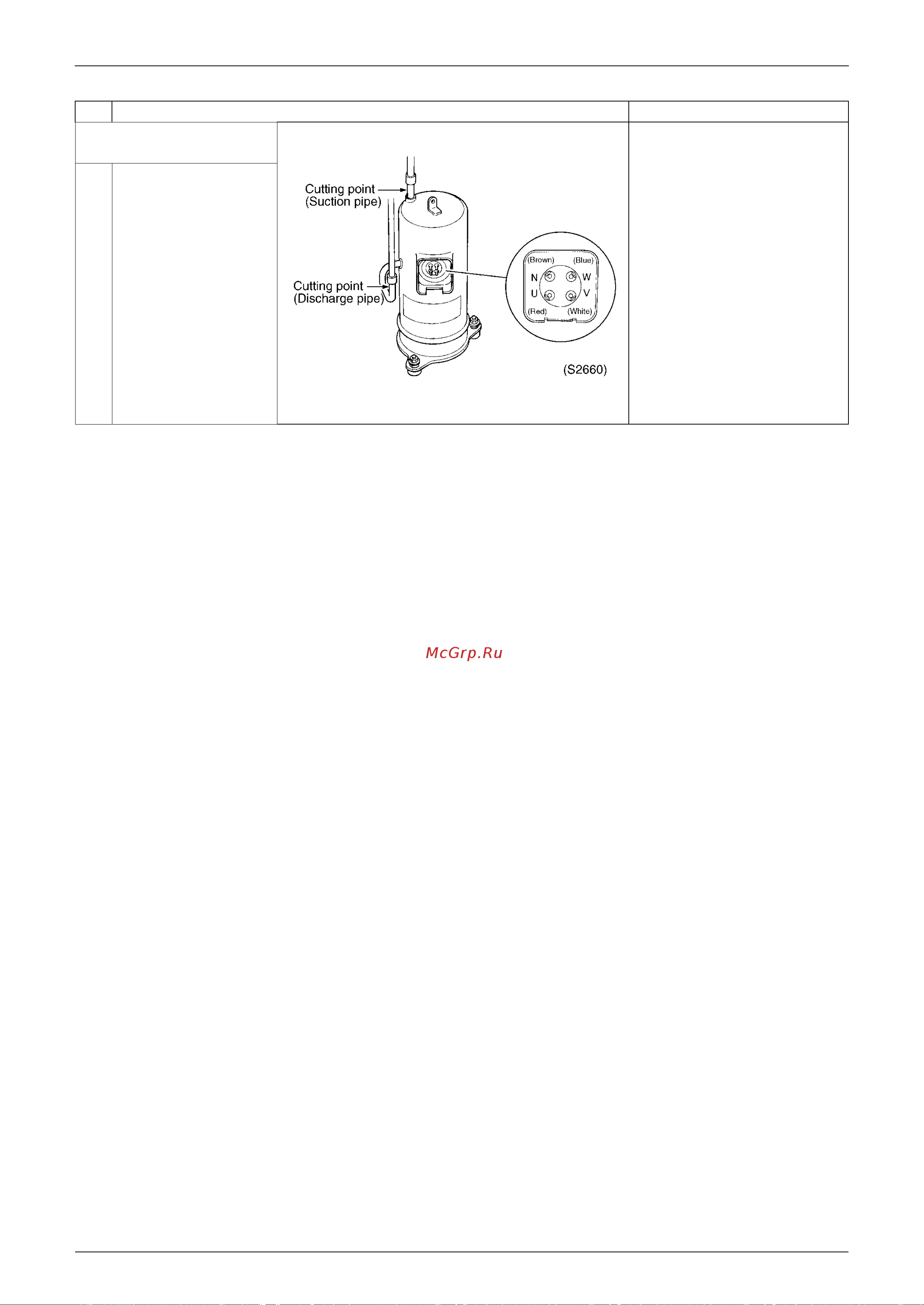

222 Removal Procedure
3. Removing the
compressor
Be sure to cut the pipes by
using a pipe cutter before
disconnecting the brazed
sections of the pipes.
A sudden disconnection of
the brazed sections can
cause oil to catch fire.
1
Remove the nuts from
the compressor
mounting bolts (3
locations).
2
Cut the suction and
discharge pipes using a
pipe cutter.
3
Lift up the compressor
to clear the mounting
bolts to remove the
compressor.
4
Disconnect the brazed
section of other pipes.
Step
Procedure Points
