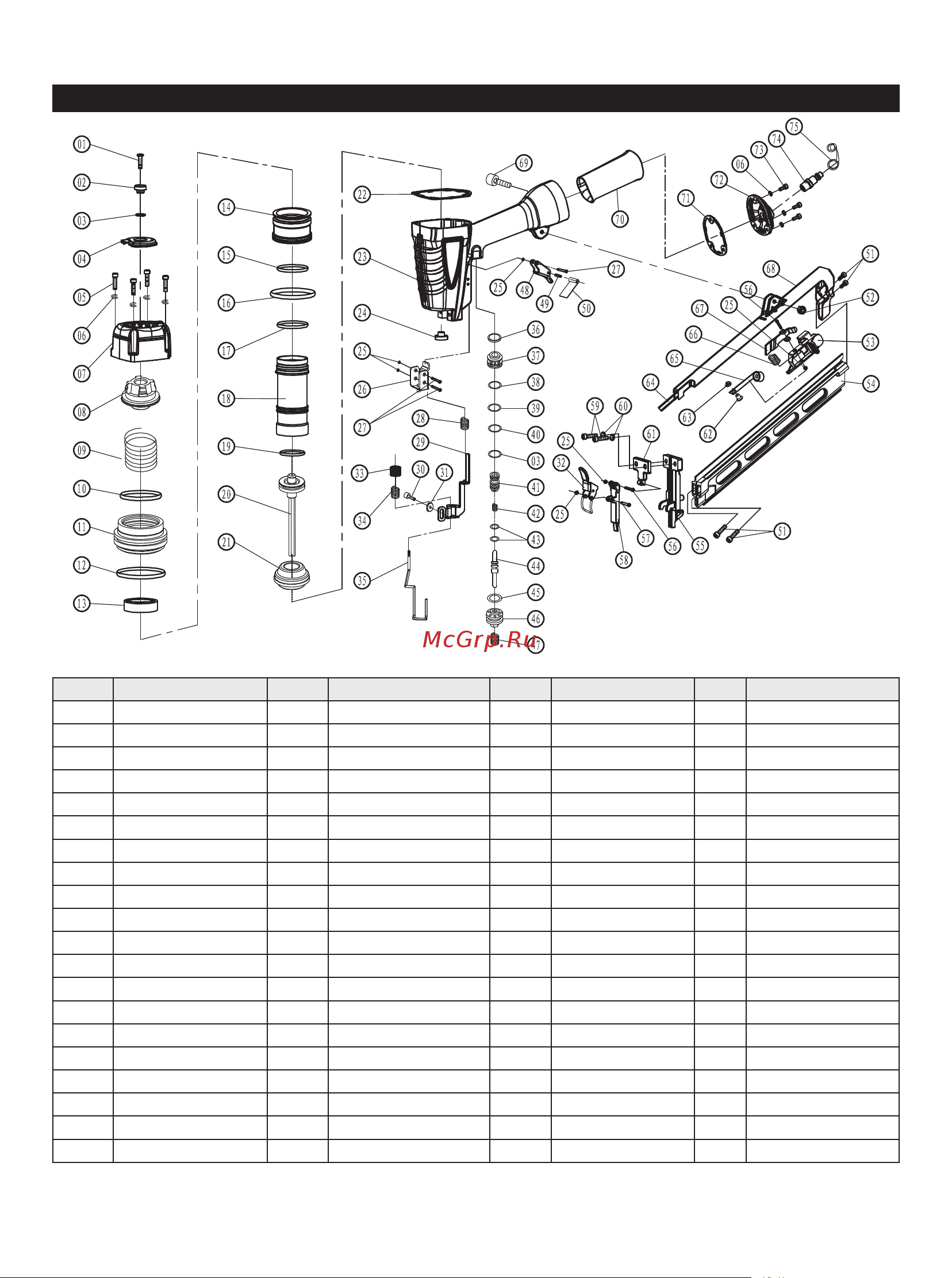

pARts lIst

No. Description No. Description No. Description No. Description

01 Bolt 21 Bumper 41 T

rigger valve guide 61 Fixed cover

02 Axle sleeve 22 Cylinder cover washer 42 Spring 62 Pin

03 O-ring 9 x 1.8 23 Gun body 43 O-ring 2.5 x 1.5 63 Retainer ring

04 Air deector 24 Rubber washer 44 Switch valve stem 64 Drive nail slip

05 Bolt M5 x 25 25 O-ring 1.7 x 2 45 O-ring 18 x 2.65 65 Coil spring

06 Spring washer 26 Safety seat 46 Switch valve seat 66 Spring

07 Cylinder cover 27 Pin 47 Spring 67 Pusher

08 Switch valve seat 28 Spring 48 Trigger 68 Drive nail cover

09 Compressed spring 29 Drive stand 49 Pin 69 Bolt

10 O-ring 38.7 x 2.65 30 Bolt 50 Safety spacer 70 Rubber

11 Switch valve 31 Guide sleeve 51 Bolt 71 Washer

12 O-ring 48.7 x 2.65 32 Quick release handle 52 Nut 72 End cover

13 Sealing washer 33 Nut 53 Pusher base 73 Bolt

14 Collar 34 Spring 54 Drive nail slice 74 Air plug

15 O-ring 45 x 2.65 35 Safety yoke 55 Drive guide 75 Air plug case

16 O-ring 63 x 2.65 36 Sealing washer 56 Pin

17 O-ring 45 x 3.55 37 Trigger valve seat 57 Pin

18 Cylinder 38 O-ring 16 x 1.6 58 Drive guide cover

19 O-ring 34.6 x 3.55 39 O-ring 6.1 x 1.8 59 Bolt

20 Main piston 40 O-ring 6.4 x 2 60 Washer

AF-6434
