22
FEATURES
• ENERGY SAVING VIA:
1. Reluctance DC compressor
High energy efficiency in the most frequently used mid-to-low settings keeps annual electricity
costs low.
The RZP-unit is the first commercial grade air conditioner with powerful neodymium
magnets using reluctance torque
DOUBLE TORQUE IMPROVES ENERGY EFFICIENCY
The combination of magnetic torque from
powerful neodymium magnets and reluctance
torque (applied to an air conditioner’s compressor
for the first time) generates more power using
less electricity.

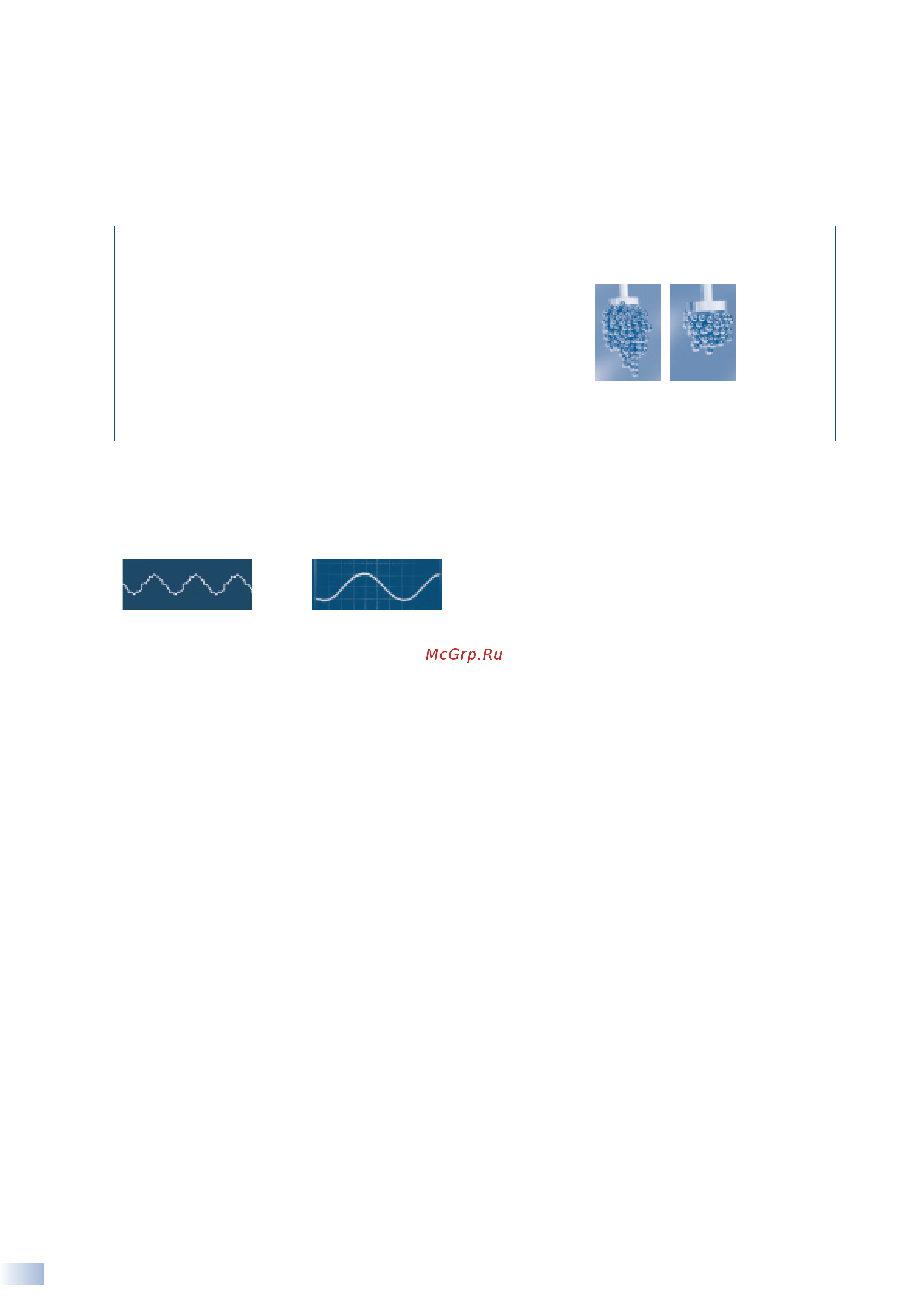

2. Sine Wave DC inverter
Generates smooth inverter waveforms to increase efficiency
Rectangular wave Sine wave PWM*
3. Heat divide type heat exchanger
Improved capability of the heat exchanger by U type wide form and waffle fin adoption. This
new technique results in an improved COP
4. New Super Cooling e-bridge circuit
An increase in evaporation capacity stems from the newly developed refrigeration circuit, known
as the SCe-bridge circuit, which adds super cooling prior to expansion procedure. By adopting
this circuit, the COPs in both cooling and heating have been drastically improved.
5. DC fan motor
The DC fan motor offers substantial improvements in operating efficiency compared to
conventional AC motors, especially during low speed operation.
6. Compressor linked fan control
Maintains maximum COP
7. Smooth air flow mechanism:
- Hybrid aerofoil fan:
A newly designed fan, applying air flow analyses techniques developed by NASA, creates
smooth air flow, raising the COP and reducing the sound level.
- High flared bell mouth
- Super aero grille
The spiral shaped ribs are aligned with the direction of discharge flow to minimise turbulence
and reduce noise
8. Predicted mean vote (PMV) control
At equivalent room temperatures an occupant can feel hot in the summer and cold in the fall
and spring. The PMV control function senses conditions such as outdoor temperature, internal
heat sources and the levels of radiant heat. It then maintains room temperature at the most
comfortable level and maximises energy saving characteristics.
Neodymium
magnet
Ferrite
magnet
Secret to raising energy-efficiency!
Powerful magnets
Neodymium magnet is much more powerful
than the widely used ferrite magnets.
*Pulse Width
Modulation
00225•New products•01-12 09-11-2001 11:17 Pagina 23
