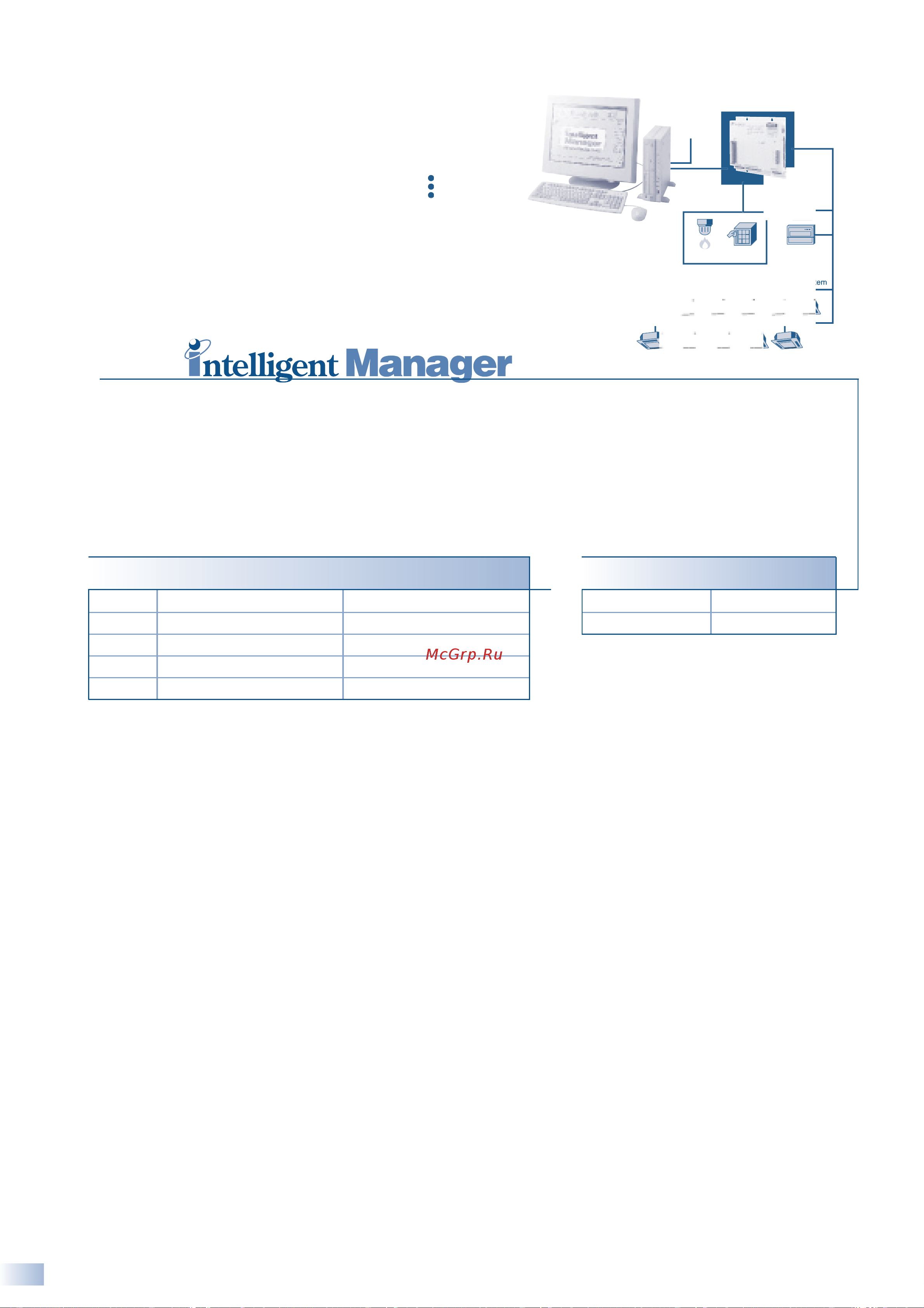

38
Local
Controller
4 units
max.
Operation Status Monitoring
Schedule Management
Tenant Management
...
etc
SecurityFire alarm
iPU:DAM602A51 intelligent
Processing Unit
[iPU]
10
BACKGROUND
Intelligent manager is the end product of field experience gained on D-BACS and represents a
considerable leap forward in computerised air conditioning control. Increased reliability - stand alone
operation of 48 hours of the central computer, and better site management stemming from its free
layout are just a few of the many improvements.
FEATURES
• Management
- Proportional power consumption division
- Operational history management
(start/stop, malfunction, operation hours)
- Generation of reports (graphics & tables)
(daily, weekly, monthly)
- Peak load shedding
- Advanced tenant management
- Sliding temperature
- Eco mode
• Control
- Individual control (setpoint, start/stop,
fan speed) (max. 1,024 indoor units)
- Group control (100 groups)
- Schedule control (128 programs)
- Fire emergency stop control
(32 programs)
- Interlocking control
- Setpoint limitation
- Automatic cool-heat changeover
- Power failure/release control
- Temperature limit (automatic start)
- Timer extension
• Monitoring
- Visualisation via a Graphical User
Interface (GUI) featuring free layout
- Operation mode of indoor & outdoor
units
- Fault indication
- Indication filter replacement
- Setpoint indication
- Operation time monitoring
- Multi PC
- On-line help
• System layout
- Up to 1,024 indoor units can be
controlled (by 4 iPUs)
- Ethernet TCPIP / 10 base/T
communication
- Integrated digital contacts on the
Intelligent Processing Unit (iPU)
■ 16 input ports for kWh measurement
■ 3 general input ports
■ 2 digital outputs
- Stand alone operation of the iPU for
minimum 48 hours
- Compatible with UPS shutdown software
CONCEPT
iPU Number of indoors Number of outdoors
1 up to 256 up to 40
2 up to 512 up to 80
3 up to 768 up to 120
4 up to 1,024 up to 160
MODEL RANGE
Hardware DAM602A51
Software IM1.XX
Service and commissioning is offered by your technical service department.
00225•New products•01-12 09-11-2001 11:17 Pagina 39
