6
•

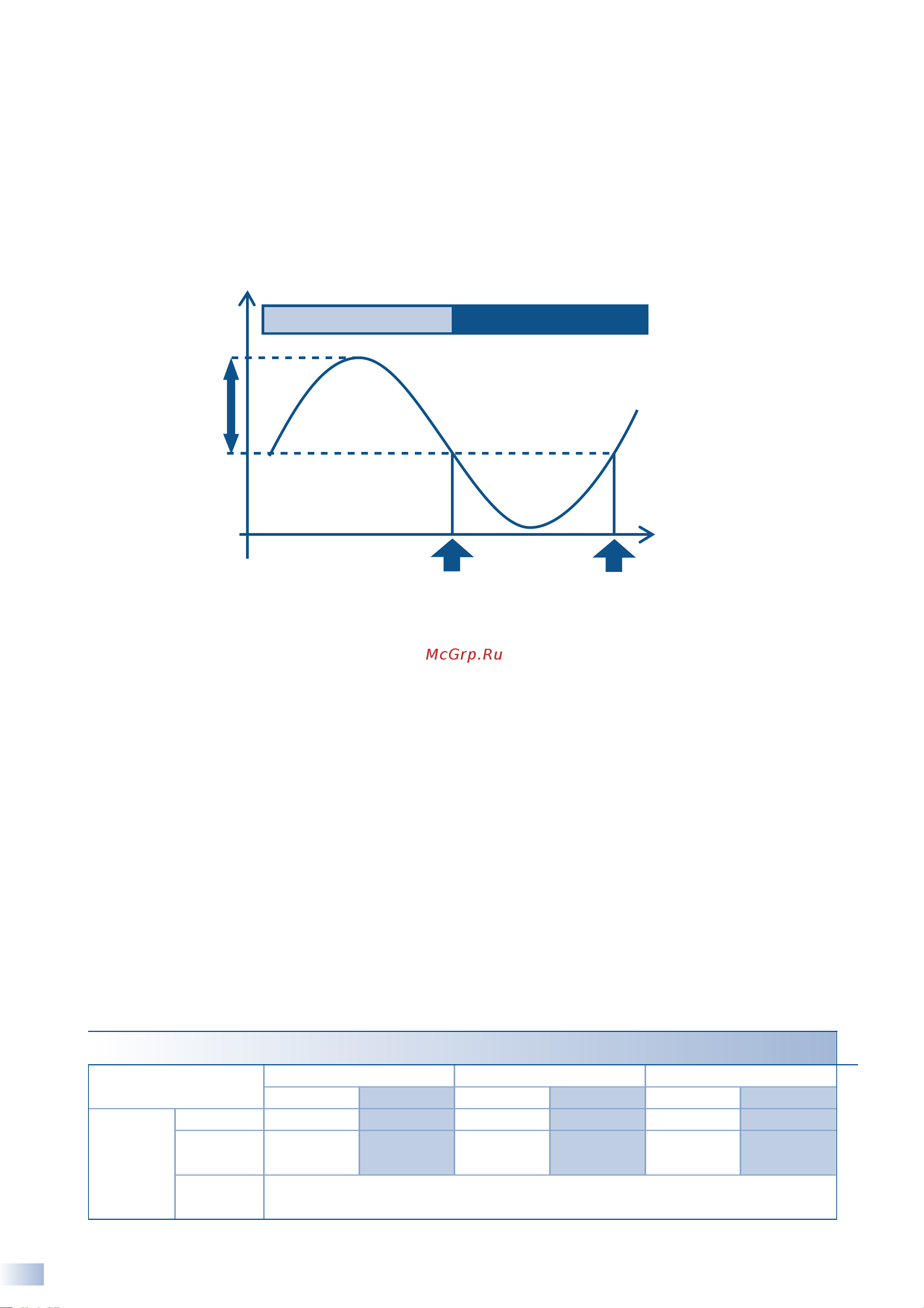

c. Night quiet mode (only for cooling mode)
It is possible to reduce outdoor unit sound level automatically by removing a jumper wire in
the outdoor unit. This function only works in cooling mode.
Night mode automatically starts when the outdoor temperature has dropped by 5°C (or more,
depending on the setting) below the maximum temperature recorded during the day.
(the function can be deactivated if the jumper wire is kept and reinstalled in the outdoor unit)
3. Wider operation range
In comparison to current Multi inverter units using R-22, the operation range has been extended
as follows :
Cooling only: from -10°C (R-22= from 10°C only) to 46°C (R-22= to 43°C)
Heat pump: • cooling mode from -10°C (R-22= from 21°C for 2MX52H & 3MX68H,
from 10°C for 4MX80H) to 46°C (R-22= to 43°C)
• heating mode from -15°C (R-22= from -10°C) to 15°C (R-22 same)
Outside
Temp.
Temp.
difference
(5°C)
Time
DAY
NIGHT
Start Night quiet mode Stop
PIPING LENGTHS
Cooling only 58 75 90
current new current new current new
Piping Total 45 60 70 70
length Height 15 15 15 15
difference
Refrigerant
Chargeless
charge
4. Changes for installation and after sales service
00225•New products•01-12 09-11-2001 11:17 Pagina 7
