- 10 -

TECHNICAL SPECIFICATION

Voltage: AC 230V

Frequency: 50Hz

Power: 700W

Capacity: 2-Litre capacity for dry items

1.2-Litre capacity for liquids

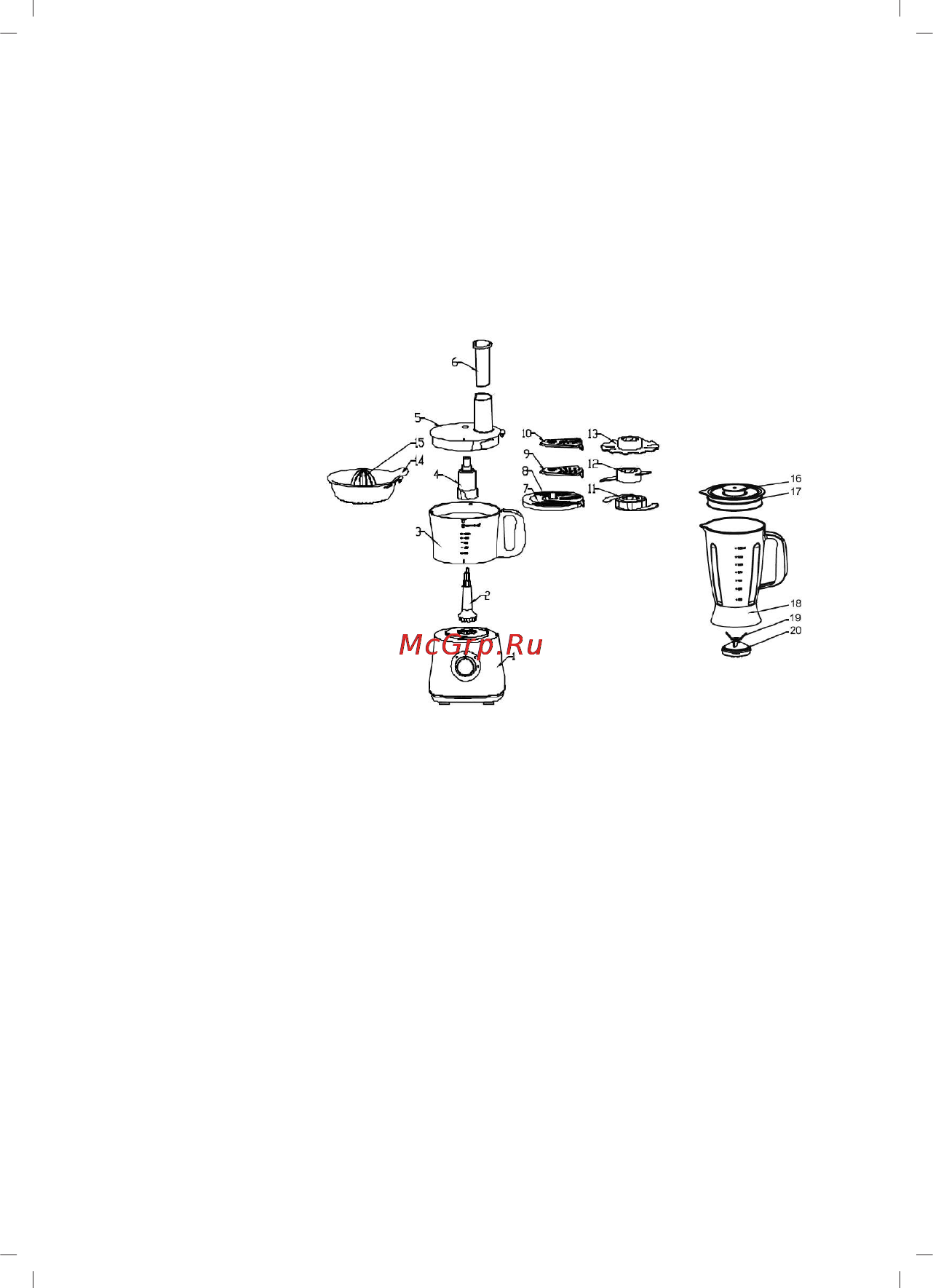

OVERVIEW

1. Motor Base

2. Driver

3. Processing Bowl

4. Blade Adapter

5. Bowl Cover

6. Pusher

7. Disc Holder

8. Slicing Disc

9. Shredder Disc

10. French Fry Disc

11. Chopper

12. Kneading Disc

13. Emulsifying Disc

14. Citrus Juicing Plate

15. Citrus Juicing Head

16. Blender Measuring Cup

17. Blender Jar Cover

18. Blender Jar

19. Blender Blade

20. Transmission Head

BEFORE FIRST USE

After unpacking, disassemble unit before using first time. Refer to “HOW TO

DISASSEMBLE” for directions.

Wash all parts except motor base in warm, soapy water. Rinse and dry immediately. DO

NOT IMMERSE MOTOR BASE IN WATER.

ASSEMBLY

Chopper Assembly

1. Position Driver on motor base.

2. Position processing bowl into the Driver and turn clockwise to seat firmly on motor

base.

3. Place blade adaptor onto the Driver.

4. Place chopper onto the blade adaptor.

5. Turn the chopper to the right position.

6. Place cover on bowl, turn clockwise until cover interlocks on bowl.

7. Place pusher into feeding chute
