14

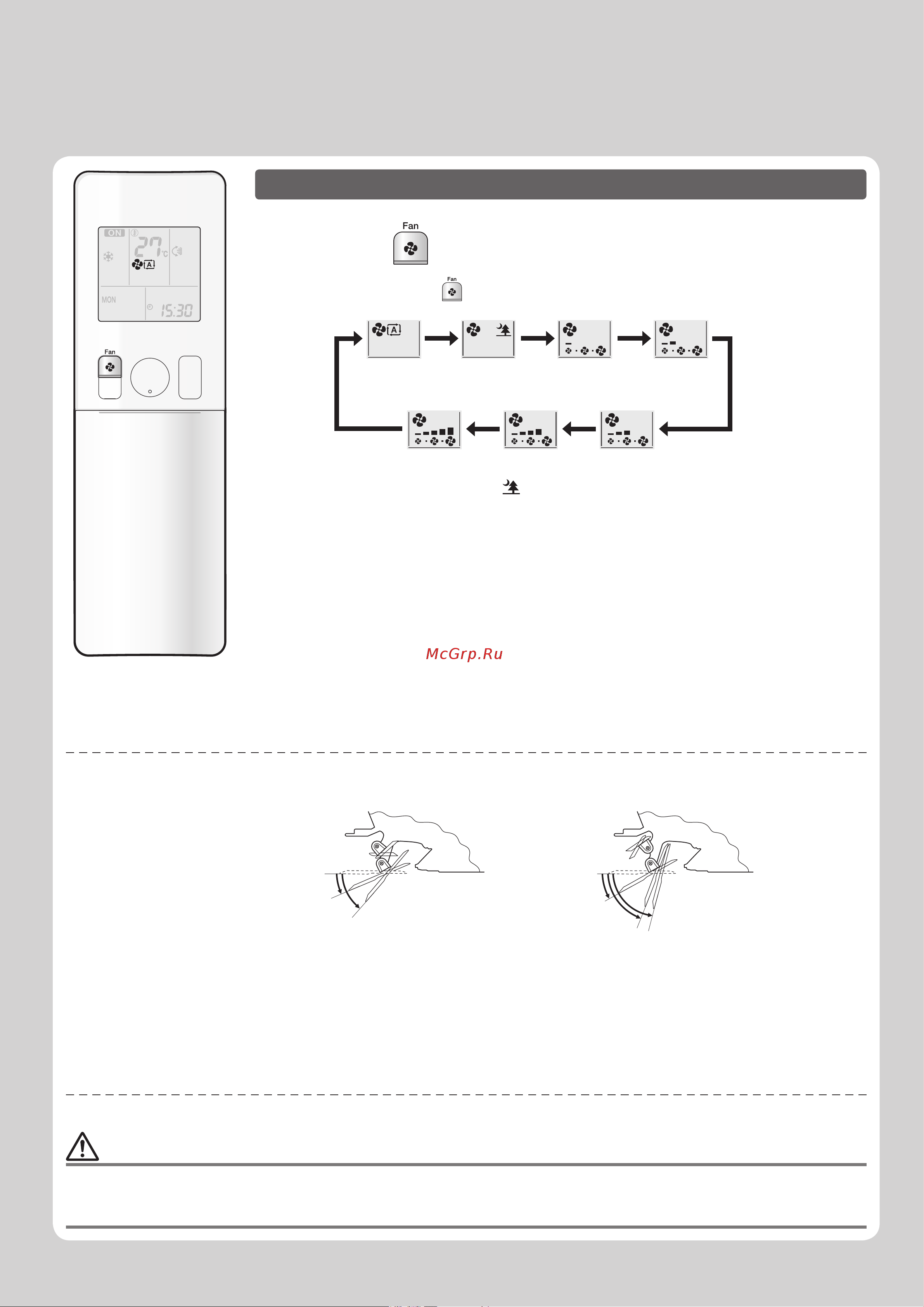

To adjust the airow rate setting
Press .
• Each pressing of advances the airow rate setting in sequence.
Auto Indoor unit quiet Low Middle low
MiddleMiddle highHigh
• When the airow is set to “ ”, indoor unit quiet operation will start and the noise
from the unit will become quieter.
• In indoor unit quiet operation, the airow rate is set to a weak level.
• If the temperature does not reach the desired point, change the airow rate setting.
• In DRY operation, the airow rate setting is not variable.
NOTE
Note on the angles of the aps
• The aps swinging range depends on the operation. (See the gure.)
HEAT operation
75°
30°
COMFORT AIRFLOW
Lower limit
Upper limit
Stop operation
70°
25°
Lower limit
Upper limit / COMFORT AIRFLOW
Stop operation
50°
COOL, DRY and
FAN operation
Note on the angles of the aps
• Using 3-D airow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling,
throughout the room, preventing areas of cold and hot developing.
Notes on airow rate setting
• At smaller airow rates, the cooling (heating) effect is also smaller.
• If the air conditioner is operated in COOL or DRY operation with the aps kept stopped in the downward direction, the aps will automatically
start operating in approximately an hour in order to prevent dew condensation.
CAUTION
• Always use a remote controller to adjust the angles of the aps and louvres.
- If you attempt to move the aps and louvres forcibly by hand when they are swinging, the mechanism may be damaged.
- Inside the air outlet, a fan is rotating at a high speed.
