3.0 INSTALLATION OF LCD REMOTE CONTROLLER

3.1 Accessories

The following accessories are included together with this manual. If any part is missing,

contact your dealer immediately.

1 Remote controller

2 Wooden screw 4.1 x 16 (2 pieces) & machine screw (2 pieces)

3 Instruction manual

4 Battery

3.2 Step-by-step guide

i) First, open up the casing of the LCD remote controller into its top and bottom case

using a screwdriver. To do this, insert the screwdriver into the lower slot and slide it in

the outward direction.

ii) Fix the bottom case onto the wall with the 2 wooden screws provided.

Then, insert the 4-pin connection wires (from main board) through the slot on the upper

center of the case as shown below.

iii) To select cooling only model or heatpump model, some adjustment required in the

shunt jumper setting.

iv) Fasten back the top and bottom case into place. Hook the two upper claws into their

respective slots and snap the lower part shut.

SHUNT JUMPER SETTING FOR MODEL SELECTION

* The AUTO DETECT is unavailable for Chilled Water (CW) System.

JH JD Application Model/Remark

OFF OFF AUTO DETECT Depends on main board

OFF SET CW & DX system Export cool (EC)

SET OFF CW & DX system Heatpump (HP)

SET SET AUTO DETECT Auto heatpump (AP)

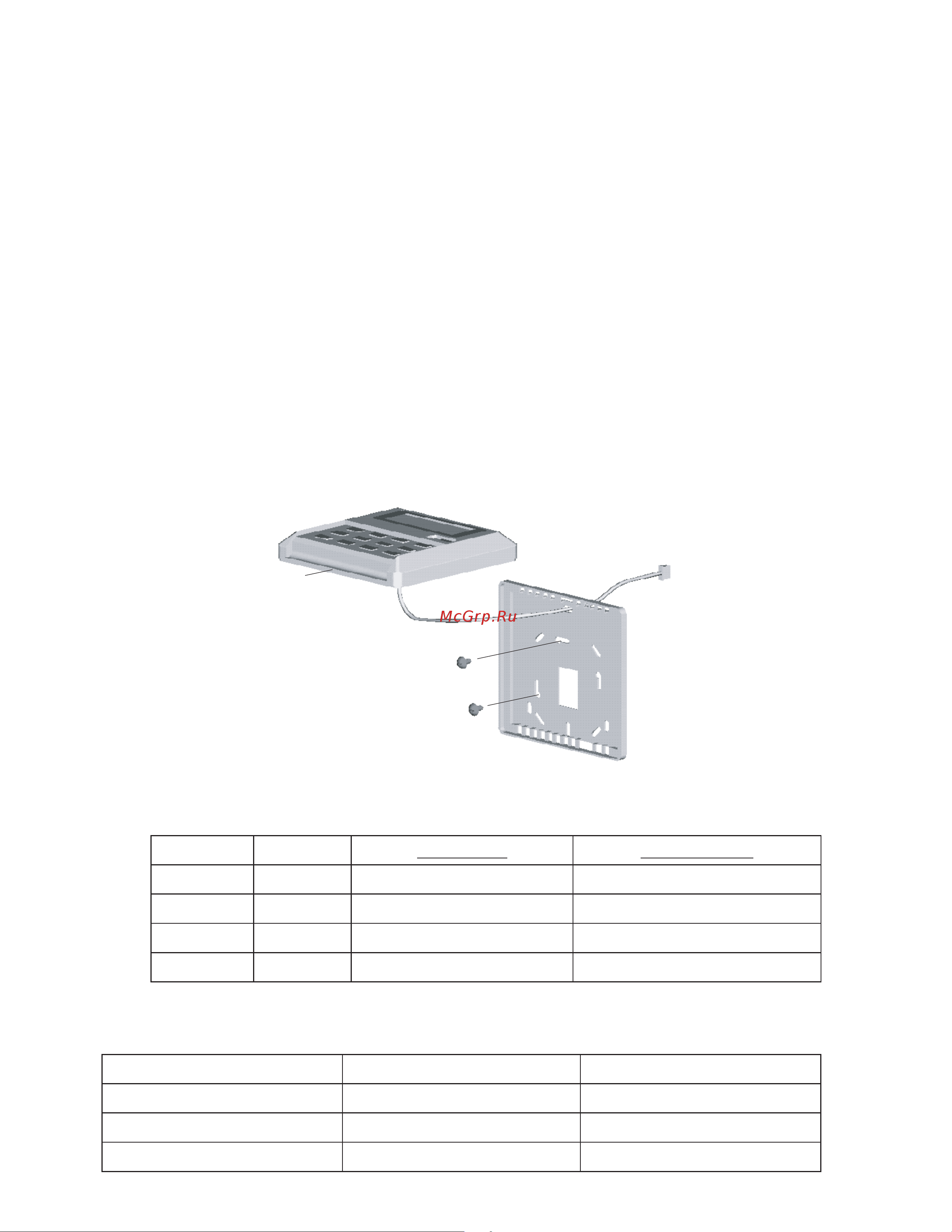

Connection

wires

LCD Remote

(Top case)

2 x Wooden

screw

LCD Remote

(Bottom case)

Lower slot

for opening LCD

casing

4.0 CONNECTION WIRES GUIDE

Main Board Wire Type Maximum Wire Length (m)

SB 125 board UL 2547 AWG 26 10

08A board UL 2547 AWG 26 15

UCW W2 board UL 2547 AWG 26 15
