4 Before operation
Operation manual
5
FTXTA30B2V1B(W)(B)
Daikin room air conditioner
3P485919-13U – 2021.03
▪ Dust. Dust on the signal transmitter or receiver will reduce
sensitivity. Wipe off dust with a soft cloth.
▪ Fluorescent lights. Signal communication might be disabled if
fluorescent lamps are in the room. In that case, contact your
installer.
▪ Other appliances. If the user interface signals operate other
appliances, move the other appliances, or contact your installer.
▪ Curtains. Make sure that the signal between the unit and the user
interface is NOT blocked by curtains or other objects.
NOTICE
▪ Do NOT drop the user interface.
▪ Do NOT let the user interface get wet.

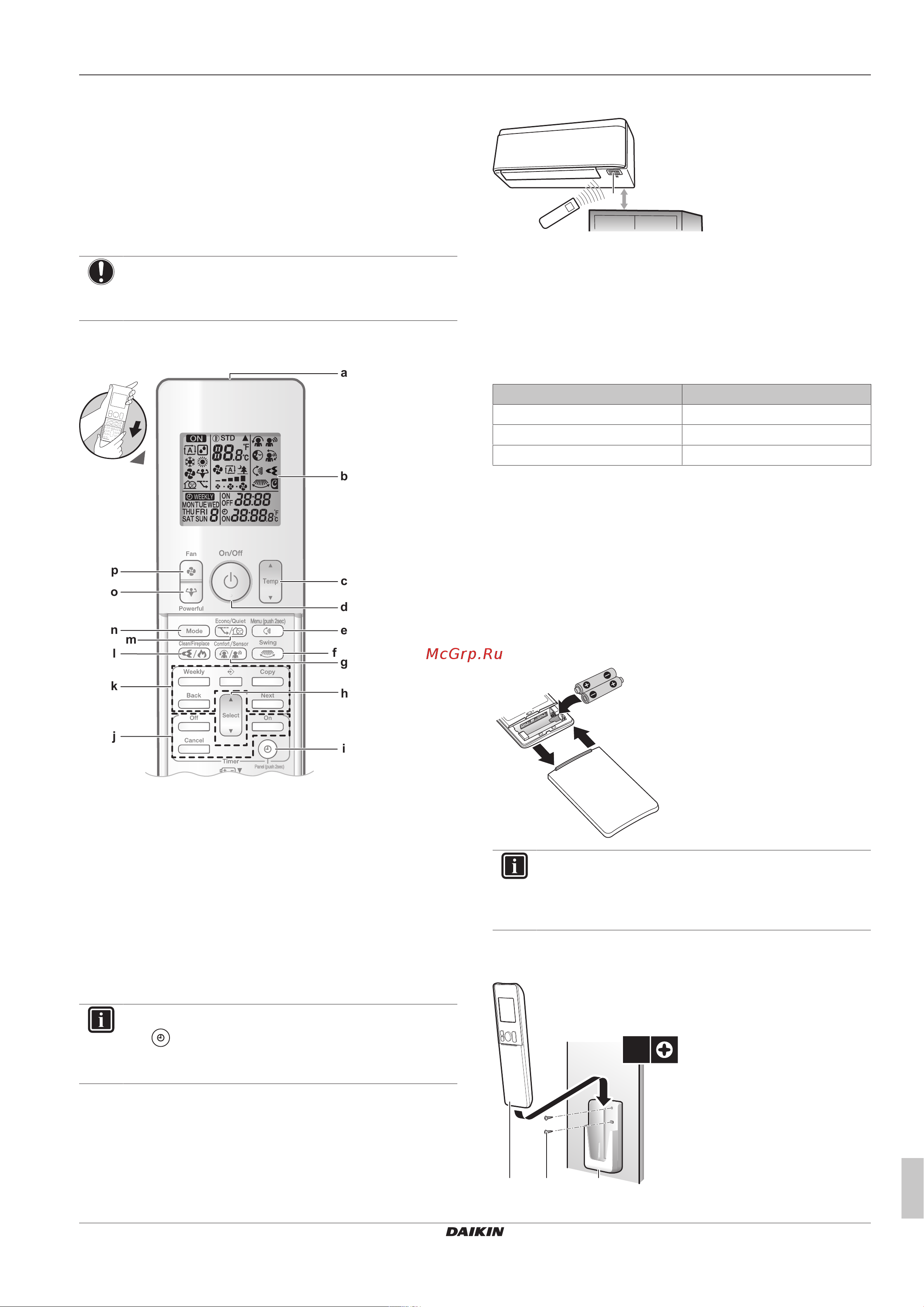

3.2.1 Components: User interface
Menu (push 2sec)
Panel (push 2sec)
d
a
g
m
h
c
b
n
l
f
e
i
j
k
p
o
Clean/Fireplace
a Signal transmitter
b LCD display
c Temperature adjustment button
d ON/OFF button
e Vertical swing and menu (push 2 seconds) button
f Horizontal swing button
g Comfort airflow and Intelligent eye operation button
h Select button
i Clock and open panel (push 2 seconds) button
j OFF/ON timer operation buttons
k Weekly timer operation buttons
l Flash Streamer and Fireplace logic operation button
m Econo and Outdoor unit quiet operation button
n Mode button
o Powerful button
p Fan button
INFORMATION
Use (hold for 2seconds) to open the front panel when
you clean the air filters. See "7.4 To open the front
panel"[415].
3.2.2 To operate the user interface
a
≥500
(mm)
a Signal receiver
Note: Make sure that there are no obstacles within 500mm under
the signal receiver. They may influence reception performance of the
user interface.
1 Aim the signal transmitter at the signal receiver on the indoor
unit (maximum distance for communication is 7m).
Result: When the indoor unit receives a signal from the user
interface, you will hear a sound:
Sound Description
Beep-beep Operation starts.
Beep Setting changes.
Long beep Operation stops.
4 Before operation
4.1 To insert the batteries
The batteries will last for about 1 year.
1 Remove the front cover.
2 Insert both batteries at once.
3 Put back the front cover.
2
3
1
AAA.LR03
INFORMATION
▪ Low energy of battery is indicated by flashing of LCD
display.
▪ ALWAYS replace both batteries at once.
4.2 To mount the user interface holder
cba
2×
