8

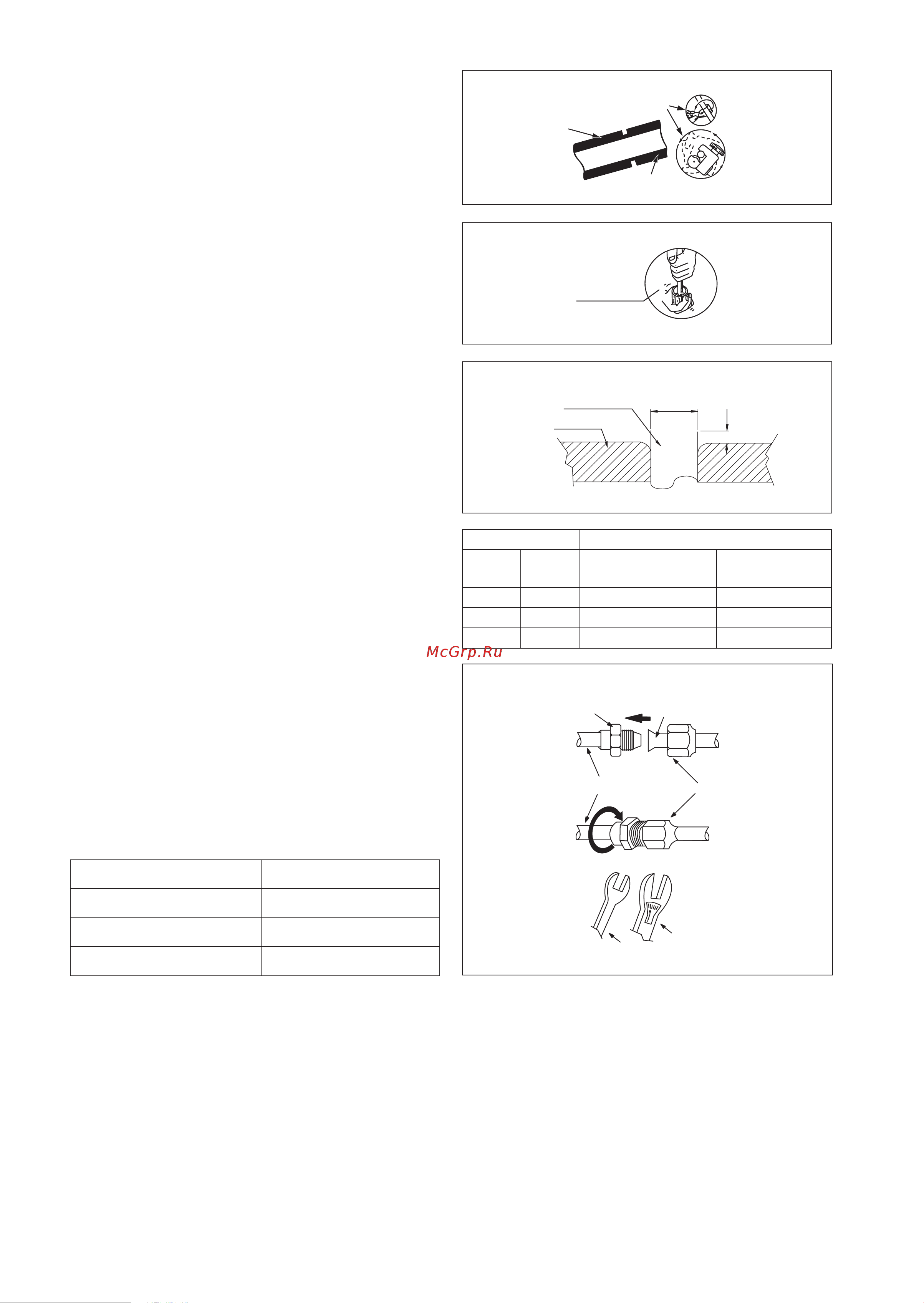

Piping Works And Flaring Technique
Do not use contaminated or damaged copper tubing. If
any piping, evaporator or condenser had been exposed or
had been opened for 15 seconds or more, the system must
be vacuumed. Generally do not remove plastic, rubber
plugs and brass nuts from the valves, fi ttings, tubing and
coils until it is ready to connect suction or liquid line into
valves or fi ttings.
If any brazing work is required, ensure that nitrogen gas
is passed through coil and joints while the brazing work
is being done. This will eliminate soot formation on the
inside wall of copper tubings.
Cut the pipe stages by stages, advancing the blade of pipe
cutter slowly. Extra force and a deep cut will cause more
distortion of pipe and therefore extra burr. See Figure A.
Remove burrs from cut edges of the pipes with remover. See
Figure B. Hold the pipe on top position and burr remover
at lower position to prevent metal chips from entering the
pipe. This will avoid unevenness on the fl are faces which
will cause gas leak.
Insert the fl are nuts, mounted on the connection parts of
both the indoor unit and outdoor unit, into the copper
pipes.
The exact length of pipe protruding from the top surface
of the swaging block is determined by the fl aring tool. See
Figure C.
Fix the pipe fi rmly on the swaging block. Match the centers
of both the swaging block and the fl aring punch, then
tighten the fl aring punch fully.
Piping Connection To The Units
Align the center of the piping and tighten the fl are nut
suffi ciently with fi ngers. See Figure D.
Finally, tighten the fl are nut with torque wrench until the
wrench clicks.
When tightening the fl are nut with the torque wrench,
ensure that the tightening direction follows the arrow
indicated on the wrench.
The refrigerant pipe connection are insulated by closed
cell polyurethane.
•
•
•
•
•
•
•
•
•
•
•
1/4t
Cutting Copper Tube
Copper Tube
Swaging Block
Remove Burr
Copper Tube
Figure A
D
A
Pipe Size mm/(in) Torque Nm/(ft-Ib)
6.35 (1/4") 18 (13.3)
12.70 (1/2") 55 (40.6)
15.88 (5/8") 65 (48.0)
Flared Tube
Flare Joint
Flare Nut
Indoor Piping
Torque Wrench
Spanar
Ø Tube, D A (mm)
Inch mm Imperial
(Wing-nut Type)
Rigid
(Clutch Type)
1/4" 6.35 1.3 0.7
1/2" 12.70 1.9 1.3
5/8" 15.88 2.2 1.7
Figure B
Figure C
Figure D
1-EN-IM 5WMJ-0811(0)Daikin.indd 81-EN-IM 5WMJ-0811(0)Daikin.indd 8 10/18/11 5:15:31 PM10/18/11 5:15:31 PM
