• Split Sky Air • Indoor Units 4

• Indoor Units • R-410A • FCQ-DAV3B

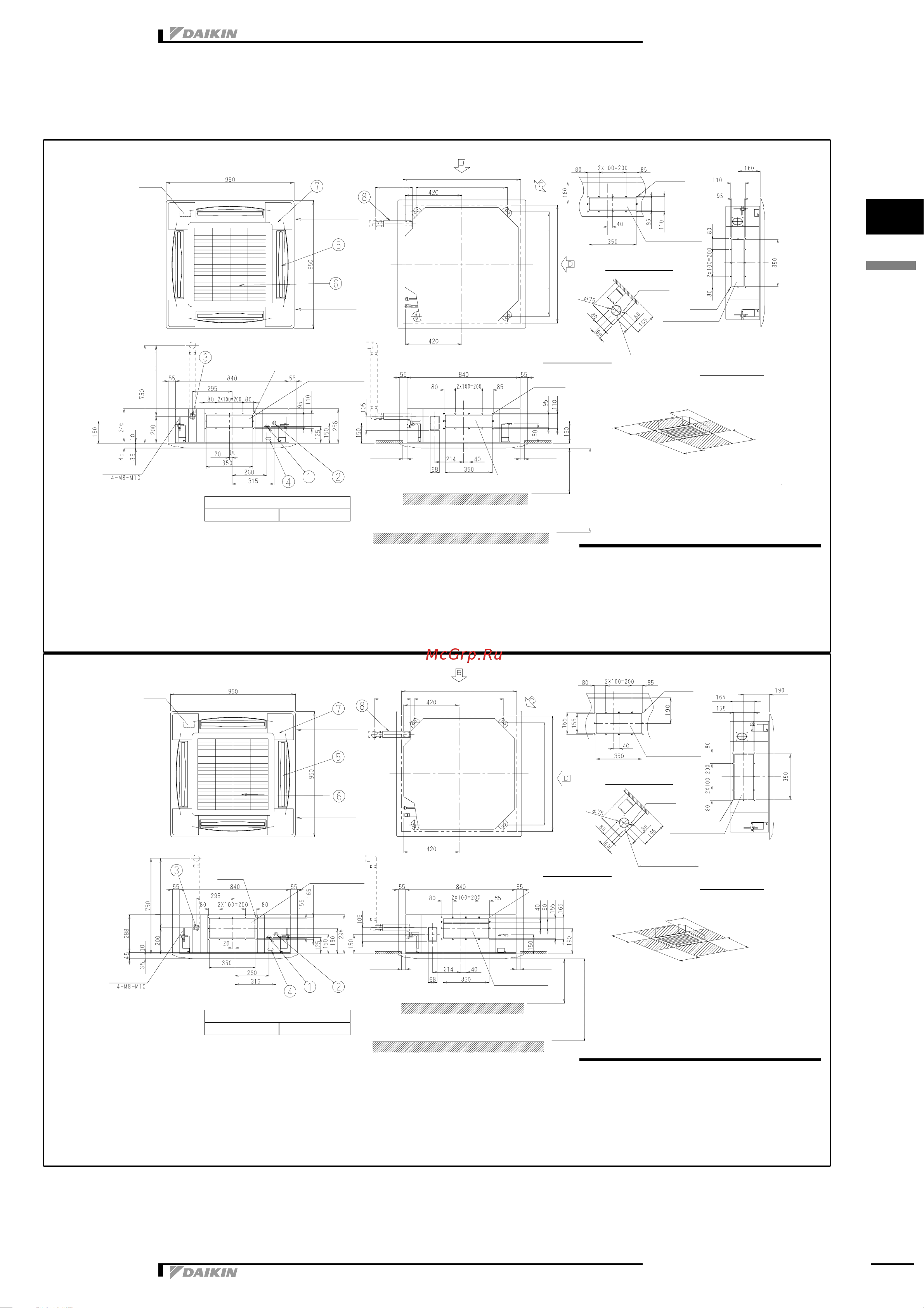

4 Dimensional drawing & centre of gravity

4 - 1 Dimensional drawing

3D033593

FCQ71D

B Arrow view

780 (Suspension position)

860∼890 (Ceiling opening) (Note 4)

Note:

1. Sticking location for manufacture’ s label

Manufacture’ s label for indoor unit: on the bell mouth inside suction

grille.

Manufacture’ s label for decoration panel: on the inner frame inside

suction grille.

2. In case of using an infrared remote control, this position will be a signal

receiver.

Refer to the drawing of infrared remote control in detail

1 Liquid pipe connection J9.5 Flare connection

2 Gas pipe connectionJ15.9 Flare connection

3 Drain pipe connection VP25 (O.D. J 32)

4 Power supply connection / wiring / remote control connection

5 Air outlet

6 Air suction grille

7 Corner decoration cover

8 Drain hose (option) O.D. J32 (outlet)

* When the discharge grill is closed, the required

space is 200mm or more

860∼910 (Ceiling opening) (Note 4)

Adjustable(0∼550)

Suspension bolt

1500 or more

(Required space)

1500 mm or more *

D Arrow view

Branch duct connection

Note 2

300 or less

3. When it may exceed 30°C and RH 80% in the ceiling or fresh air is

inducted into the ceiling, an additional insulation (Thickness 10mm or

more of glasswool or polyethylene form) is required.

4. Though the installation is acceptable up to maximum of 910mm

square ceiling opening, keep the clearance of 35mm or less between

the main unit and the ceiling opening so that the panel overlap

allowance can be ensured.

Branch duct connection

12-M4 Hole

C Arrow view

Required space

Decoration panel

BYCP125DJW1 White 10Y 9/0.5

Pipe connection side

Drain connection

side

4-M4 Hole

12-M4 Hole

From the floor side 2500 or more

For height installation

(Note 4)

35 or less

12-M4 Hole

35 or less

Branch duct

connection

12-M4 Hole

680 Suspension position

Outdoor air intake (direct connection)

3D048825

FCQ100∼140D

B Arrow view

780 (Suspension position)

860∼890 (Ceiling opening) (Note 4)

Note:

1. Sticking location for manufacture’ s label

Manufacture’ s label for indoor unit: on the bell mouth inside suction

grille.

Manufacture’ s label for decoration panel: on the inner frame inside

suction grille.

2. In case of using an infrared remote control, this position will be a signal

receiver.

Refer to the drawing of infrared remote control in detail

1 Liquid pipe connection J9.5 Flare connection

2 Gas pipe connectionJ15.9 Flare connection

3 Drain pipe connection VP25 (O.D. J 32)

4 Power supply connection / wiring / remote control connection

5 Air outlet

6 Air suction grille

7 Corner decoration cover

8 Drain hose (option) O.D. J32 (outlet)

* When the discharge grill is closed, the required

space is 200mm or more

860∼910 (Ceiling opening) (Note 4)

Adjustable(0∼550)

Suspension bolt

1500 or more

(Required space)

1500 mm or more *

D Arrow view

Branch duct connection

Note 2

300 or less

3. When it may exceed 30°C and RH 80% in the ceiling or fresh air is

inducted into the ceiling, an additional insulation (Thickness 10mm or

more of glasswool or polyethylene form) is required.

4. Though the installation is acceptable up to maximum of 910mm

square ceiling opening, keep the clearance of 35mm or less between

the main unit and the ceiling opening so that the panel overlap

allowance can be ensured.

Branch duct connection

12-M4 Hole

C Arrow view

Required space

Decoration panel

BYCP125DJW1 White 10Y 9/0.5

Pipe connection side

Drain connection

side

4-M4 Hole

12-M4 Hole

From the floor side 2500 or more

For height installation

(Note 4)

35 or less

12-M4 Hole

35 or less

Branch duct

connection

12-M4 Hole

680 Suspension position

Outdoor air intake (direct connection)
