Installation and operating instructions
10
Daikin Altherma EHS(X/H)
Daikin Altherma integrated solar unit
008.1441399_02 – 01/2021 – EN
3 x Product description
3 Product description
3.1 Design and components
3.1.1 Top of unit
1 Solar - flow (1" IG)
2 Cold water flow (1" AG)
3 Hot water flow (1" AG)
4 Heating flow (1" AG)*
5 Heating return (1" AG)*
6 Circulation pump
7 Safety-pressure relief valve (heating circuit)
8 Automatic vent
17 Fill level indicator (tank water)
18 Connection for electrical Backup-Heater EKBUxx (R 1½" IG)
(Accessory)
30 Plate heat exchanger (PWT)
31 Connection coolant fluid line
Daikin Altherma EHS(X/H)(B)04P30B/08PxxB: Cu Ø 6,4 mm
(1/4"),
Daikin Altherma EHS(X/H)(B)16P50B: Cu Ø 9.5 mm (3/8")
32 Connection to coolant gas line
Cu Ø 15,9 mm (5/8")
34 Ball cock (heating circuit)*
35 Combined filling and draining valve (heating circuit)
37 Storage tank temperature sensor t
DHW1
and t
DHW2
38 Connection diaphragm expansion vessel
39 Controller housing with elect. terminal strip
3UVB1
3-way diverter valve (internal heat generator circuit)
3UV DHW
3-way diverter valve (hot water / heating)
DS Pressure sensor
FLS (t
R1
/ V1)
Return flow temperature and flow sensor
t
R2
Return flow temperature sensor
t
V1
Inflow temperature sensor
t
V, BH
Flow temperature sensor Backup-Heater
Safety devices
Observe tightening torque!
AG Male thread
IG Female thread
* Ball cock (1" IG) is supplied with the equipment

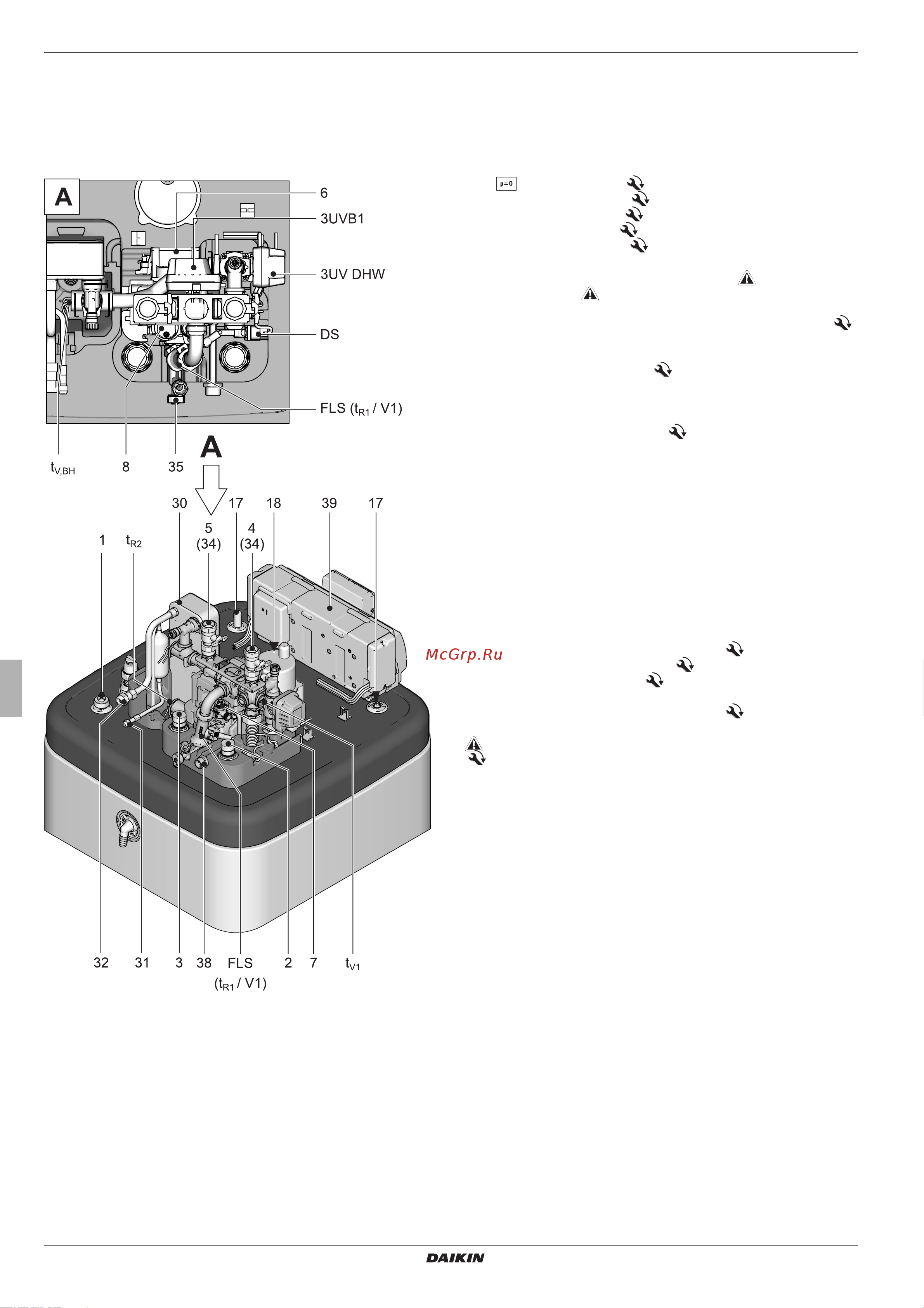

Fig. 3-1 Structure and components Daikin Altherma EHS(X/H)
(top of unit)
