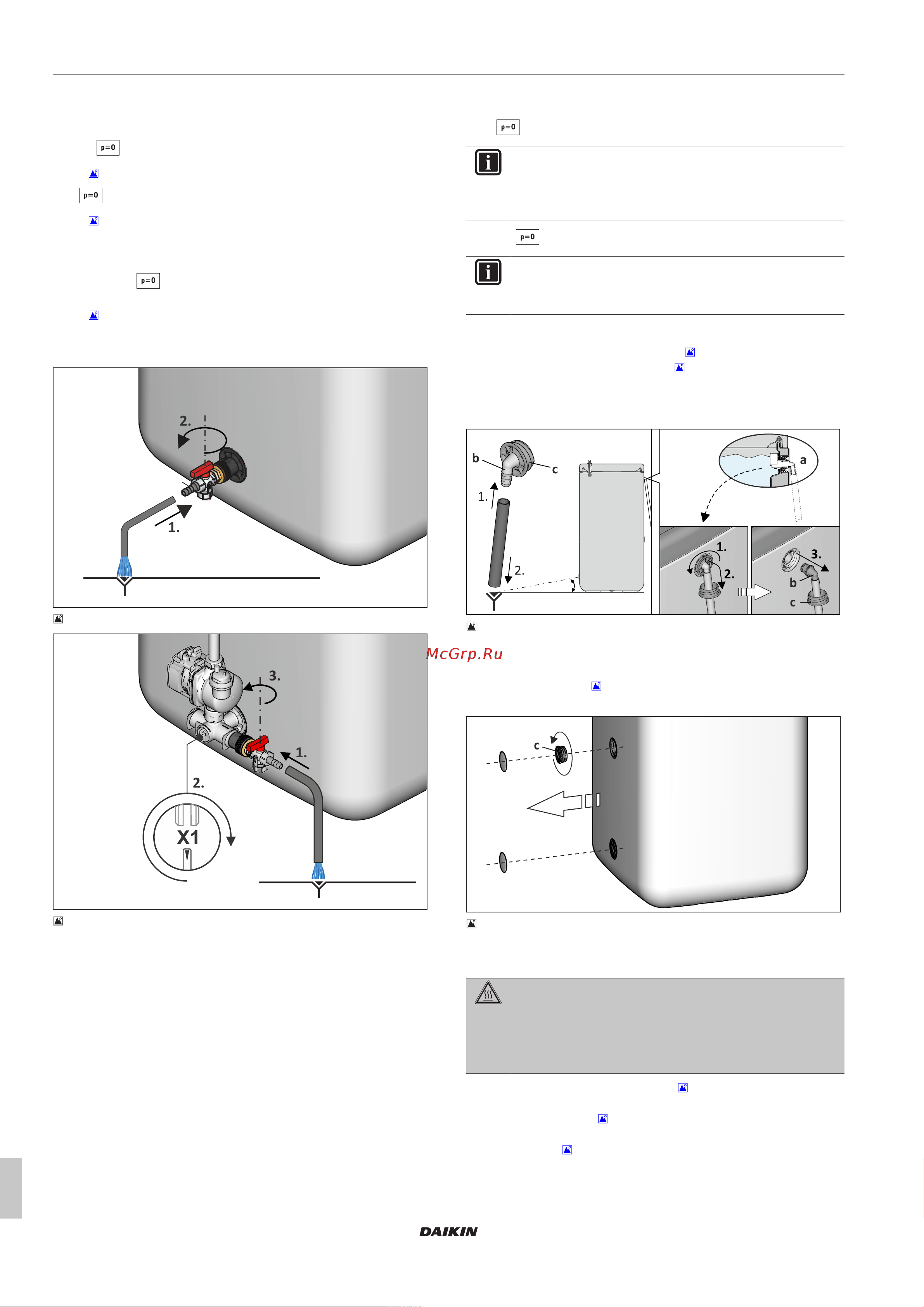

5 Taking out of service
Installation and operating manual
18
EKHW(D/C/P)(300/500)(P)B
Daikin Altherma ST (Hot water storage tank)
008.1633099_00 – 06/2020
5.2.1 With pre-mounted KFE filling connection
1 Connect the drain hose to the KFE filling connection
▪ no solar system connected
(" 5‒1 Draining process(1)"[418])
▪ solar system connected
(" 5‒2 Draining process(2)"[418])
▪ and to a waste water drainage point which is at least at ground
level.
2 Only with solar system: Adjust the valve insert X1 on the
connecting angle so that the path to the drain hose is opened
(" 5‒2 Draining process(2)"[418]).
3 Open the valve of the KFE filling connection and drain the
water out of the storage tank.
5‒1 Draining process(1)
5‒2 Draining process(2)
5.2.2 With subsequently fitted KFE filling
connection
1 Install the KFE filling connection (accessory KFE BA)
subsequently.
2 Drain the storage tank content as described in "5.2.1With pre-
mounted KFE filling connection"[418].
5.2.3 Without KFE filling connection
With solar system
INFORMATION
Draining possible only with KFE filling connection
(accessory KFE BA) (see "5.2.1 With pre-mounted KFE
filling connection"[418])
Without solar system
INFORMATION
Draining with KFE filling connection (accessory KFE
BA) is recommended.
Alternative:
1 Remove hose connection piece (" 5‒3 Work step 1" [4 18],
item b) from safety overflow (" 5‒3 Work step 1" [4 18],
item a). Keep care that the connected drain hose keeps
connected to an adequately dimensioned waste water
installation.
5‒3 Work step1
2 Remove the cover plate from the filling and emptying fitting.
3 Remove the cover plate from the handle and unscrew the
threaded piece (" 5‒4 Working steps 2 + 3" [4 18], item c)
from the storage tank container.
5‒4 Working steps2 + 3
4 Place a suitable collection trough beneath the filling and
emptying fitting.
DANGER: RISK OF BURNING/SCALDING
Storage water will flow out in a surge as soon as the
sealing plug is removed.
There is no valve and no non-return flap on the filling and
draining connection.
5 Unscrew the threaded piece (" 5‒5 Working steps 4 +
5" [4 19], item c) at the filling and draining connection, and
remove the plug (" 5‒5 Working steps 4 + 5"[419], itemd)
and immediately screw in the pre-assembled drain hose
connector (" 5‒5 Working steps 4 + 5" [4 19], item b) into
the filling and draining connection again.
