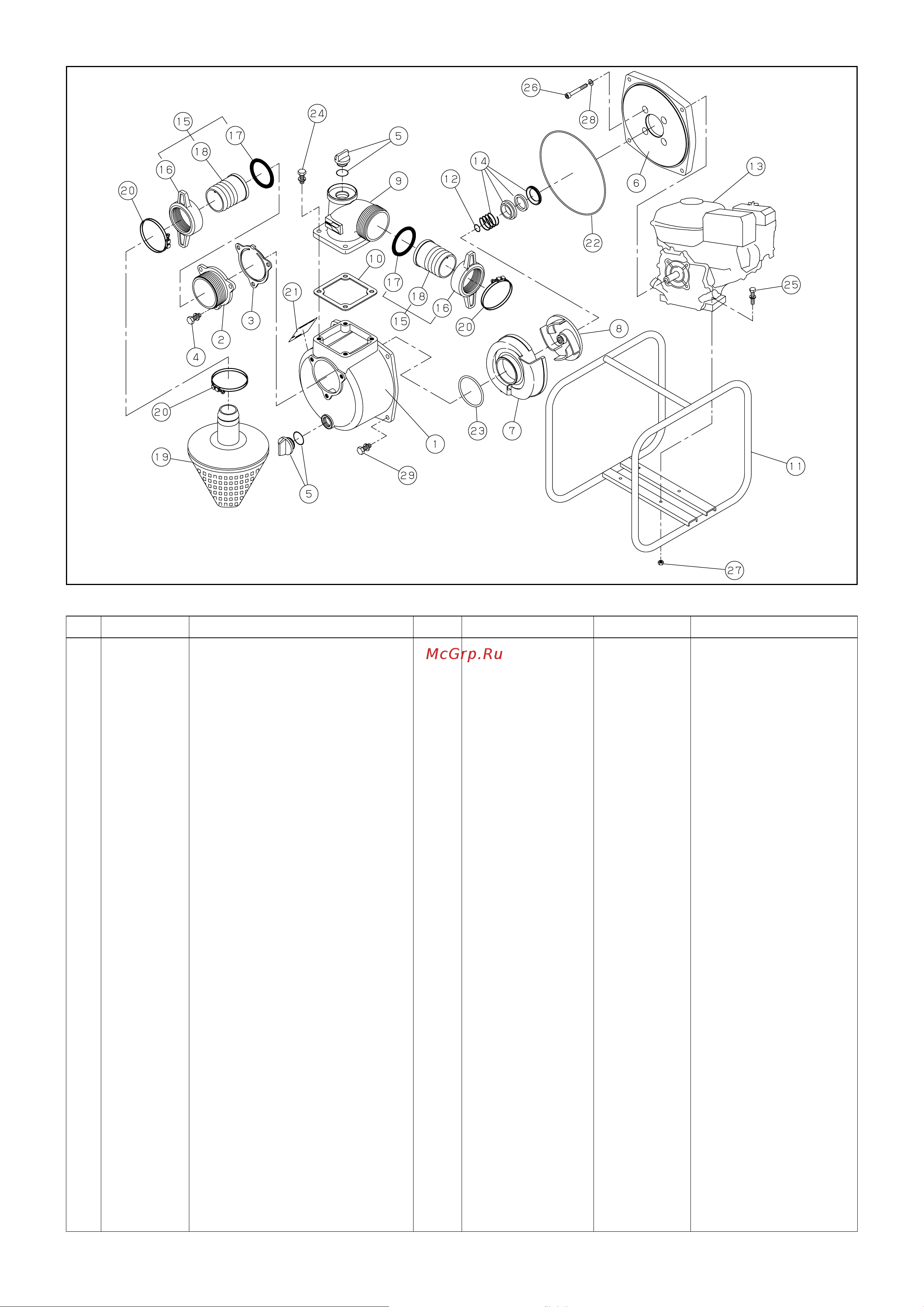

Koshin SE-50X Взрывсхема онлайн

№ PARTS CODE PARTS　NAME QTY MATERIAL SIZE REMARKS

1 012019501 PUMP CASING 1 ADC 4,200

2 011266203 SUCTION FLANGE 1 ADC 880

3 011266501 CHECK VALVE 1 NBR 460

4 743119045 HEXAGON BOLT 3 SWRM M8X20 110

5 011807802 20A PLUG SET 2 150

6 011257905 FLANGE BRACKET 1 ADC 3,000

7 011464001 VOLUTE CASING 1 FC 3,500

8 011353203 IMPELLER 1 FC 2,000

9 011055605 DELIVERY FLANGE 1 ADC 2,000

10 011054102 DELIVERY FLANGE PACKING 1 CR 110

11 011745003 BASE SET 1 3,200

12 011046601 IMPELLER ADJUSTING WASHER 3 BSP 110

13 012027301 ENGINE 1 -

14 012005801 MECHANICAL SEAL 1 φ 18 820

15 011702603 COUPLING SET 2 ABS 580

16 011339002 COUPLING 2 ABS 290

17 011339101 COUPLING PACKING 2 NBR 110

18 011035605 HOSE NIPPLE 2 ABS 260

19 011815901 STRAINER SET 1 PP 490

20 940019060 HOSE BAND 3 φ 60 120

21 011697402 NAME PLATE 1 110

22 011501401 O-RING 1 NBR 1517-42.5 160

23 011279201 O-RING 1 NBR P54 110

24 743119047 HEXAGON BOLT 4 SWRM M8X25 110

25 743119051 HEXAGON BOLT 4 SWRM M8X35 110

26 734532076 HEXAGON SOCKET BOLT 4 SCM M8X60 110

27 827419008 HEXAGON NUT 4 SWRM M8 110

28 854255008 SEAL WASHER 4 φ 8 110

29 743119046 HEXAGON BOLT 4 SWRM M8X22 110

011697302 PACKING CASE 1 2,210

◆ Bare engine can not be supplied

DWG No.066853306 MODEL:SE-50X (EY153DC) FORM:SE-50X-BDG-1

SE-50X
