Installation manual
7
EKCBX/H008BCV3
Unit for air to water heat pump system
4P348533-1A – 2013.04

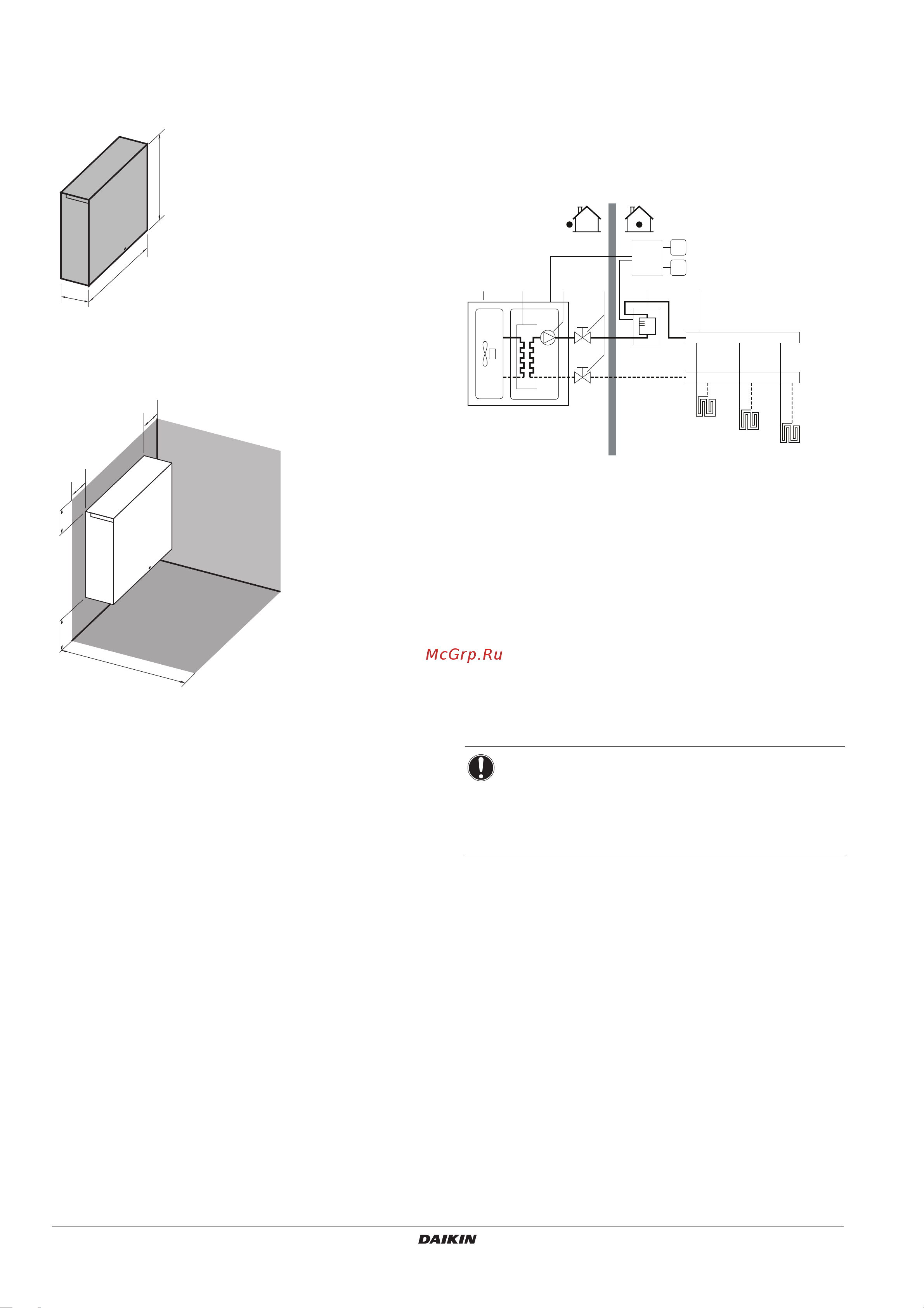

7. DIMENSIONS AND SERVICE SPACE
7.1. Dimensions of the indoor unit
Unit of measurement: mm
7.2. Service space of the indoor unit
Unit of measurement: mm
Mentioned service space dimensions are also required for correct
operation of the unit.
8. TYPICAL APPLICATION EXAMPLES
The application examples given below are for illustration purposes
only.
8.1. Application 1
Space heating only application with a room thermostat connected to
the unit.
1 Outdoor unit
2 Heat exchanger
3 Pump
4 Shut-off valve
5 Heater kit (optional)
6 Collector (field supply)
FHL1...3 Floor heating loop (field supply)
C Control box
T Room thermostat
I User interface
Unit operation and space heating
When a room thermostat (T) is connected to the unit and when there
is a heating request from the room thermostat, the unit will start
operating to achieve the target leaving water temperature as set on
the user interface.
When the room temperature is above the thermostat set point, the
unit will stop operating.
390
100
412
50
50
10050
600
NOTICE
Make sure to connect the thermostat wires to the correct
terminals (see "Connection of the thermostat cable" on
page 19) and to configure the DIP switch toggle switches
correctly (see "12.2. Room thermostat installation
configuration" on page 21).
FHL1
FHL2
FHL3
T
I
C
6
432 51
