IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-35
C
D
E
F
G
H
I
J
L
M
A
B
PG

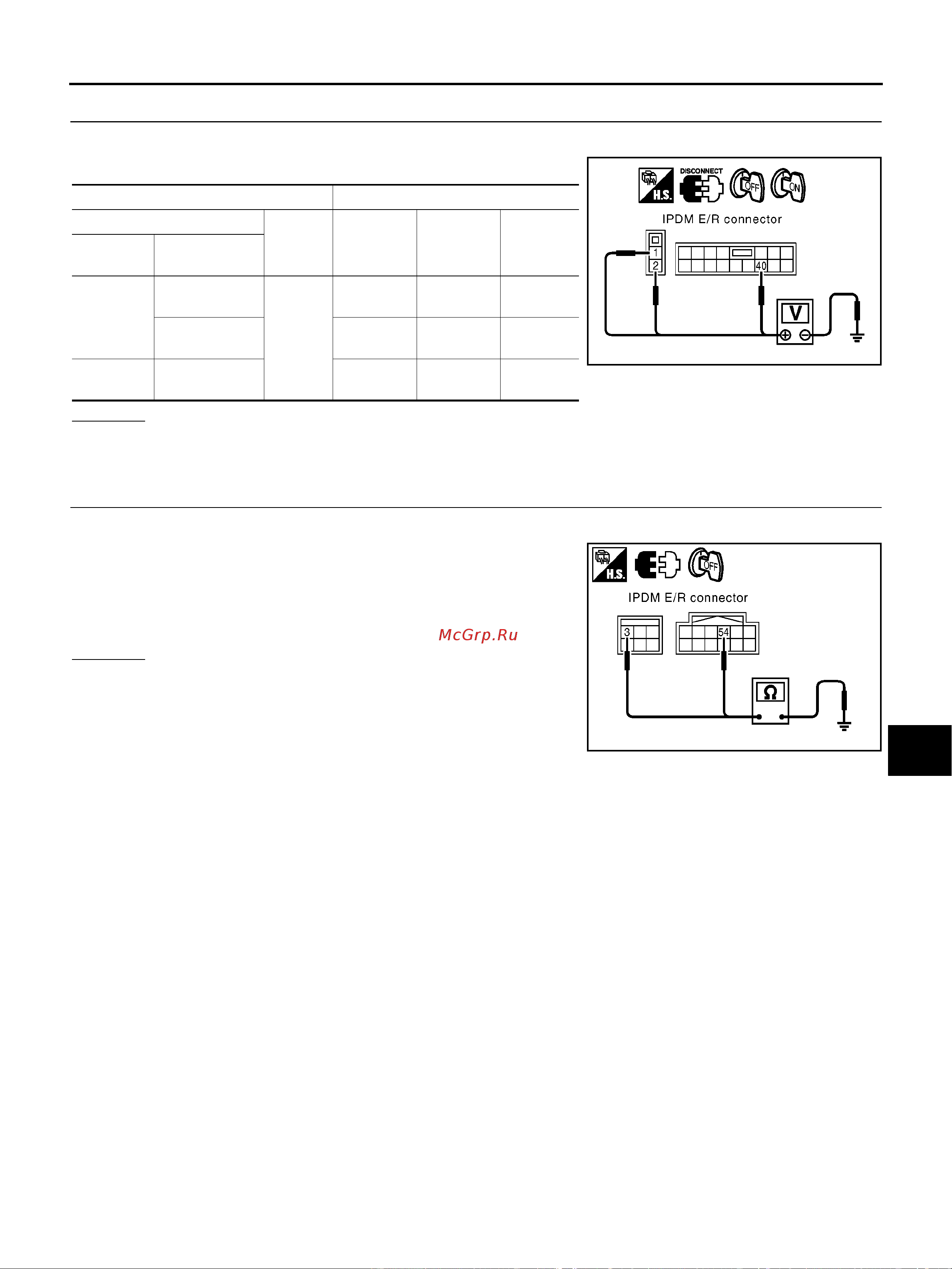

2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect IPDM E/R harness connector.
2. Check voltage between IPDM E/R and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between fuse, fusible link and IPDM E/R.
3. CHECK GROUND CIRCUIT
1. Disconnect IPDM E/R harness connectors.
2. Check continuity between IPDM E/R harness connectors E11
terminal 3 (B), E12 terminal 54 (B) and ground.
OK or NG
OK >> INSPECTION END.
NG >> Repair harness for ground circuit.
Terminals Ignition switch position
(+)
(-) OFF ACC ON
Connector
Terminal
(wire color)
E9
1(R)
Ground
Battery
voltage
Battery
voltage
Battery
voltage
2(G)
Battery
voltage
Battery
voltage
Battery
voltage
E7
40
(O)
0V 0V
Battery
voltage
MKIB0534E
3 (B) – Ground :Continuity should exist.
54 (B) – Ground :Continuity should exist.
MKIB1920E
