Daikin RXYTQ14U7YF [26/64] Installation

6 Installation

Installer and user reference guide

RXYTQ8~16U7YF

VRV IV+ heat pump for high ambient temperatures

4P561157-1 – 2018.09

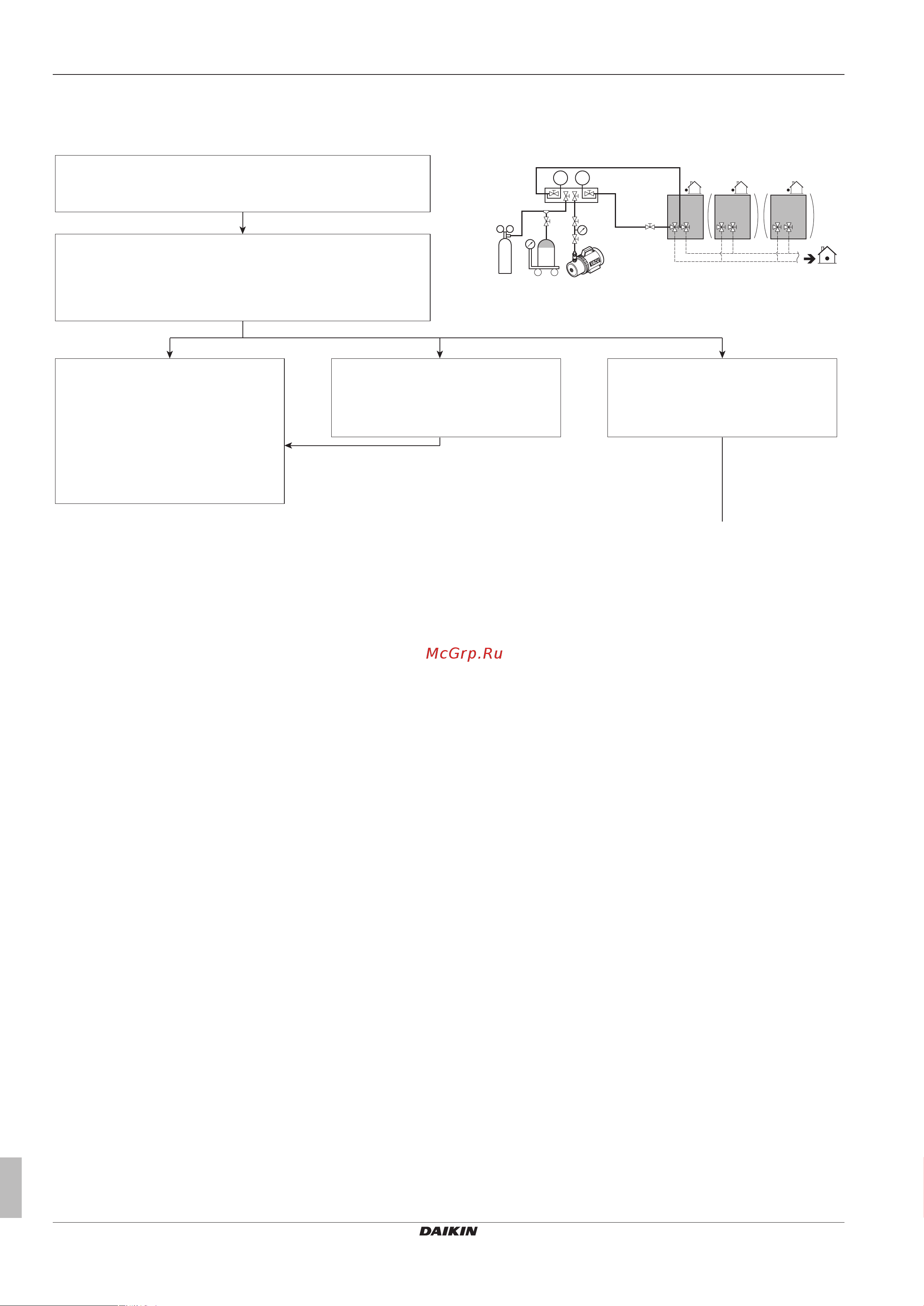

6.7.4 To charge refrigerant: Flow chart

For more information, see "6.7.5To charge refrigerant"on page27.

Pre-charging refrigerant

Step 1

Calculate additional refrigerant charge amount: R (kg)

Refrigerant overcharge happened, recover

refrigerant to reach R=Q

Step 2

• Open valves C and B to the liquid line

• Execute pre-charging amount: Q (kg)

Step 3a

• Close valves C and B

• Charging is finished

• Fill in the amount on the additional

refrigerant charge label

• Go to test run

Step 3b

Close valves C and B

R=Q R>QR<Q

Continued on next page >>

R410AN2
