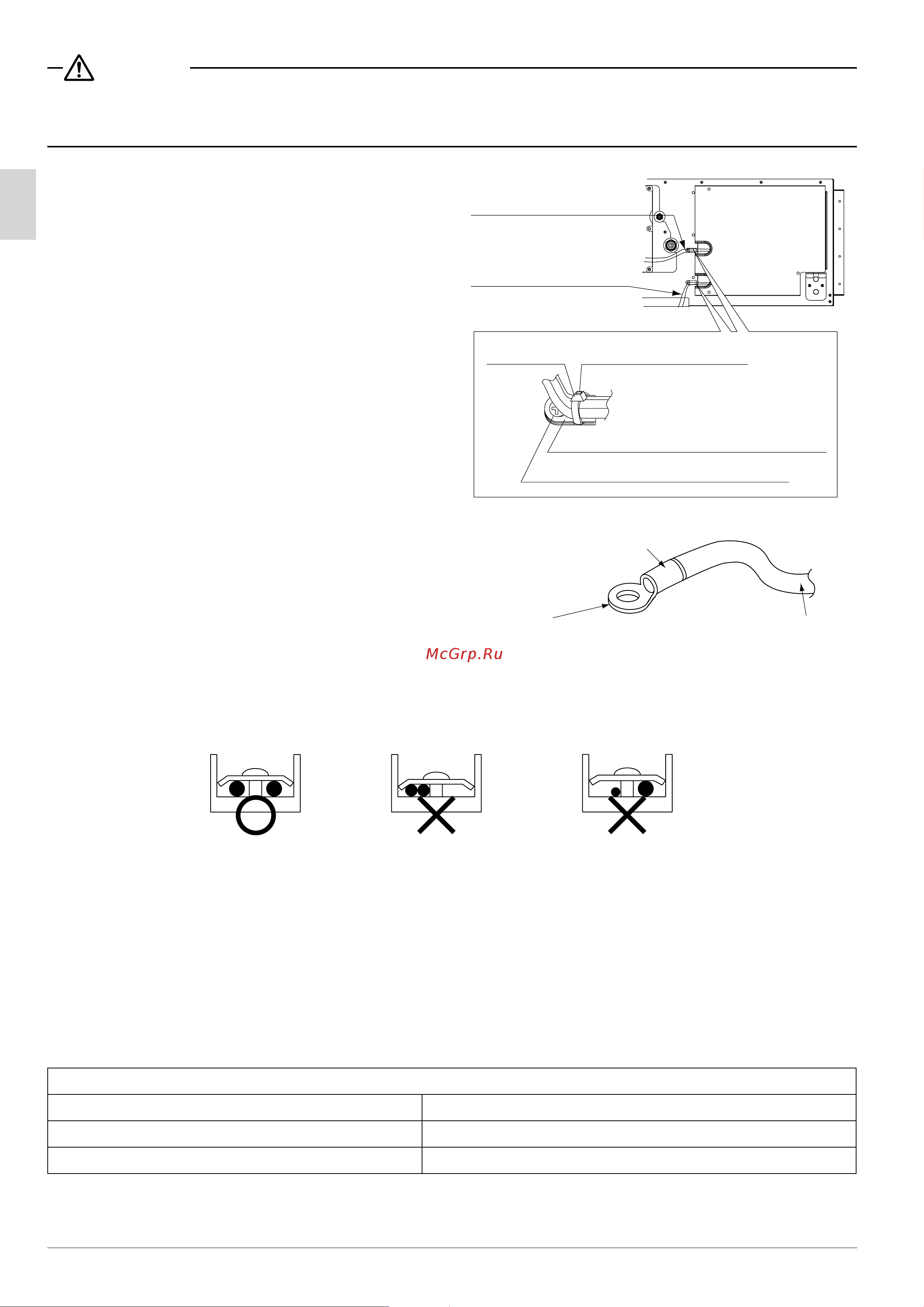

English
19
CAUTION
• After all the wiring connections are done, fill in any gaps in the through holes with putty or insulation
(procured locally) to prevent small animals and insects from entering the unit from outside. (If any do get in,
they
could cause short circuits in the control box.)
(5) Mount the provided wire fixing bracket (12) with
the wire fixing screw (13). Fix each wire with the
provided clamp (8).
Precautions to be taken for power supply wiring
Use a round crimp-style terminal for connection to the
power supply terminal block.
In case it cannot be used due to unavoidable reasons, be sure to observe the following instructions.
(Loose wiring and similar problems may result in abnormal heat build-up.)
• In wiring, make certain that prescribed wires are used, carry out complete connections, and fix the wires so
that external forces are not applied to the terminals.
• If the strand wire is used, do not solder it.
Tightening torque for the terminal screws.
• Use the correct screwdriver for
tightening the terminal screws. If
the blade of screwdriver is too small, the
head of the screw might be damaged, and the screw will not be properly tightened.
• If the terminal screws are tightened too hard, screws might be damaged.
Refer to the table below for the tightening torque of the terminal screws.
Tightening torque (N·m)
69.0 ot 08.0rellortnoc etomer rof kcolb lanimreT
44.1 ot 81.1stinu eht gniriw rof kcolb lanimreT
44.1 ot 81.1lanimret htraE
Wiring the units
Power supply wiring
Ground wiring
Remote controller
wiring
Fixing use
Wire fixing screw (13) (accessory)
Wire fixing bracket (12) (accessory)
Clamp (8) (accessory)
Electric wireRound crimp-style terminal
Attach insulation sleeve
Good Wrong Wrong
Connect wires of the
same gauge to both
side. (GOOD)
Do not connect wires
of the same gauge to
one side. (WRONG)
Do not connect wires
of different gauges.
(WRONG)
01_EN_3PN06583-10W.fm Page 18 Thursday, March 24, 2011 9:03 AM
