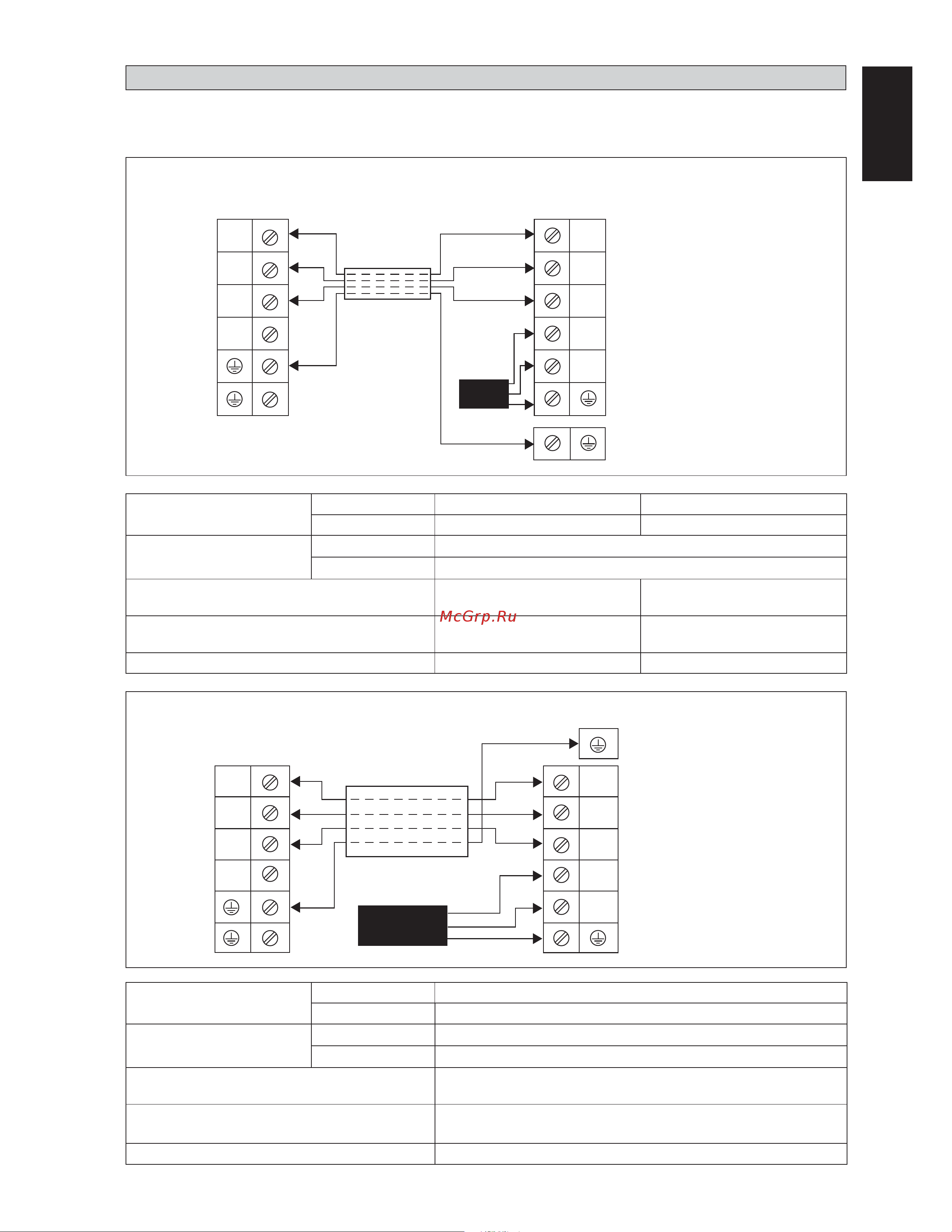

ELECTRICAL CONNECTION
FDM20JEVLK - RD20JEVLK
FDM25JEVLK - RD25JEVLK
IMPORTANT: * These values are for information only, they should be checked and selected to comply with the local and/or national
codes and regulations. They are also subjected to the type of installation and size of conductors.
** The appropriate voltage range should be checked with data label on the unit.
Model Indoor FDM20JEVLK FDM25JEVLK
Outdoor RD20JEVLK RD25JEVLK
Voltage range**
Indoor
220V/1Ph/60Hz+!
Outdoor
220V/1Ph/60Hz+!
Power supply cable size* mm
2
Number of conductors
2.5
3
2.5
3
Interconnection cable size* mm
2
Number of conductors
1.0
4
1.0
4
Recommended time delay fuse* A 20 25
Model Indoor FDM30JEVLK
Outdoor RD30JEVLK
Voltage range**
Indoor
220V/1Ph/60Hz+!
Outdoor
220V/1Ph/60Hz+!
Power supply cable size* mm
2
Number of conductors
4.0
3
Interconnection cable size* mm
2
Number of conductors
2.5
4
Recommended time delay fuse* A 30
Power Supply Cable
Interconnection cable
Outdoor unit
Terminal Block
Indoor unit
Terminal Block
FDM30JEVLK - RD30JEVLK
COMP
L1
N1
L
Power Supply
Cable
Outdoor unit
Terminal Block
COMP
Interconnection
cable
Indoor unit
Terminal Block
L
N
N
N
N
N
L
COMP
L
N
N
L
COMP
There must be an all pole
disconnection in the supply
mains with a contact separation
of at least 3mm.
!
There must be an all pole
disconnection in the supply
mains with a contact separation
of at least 3mm.
!
1 IM-CCC-0311(0)-DAIKIN (SASO).i13 13 6/9/11 10:07:39 AM
