English 41
9.12 Cable Connecting Diagram
The section area of cables selected by users must not be smaller than the specifi cations shown in the 1.
diagram. The signal wire between indoor and outdoor unit shall be installed in the shielded bushing, and
the unshielded twisted pair cable (UTP) shall be used, the cross sectional area of the cables must be
1.0mm².

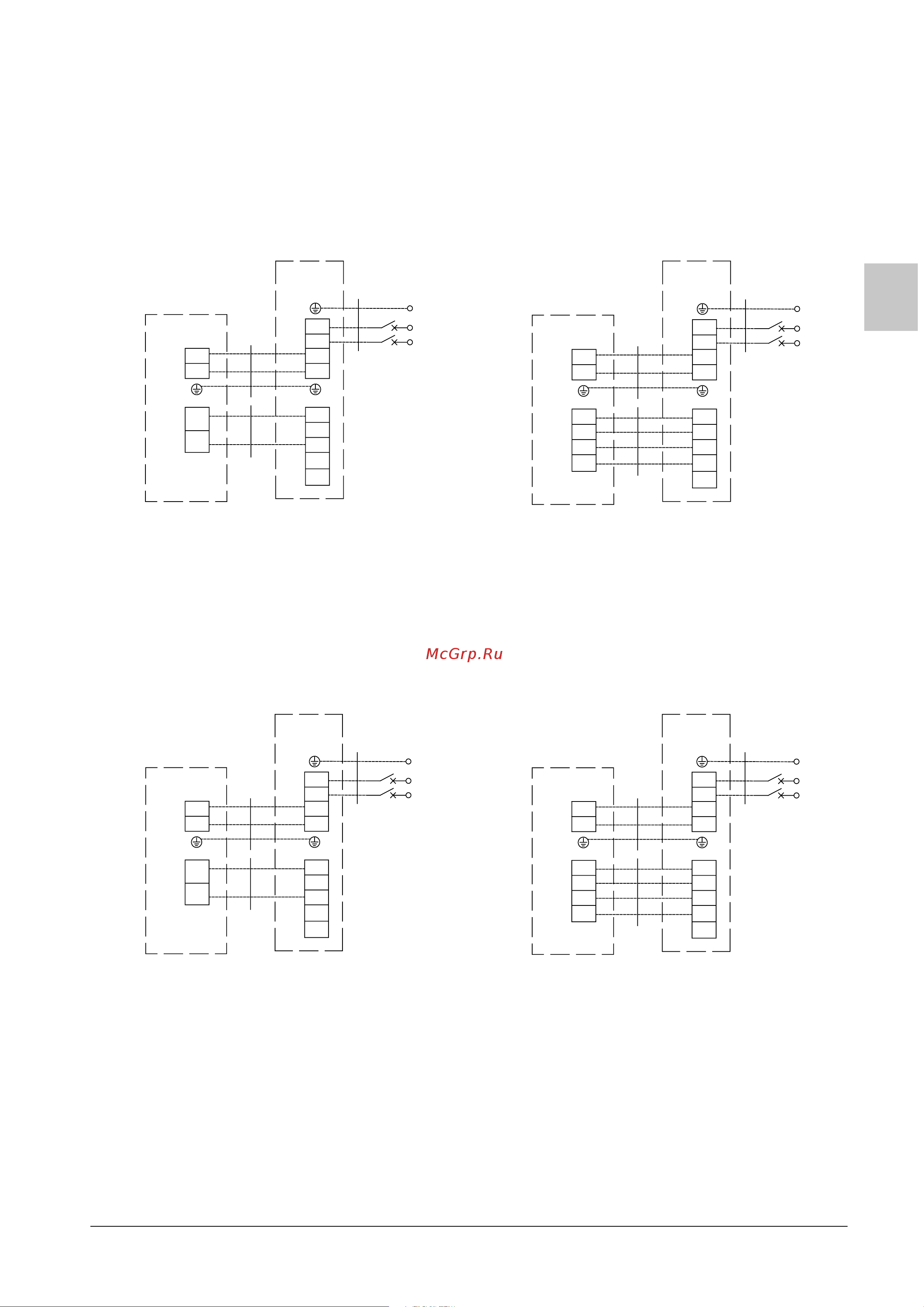

Schematic Diagram of Unit Line Connection:
R24PEVLK + FDM24PEVLK RY24PEVLK + FDYM24PEVLK
Outdoor Unit
L
N
L
(1)
(2)
(3)
C
R
Y
O
B
N
L1
N1
L
N
breaker
PE
C
Y
Indoor Unit
(1)
(2)
(3)
C
R
Y
O
B
L
N
L1
N1
L
N
breaker
PE
Outdoor Unit
Indoor Unit
L
N
C
R
Y
O
POWER 220V ~ 60HZ
(1) Power Cord 3 × 4.0mm² (H07RN-F)
(2) Power Cord 3 × 2.5mm² (H07RN-F)
(3) Communication Cords 2 × 1.0mm² (H07RN-F)
Capability of Breaker: 25A
POWER 220V ~ 60HZ
(1) Power Cord 3 × 4.0mm² (H07RN-F)
(2) Power Cord 3 × 2.5mm² (H07RN-F)
(3) Communication Cords 4 × 1.0mm² (H07RN-F)
Capability of Breaker: 25A
R30PEVLK + FDM30PEVLK RY30PEVLK + FDYM30PEVLK
Outdoor Unit
L
N
L
(1)
(2)
(3)
C
R
Y
O
B
N
L1
N1
L
N
breaker
PE
C
Y
Indoor Unit
Outdoor Unit
L
N
L
(1)
(2)
(3)
C
R
Y
O
C
R
Y
O
B
N
L1
N1
L
N
breaker
PE
Indoor Unit
POWER 220V ~ 60HZ
(1) Power Cord 3 × 6.0mm² (H07RN-F)
(2) Power Cord 3 × 4.0mm² (H07RN-F)
(3) Communication Cords 2 × 1.0mm² (H07RN-F)
Capability of Breaker: 32A
POWER 220V ~ 60HZ
(1) Power Cord 3 × 6.0mm² (H07RN-F)
(2) Power Cord 3 × 4.0mm² (H07RN-F)
(3) Communication Cords 4 × 1.0mm² (H07RN-F)
Capability of Breaker: 32A
