GigaRAID (IT8212) ATA RAID Controller USER’S MANUAL

Define RAID

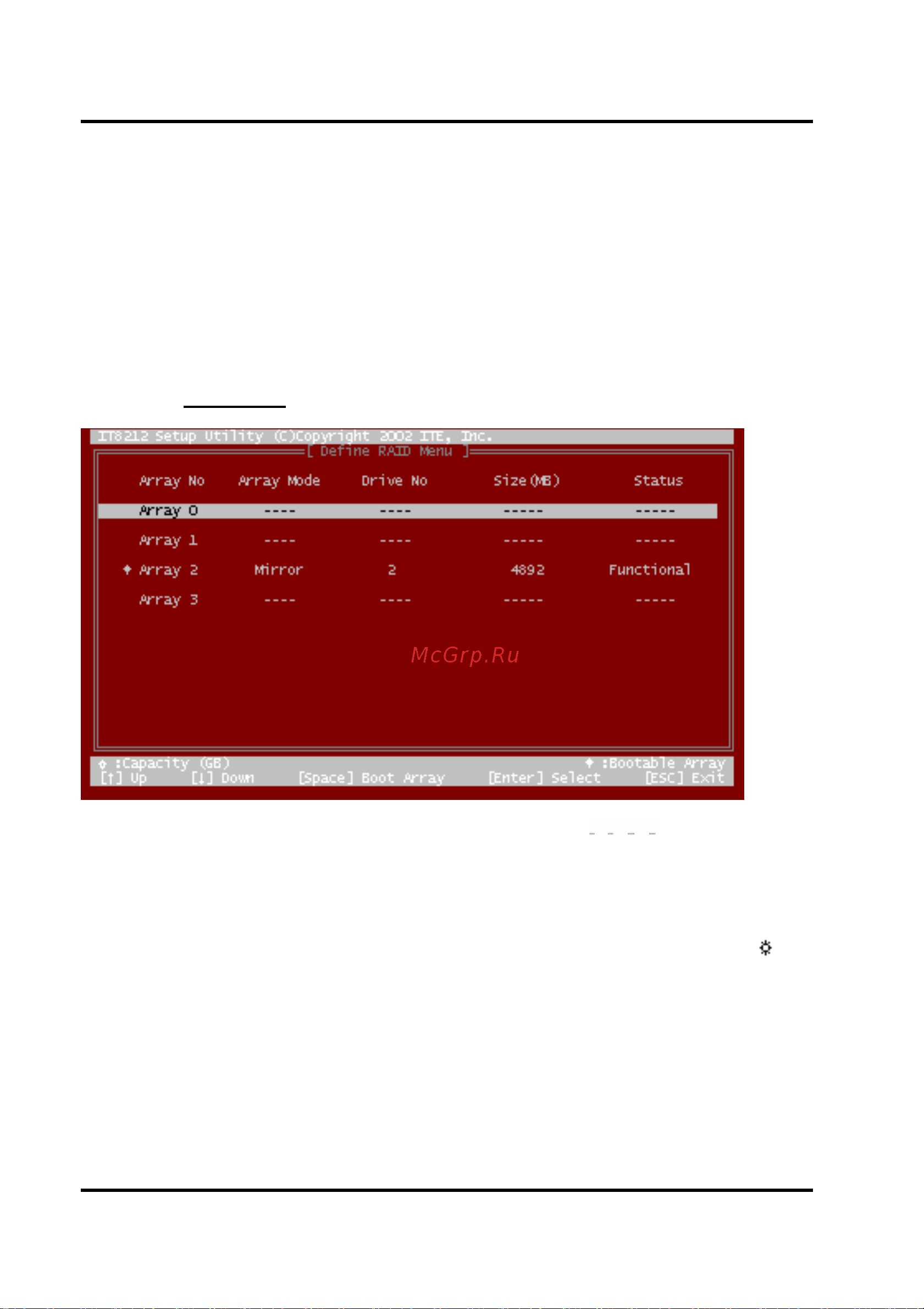

Click “2” on the Main Menu then you can enter the Define RAID Menu. Please use

arrow keys ↑ and ↓ to highlight the array number you want to define; use “space”

key to specify the bootable array if you like to boot your system from array attached

on GigaRAID (IT8212) ATA RAID Controller; and click the “Enter” key to select it and

enter the Define RAID Sub-Menu to create your array. If you want to quit and go

back to the Main Menu, please click the “Esc” key.

When an array is not assigned a RAID level, you will see “

” on the raw.

Column “Array Mode” shows the RAID level (Stripe, Mirror, Stripe + Mirror or JBOD)

assigned to the array. Column “Drive No” shows the number of hard drive included in

the array. Column “Size” shows the array’s total capacity. If there is a symbol

shown in front of “Size”, the capacity unit is gigabyte. Column “Status” shows array

status. You will see “Functional” if the array is operational and “Non-Functional” if the

array has lost its functionality.

Please highlight the array number you want to define, click the “Enter” key, then the

Define RAID Sub-Menu will appear and allow drive assignments to the array.
