Daikin RZQ140B7W1B [30/48] Dimensional drawing centre of gravity
![Daikin RZQ200B7W1B [30/48] Dimensional drawing centre of gravity](/views2/1794902/page30/bg1e.png)
• Outdoor Units • R410A • RZQ-B
• Split Sky Air • Outdoor Units
28
2
6

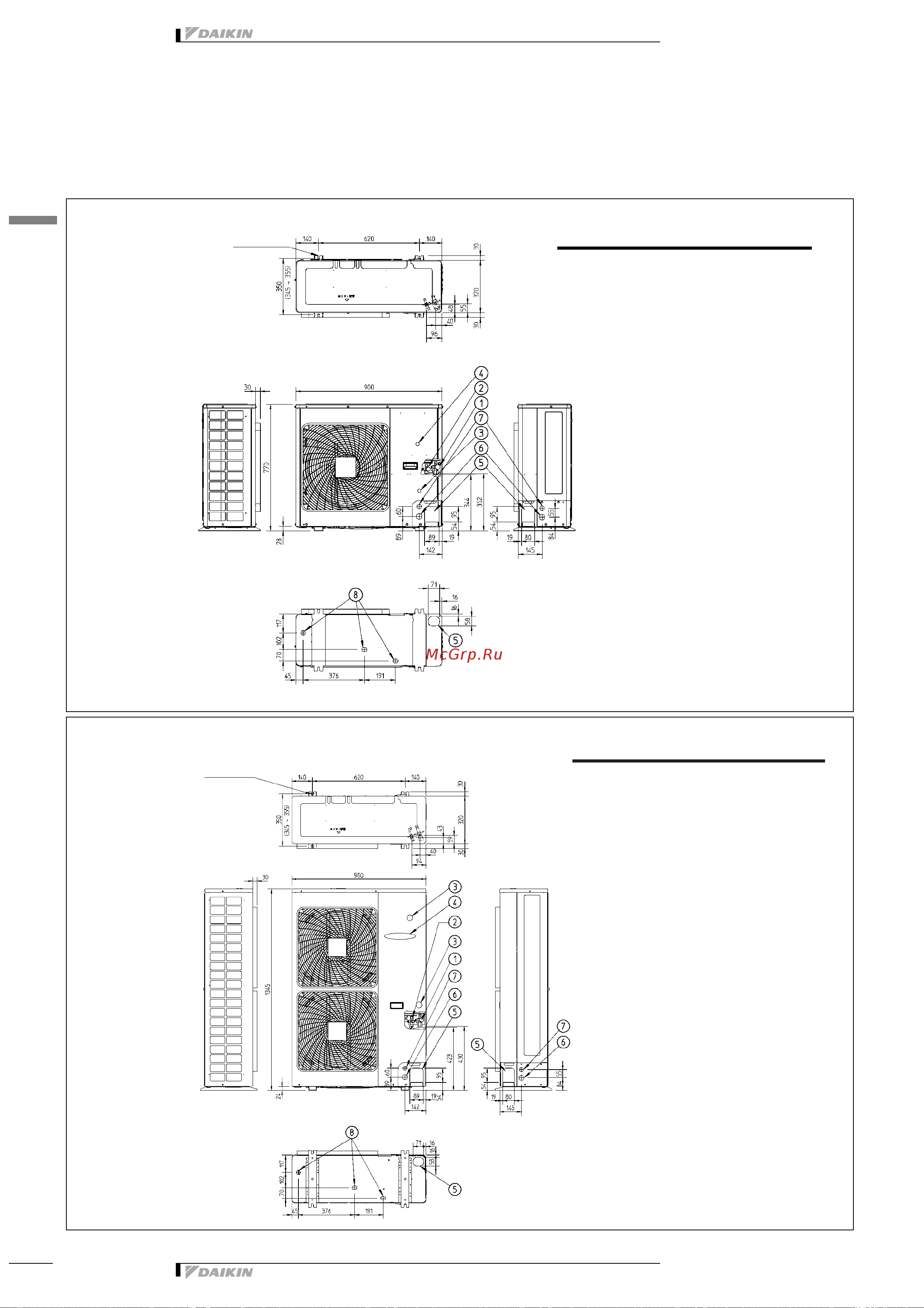

6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing
3TW25144-1A
unit (mm)
1 Gas pipe connection J15.9 flare
2 Liquid pipe connection - J9.5 flare
3 Service port (in the unit)
4 Grounding terminal M5 (in switch box)
5 Refrigerant piping intake
6 Power supply wiring intake (knock hole J34)
7 Control wiring intake (knock hole J27)
8 Drain outlet
RZQ71B7V3B
Hole for anchor bolt
4-M12
3TW26071-1
unit (mm)
1 Gas pipe connection J15.9 flare
2 Liquid pipe connection - J9.5 flare
3 Service port (in the unit) (2x)
4 Grounding terminal M5 (in switch box)
5 Refrigerant piping intake
6 Power supply wiring intake (knock hole J34)
7 Control wiring intake (knock hole J27)
8 Drain outlet
Hole for anchor bolt
4-M12
RZQ100-125-140B7V3B
