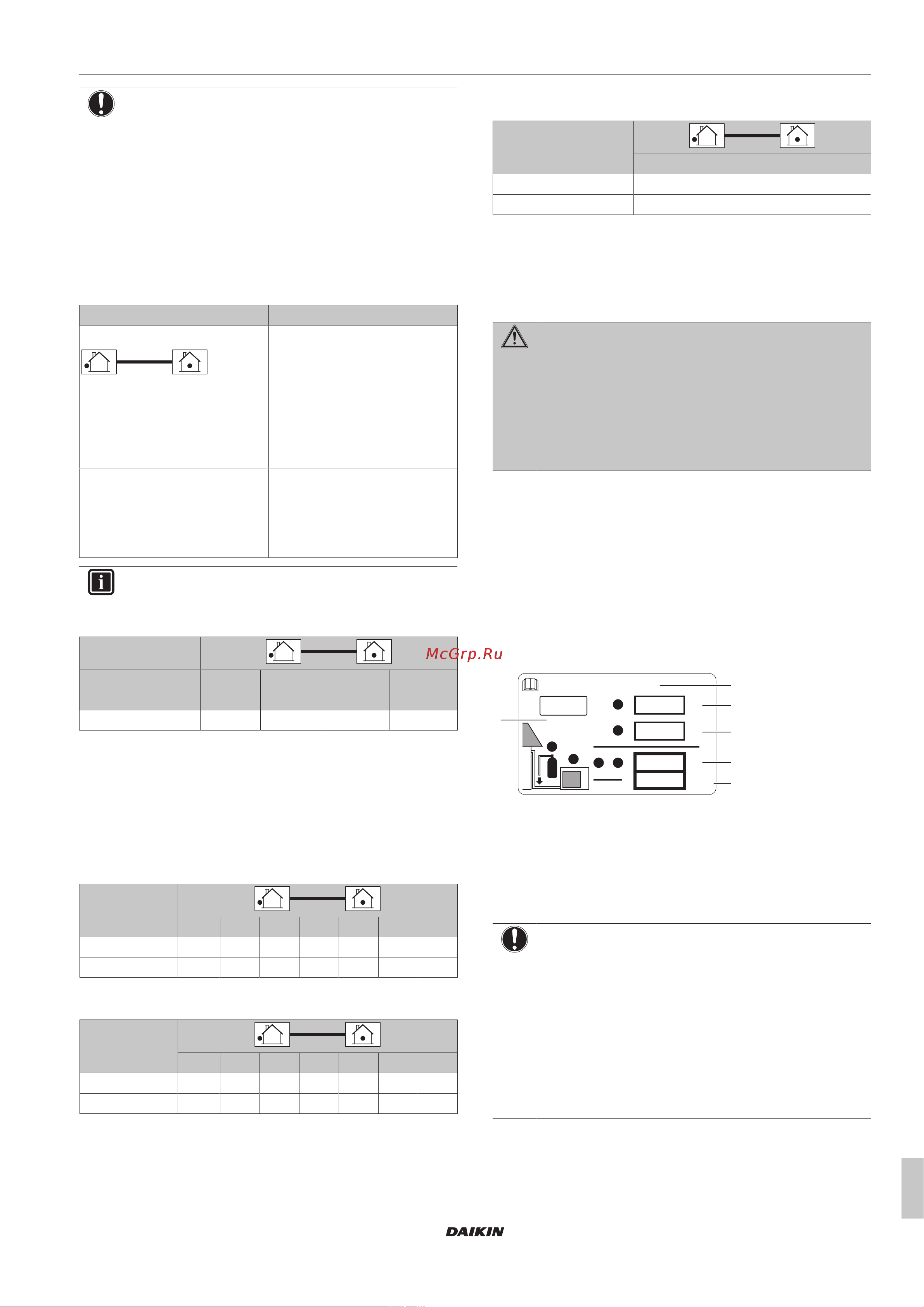

![Daikin RZQG140L7Y1L [7/16] To determine the complete recharge amount](/views2/1795075/page7/bg7.png)
4 Installation
Installation manual
7
RZQG71L9V1L + RZQG71~125L8Y1L + RZQG140L7Y1L
Split system air conditioners
4P473073-1A – 2019.04
NOTICE
Make sure to open the stop valves after installing the
refrigerant piping and performing vacuum drying. Running
the system with the stop valves closed may break the
compressor.
4.4 Charging refrigerant
4.4.1 To determine the additional refrigerant
amount
To determine if adding additional refrigerant is necessary
If Then
L1 ≤ chargeless length
L1 (m)
Chargeless length=
▪ 10m (size‑down)
▪ 30m (standard)
▪ 15m (size‑up)
You do not have to add
additional refrigerant.
L1 > chargeless length You must add additional
refrigerant.
For future servicing, encircle the
selected amount in the tables
below.
INFORMATION
Piping length is the largest one-way length of liquid piping.
To determine the additional refrigerant amount (R in kg)
L1 (m)
L1 (standard): 30~40m 40~50m 50~60m
(a)
60~75m
(a)
L1 (size-up): 15~20m 20~25m 25~30m
(a)
30~35m
(a)
R: 0.5kg 1.0kg 1.5kg 2.0kg
(a) Only for RZQG100~140.
4.4.2 To determine the complete recharge
amount
When piping length is <5 m, a complete recharge of the unit is
required.
To determine the complete recharge amount (kg) (in case of
standard liquid pipe size)
Model
L1 (m)
3~10 10~20 20~30 30~40 40~50 50~60 60~75
RZQG71 1.9 2.4 2.9 3.4 3.9 — —
RZQG100~140 3.0 3.5 4.0 4.5 5.0 5.5 6.0
To determine the complete recharge amount (kg) (in case of
size‑up liquid pipe size)
Model
L1 (m)
3~5 5~10 10~15 15~20 20~25 25~30 30~35
RZQG71 1.9 2.4 2.9 3.4 3.9 — —
RZQG100~140 3.0 3.5 4.0 4.5 5.0 5.5 6.0
To determine the complete recharge amount (kg) (in case of
size‑down liquid pipe size)
Model
L1 (m)
3~10
RZQG71 1.9
RZQG100~140 3.0
4.4.3 Charging refrigerant: Setup
See "4.3.1Checking refrigerant piping: Setup"on page6.
4.4.4 To charge additional refrigerant
WARNING
▪ Only use R410A as refrigerant. Other substances may
cause explosions and accidents.
▪ R410A contains fluorinated greenhouse gases. Its
global warming potential (GWP) value is 2087.5. Do
NOT vent these gases into the atmosphere.
▪ When charging refrigerant, always use protective
gloves and safety glasses.
Prerequisite: Before charging refrigerant, make sure the refrigerant
piping is connected and checked (leak test and vacuum drying).
1 Connect the refrigerant cylinder to both the service port of the
gas stop valve and the service port of the liquid stop valve.
2 Charge the additional refrigerant amount.
3 Open the stop valves.
4.4.5 To fix the fluorinated greenhouse gases
label
1 Fill in the label as follows:
b
Contains fluorinated greenhouse gases
2
1
1
1
2
2
kg
tCO
2
eq
GWP × kg
1000
=
=
+
kg
=
kg
=
GWP: XXX
RXXX
a
f
c
d
e
a If a multilingual fluorinated greenhouse gases label is
delivered with the unit (see accessories), peel off the
applicable language and stick it on top of a.
b Factory refrigerant charge: see unit name plate
c Additional refrigerant amount charged
d Total refrigerant charge
e Quantity of fluorinated greenhouse gases of the total
refrigerant charge expressed as tonnes CO
2
equivalent.
f GWP = Global warming potential
NOTICE
Applicable legislation on fluorinated greenhouse gases
requires that the refrigerant charge of the unit is indicated
both in weight and CO
2
equivalent.
Formula to calculate the quantity in CO
2
equivalent
tonnes: GWP value of the refrigerant × total refrigerant
charge [in kg] / 1000
Use the GWP value mentioned on the refrigerant charge
label. That GWP is based on the current legislation on
fluorinated greenhouse gases. The GWP mentioned in the
manual might be outdated.
2 Fix the label on the inside of the outdoor unit. There is a
dedicated place for it on the wiring diagram label.
