INSTALLATION MANUAL
¸½СÂÀУКƸÏ
¿О УС°½О²Кµ
<99H00F0V01>
DEH-3110
Printed in Thailand
½ÐßÕçÐâÐÝо Ò ÂÐØлÐÝдÕ
<CRD3093-A/N> EE

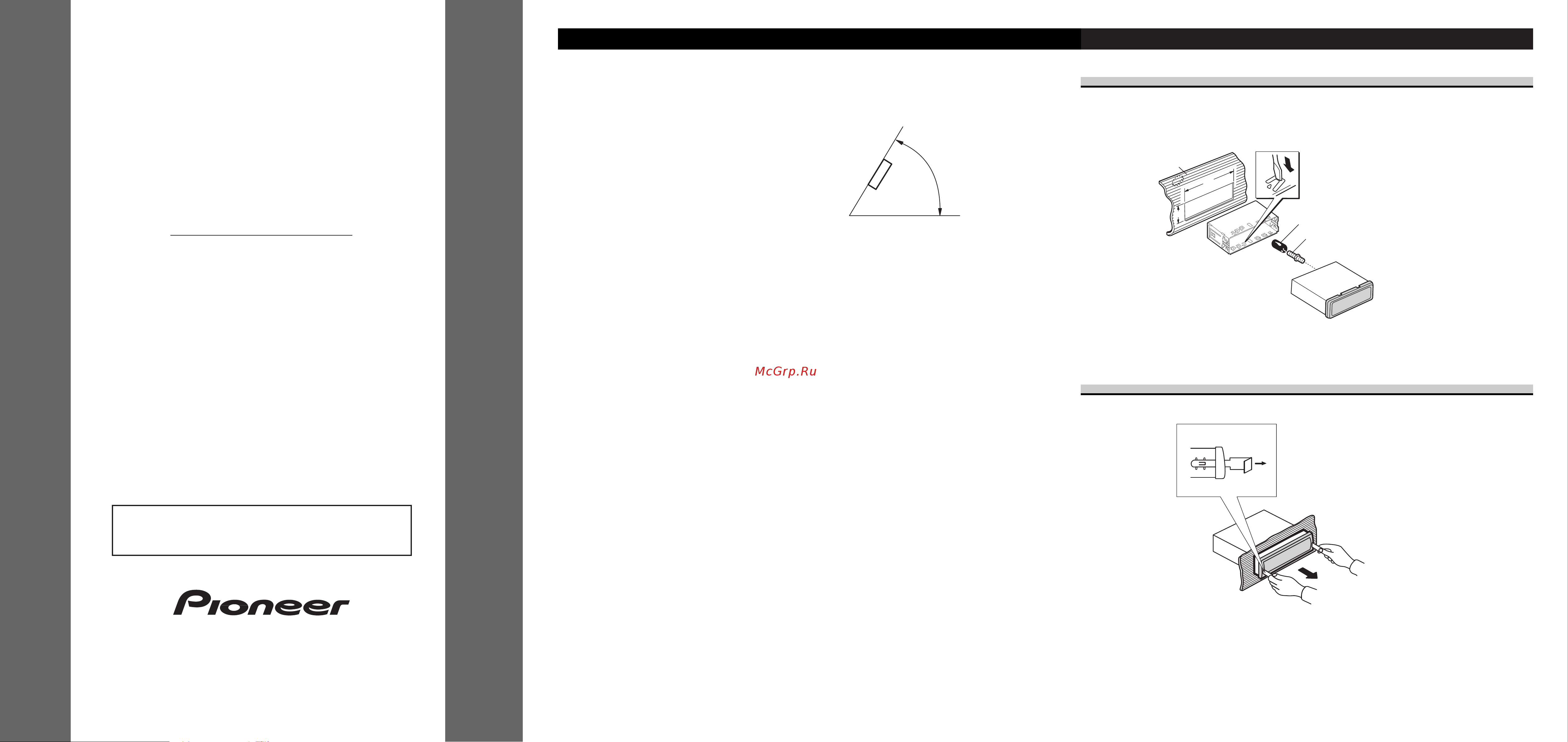

<ENGLISH>Installation
Note:
• Before finally installing the unit, connect the
wiring temporarily, making sure it is all connected
up properly, and the unit and the system work
properly.
• Use only the parts included with the unit to ensure
proper installation. The use of unauthorized parts
can cause malfunctions.
• Consult with your nearest dealer if installation
requires the drilling of holes or other modifications
of the vehicle.
• Install the unit where it does not get in the driver’s
way and cannot injure the passenger if there is a
sudden stop, like an emergency stop.
• The semiconductor laser will be damaged if it
overheats, so don’t install the unit anywhere hot —
for instance, near a heater outlet.
• If installation angle exceeds 60° from horizontal,
the unit might not give its optimum performance.
(Fig. 1)
Fig. 1
60°
Installation with the rubber bush
Fig. 2
Removing the Unit
Fig. 3
Insert the supplied extraction keys
into the unit, as shown in the figure,
until they click into place. Keeping
the keys pressed against the sides
of the unit, pull the unit out.
Holder
After inserting the holder into the dash-
board, then select the appropriate tabs
according to the thickness of the dash-
board material and bend them.
(Install as firmly as possible using the
top and bottom tabs. To secure, bend
the tabs 90 degrees.)
182
53
Rubber bush
Screw
Dashboard
This product conforms to new cord colors.
¿àоÒодÐ Ò íâоÜ Ø×дÕлØØ ØÜÕîâ ÝоÒëÕ æÒÕâÐ.
