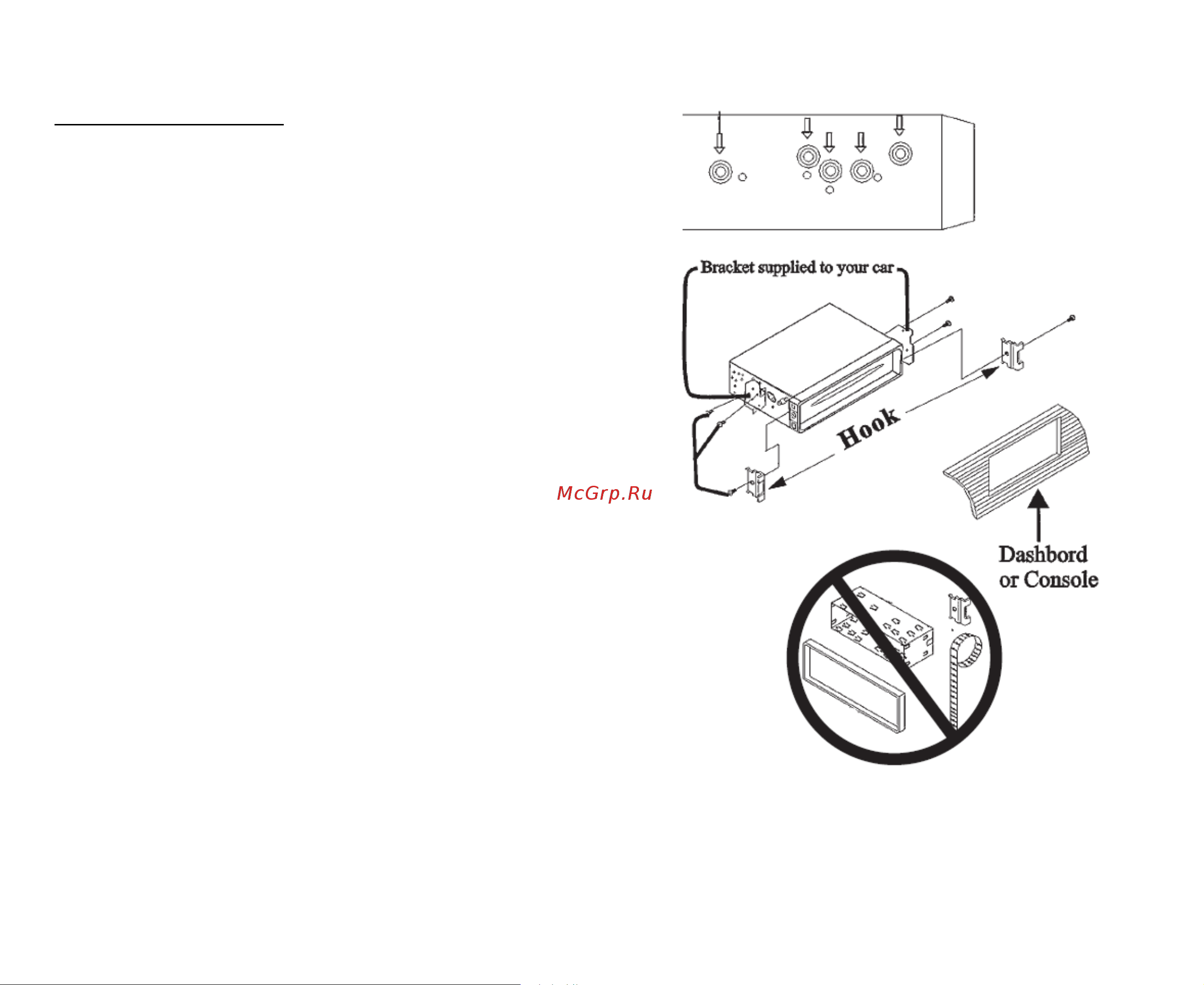

Installation method B
Note: Outer trim frame, hook, and mounting sleeve are not used
for this installation.
This is only intended as a general guide; contact the vehicle's
manufacturer for specific instructions.
This method of installation uses the screw holes at the sides of the
unit and the holes of the existing vehicle mounting bracket.
1. Remove the hooks on both sides.
2. Align the screw holes of the mounting bracket supplied with
the car and the screw holes of the main unit. Tighten the 2
screws on each side of the unit. Then fasten the brackets to the
car.
3. Attach wires of the unit to existing speaker wires. See wiring
diagram.
