Hyundai H-CMD7074 [6/75] Using the iso connector

Do not interchange the connection of the wiring!!!

For some car models you may need to modify wiring of the supplied power cord as illustrated (modified wiring), or

else the memory of the unit may be lost after you power off. Contact your authorized car dealer before installing this

unit.

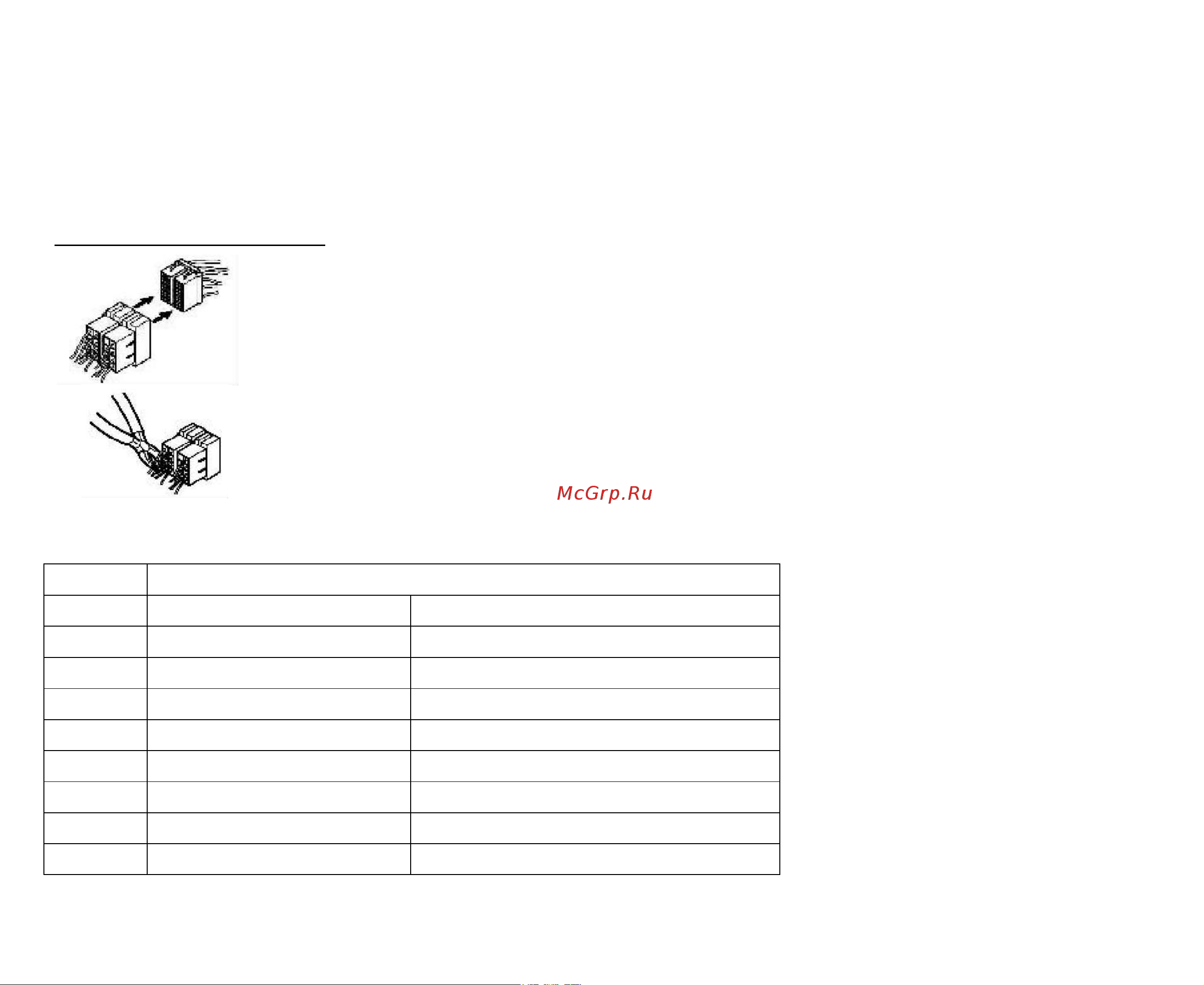

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO

connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle

carefully before connecting, incorrect connection may cause serious damage to

this unit.

Cut the connector, connect the colored leads of the power cord to the car battery

as shown in the colour code table below for speaker and power cable

connections.

Location FUNCTION

Connector A Connector B

1 Rear Right(+)---Purple

2 Rear Right(-)---Purple/Black Stripe

3 Front Right(+)---Gray

4 Battery 12V (+)/yellow Front Right(-)---Gray/Black Stripe

5 Auto Antenna/blue Front Left(+)---White

6 Front Left((-)---White/Black Stripe

7 ACC+/red Rear Left(+)---Green

8 Ground/black Rear Left(-)---Green/Black Stripe
