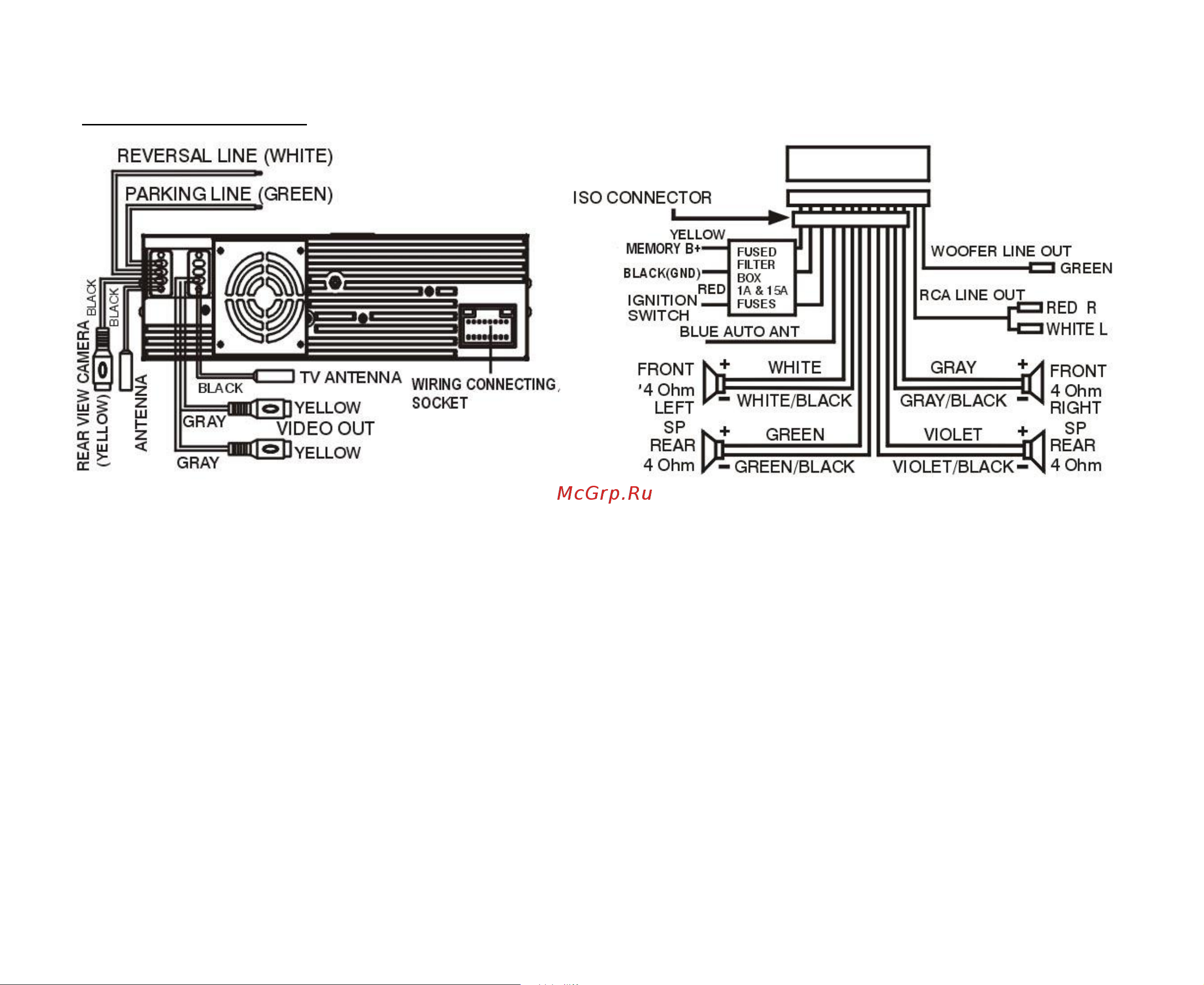

Electrical connection
Caution: Do not interchange the connection of the wiring!
For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car
dealer before installing this unit.
Note:
For your driving safety, please link your parking wire with low power level, and keep it controlled by manual
brake switch. Wire should be high power level and the unit cannot play DVD or VCD disc.
