Using the ISO Connector

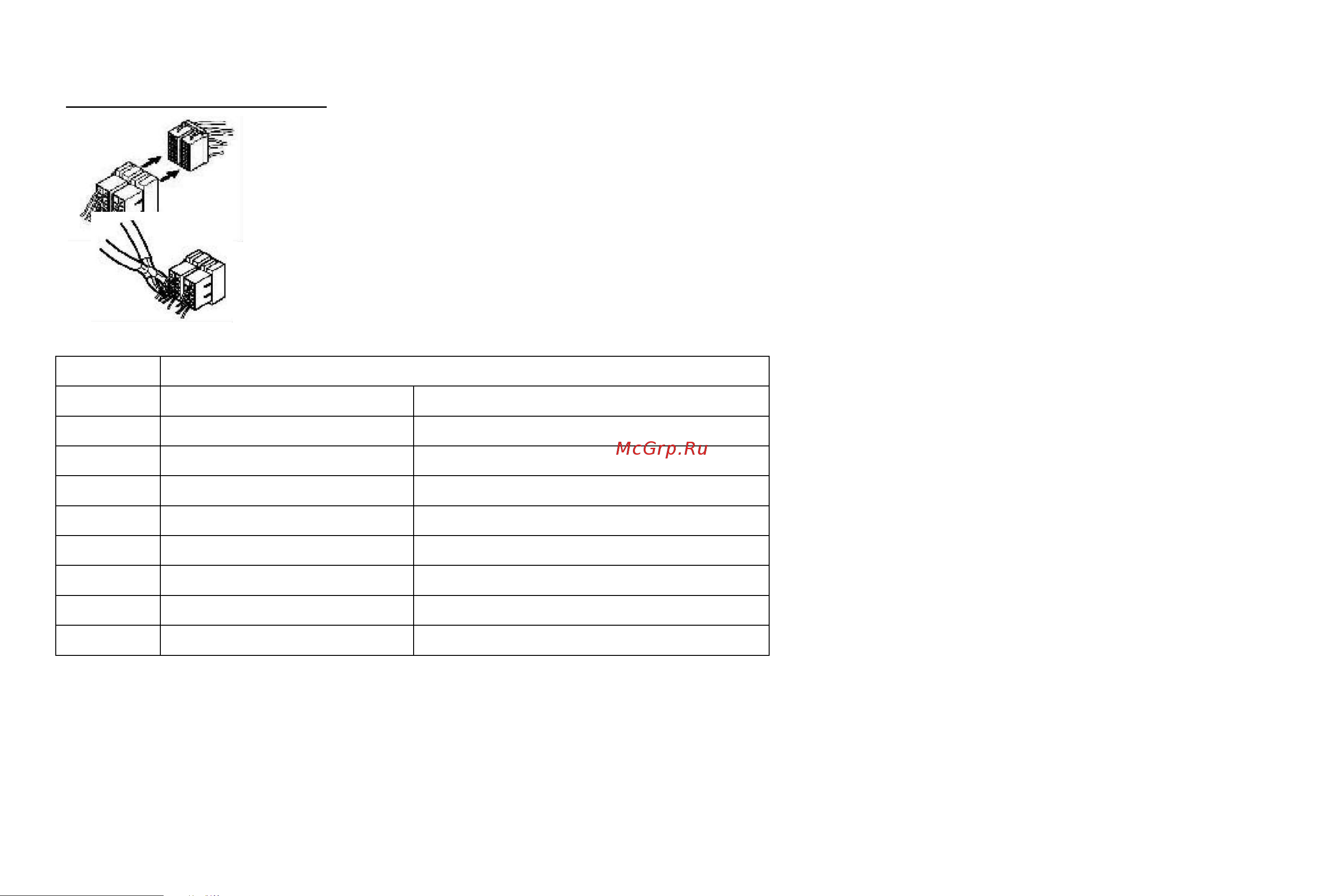

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before

connecting, incorrect connection may cause serious damage to this unit.

3. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color

code table below for speaker and power cable connections.

Location Function

Connector A Connector B

1 Rear Right(+)---Purple

2 Rear Right(-)---Purple/Black Stripe

3 Front Right(+)---Grey

4 Battery 12V (+)/yellow Front Right(-)---Grey/Black Stripe

5 Auto Antenna/blue Front Left(+)---White

6 Front Left((-)---White/Black Stripe

7 ACC+/red Rear Left(+)---Green

8 Ground/black Rear Left(-)---Green/Black Stripe
