Daikin Europe NV 10
4 INSTALLATION

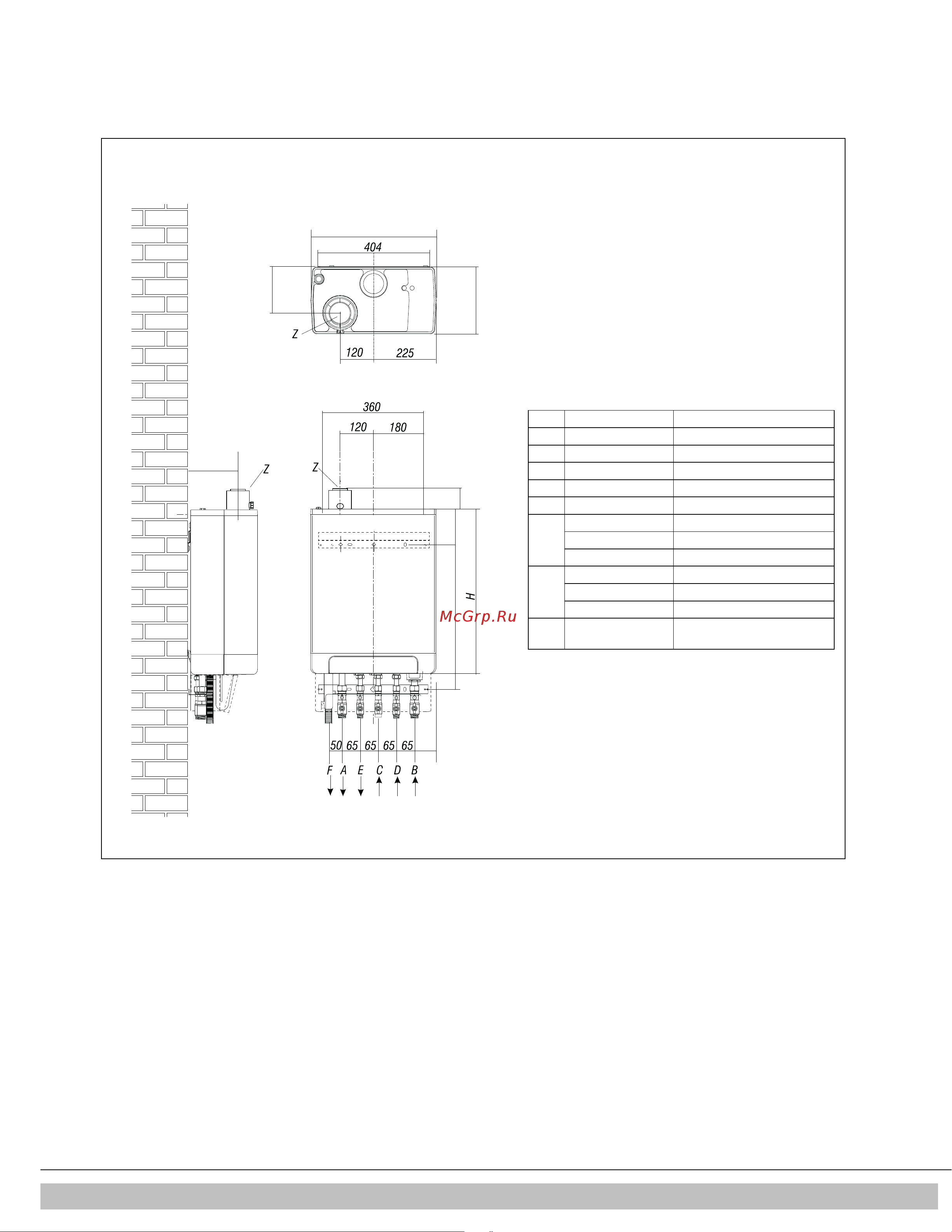

4.1 Installation measurements
Boiler mounted directly to the wall
Connections:
A =
Supply CH
G ¾” (ext)
B =
Return CH
G ¾” (ext)
C =
Gas
G ½” (int)
D =
Tap water cold
G ½” (ext)
E =
Tap water warm
G ½” (ext)
F =
Condense outlet
Ø dn25 (flexible)
h=
517mm
EKOMBG22AAV1
577mm
EKOMBG28AAV1
637mm
EKOMBG33AAV1
H=
590mm
EKOMBG22AAV1
650mm
EKOMBG28AAV1
710mm
EKOMBG33AAV1
Z =
Flue gas outlet/air
inlet
Ø60/100 (concentric)
020601002
161
161
450
240
135
h
77
75
