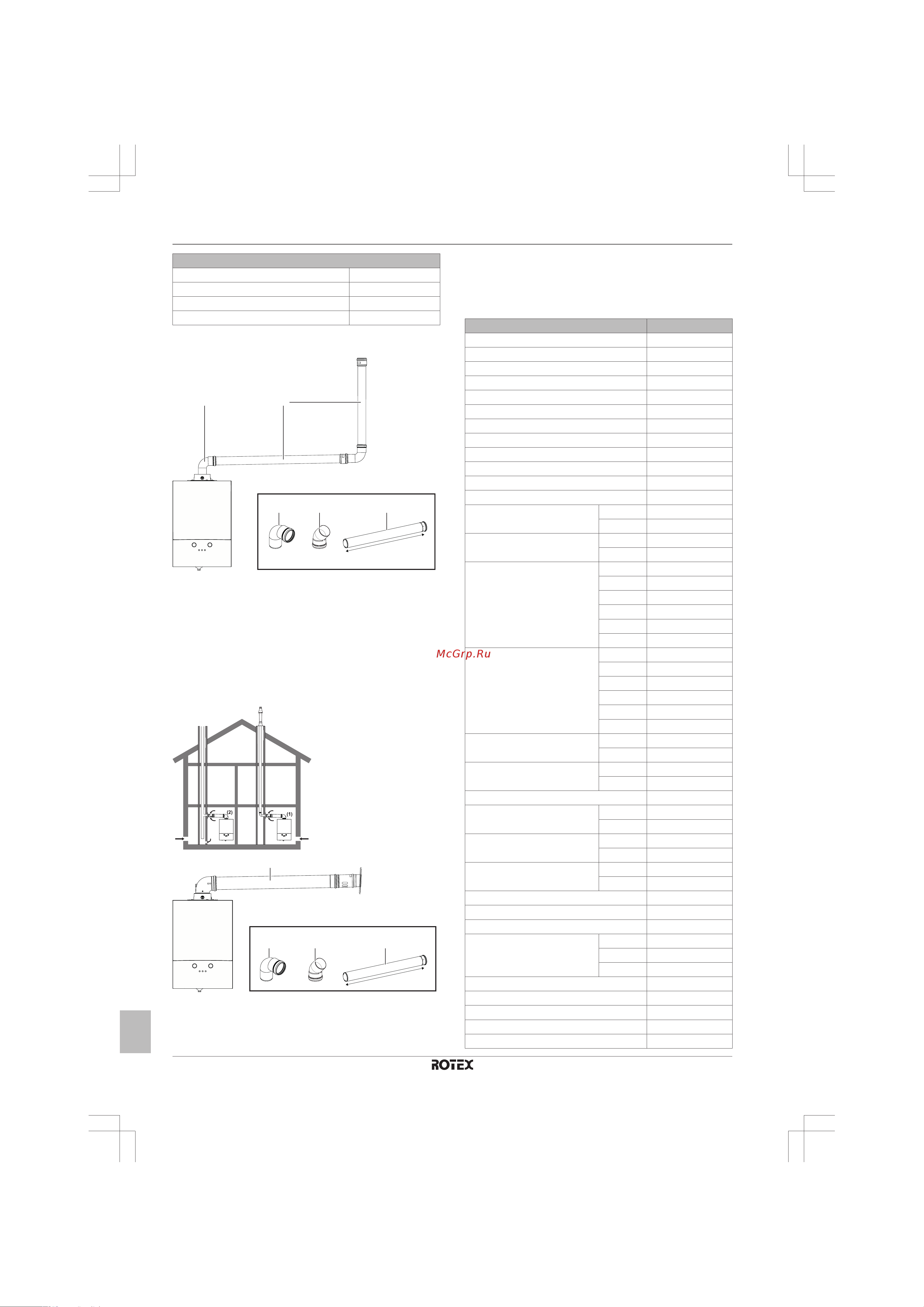

4 Installation
Installation manual
22
R2CND024A4AA + R2TND012~024A4AA
Wall-mounted condensing boiler
3P469346-4E – 2017.07
Equivalent length of options
90° elbow 60mm 1.5m
45° elbow 60mm 1.0m
90° elbow 80mm 2.0m
45° elbow 80mm 1.0m
Subtract equivalent length value of bends from the allowable flue
length value.
a
c d e
L
b
a 90° elbow 60mm
b Extension 60mm
Optional:
c 90° elbow 60mm
d 45° elbow 60mm
e Extension 60mm
L= 250-500-1000-1500-2000mm
Type B33 (open flue system)
The multi served chimnet is a system that is a part of the building
and has a separate CE marking. The connection between the boiler
and the shaft must be obtained via ROTEX.
b c
a
d
L
a B33 flue kit
Optional:
b 90° elbow 60mm
c 45° elbow 60mm
d Extension 60mm
L = 500mm
Flue parts order codes
Required flue kits and/or additional parts can be ordered from
ROTEX with the order codes given in the table below:
Flue part Order code
Wall terminal kit 60/100 (C13x) DRWTER60100AA
Wall terminal kit 80/125 (C13x) EKFGW6359
Roof terminal kit 60/100 (C33x) EKFGP6837
Roof terminal kit 80/125 (C33x) EKFGP6864
Tee 60/100 with measurement point EKFGP4667
90° elbow 60/100 with measurement point DRMEEA60100BA
90° elbow 60/100 EKFGP4660
90° elbow 80/125 EKFGP4810
45° elbow 60/100 EKFGP4661
45° elbow 80/125 EKFGP4811
30° elbow 60/100 EKFGP4664
30° elbow 80/125 EKFGP4814
Extension duct 60/100 500mm EKFGP4651
1000mm EKFGP4652
Extension duct 80/125 500mm EKFGP4801
1000mm EKFGP4802
Tile roof outlet kit 60/100 18°/22° EKFGS0518
23°/27° EKFGS0519
25°/45° EKFGP7910
43°/47° EKFGS0523
48°/52° EKFGS0524
53°/57 EKFGS0525
Tile roof outlet kit 80/125 18°/22° EKFGT6300
23°/27° EKFGT6301
25°/45° EKFGP7909
43°/47° EKFGT6305
48°/52° EKFGT6306
53°/57° EKFGT6307
Flat roof outlet kit 60/100 EKFGP6940
80/125 EKFGW5333
Wall bracket DN.100 EKFGP4631
DN.125 EKFGP4481
60/100 to 80/125 adapter DRDECO80125BA
Tee flex boiler connection set 100mm EKFGP6368
130mm EKFGP6215
Flex + support elbow 60/100 EKFGP6354
60/130 EKFGS0257
Chimney connection 60/100 EKFGP4678
80/125 EKFGS4828
Roof terminal kit 80mm EKFGP6864
90° elbow 80mm EKFGW4085
45° elbow 80mm EKFGW4086
Extension duct 80mm 500mm EKFGW4001
1000mm EKFGW4002
2000mm EKFGW4004
60/100 to 80/80 adapter DRDECOP8080BA
Air intake 80mm (C53 kit) EKFGV1102
Air intake 80mm (C83 kit) EKFGV1101
Flex kit PP DN.80 (C93 kit) EKFGP2520
Flex kit PP DN.60/80 (C93 kit) EKFGP1856
