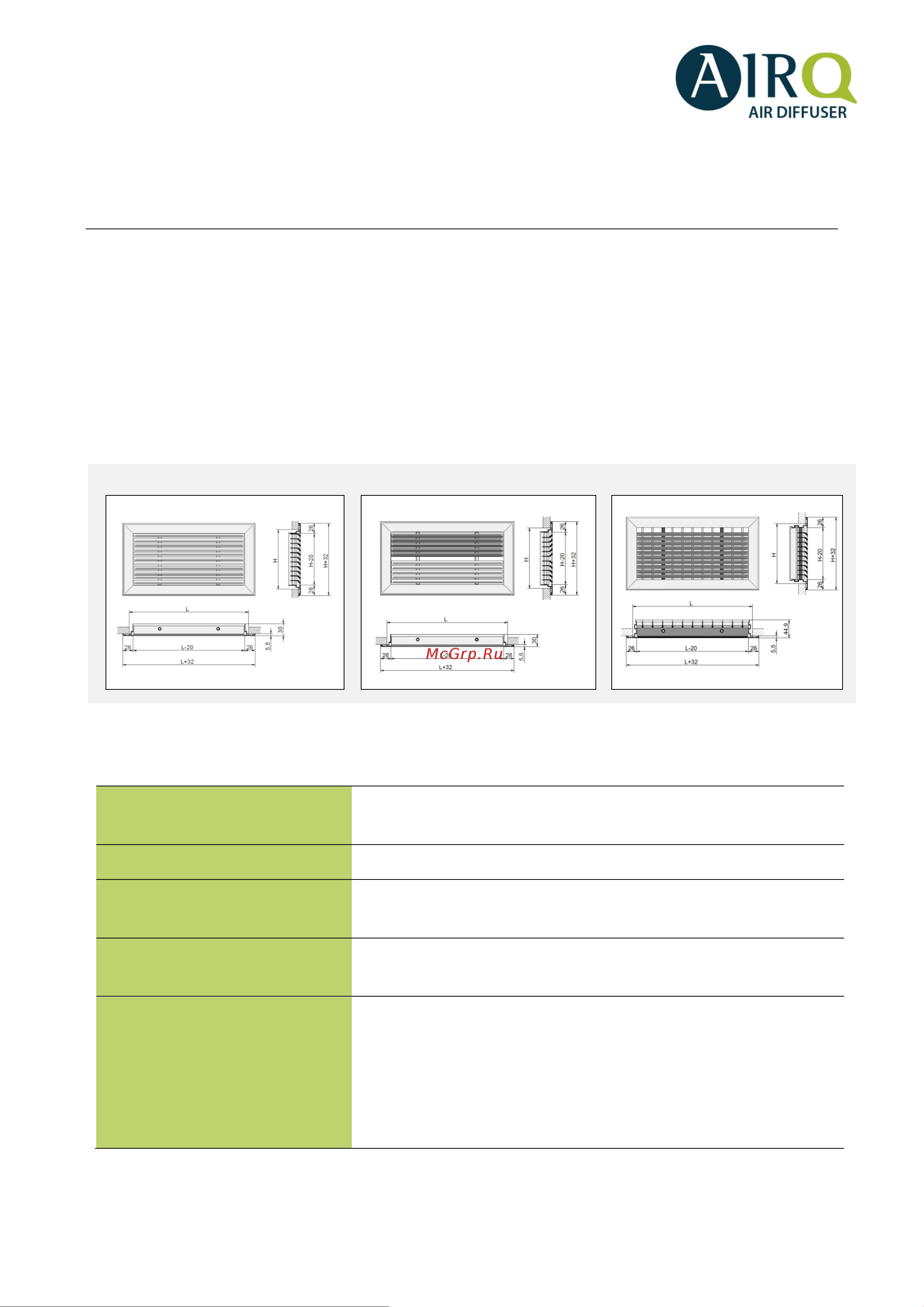

RLQ1/RLQ2/RLQV

Grille of linear slats fixed at 15º

Description

Extruded aluminum supply grilles to enable the air flow supply. 26-mm standard frame. There are two types

of models:

- RLQ1: horizontal slats fixed at 15º, positioned to a single direction.

- RLQ2: horizontal slats fixed at 15º, positioned to two directions.

- RLQV: horizontal slats fixed at 15º, positioned to a single direction with a second vertical moving

deflection.

Technical specs

Dimensions

RLQ1/RLQ1+R/RLQ2/RLQ2+R: L: 200 - 1000 mm, H: 100 - 300 mm

RLQV/RLQV+R: L: 200 -1000 mm, H: 100 - 300 mm

Material

Extruded aluminum

Finish

White (RAL 9010)

Anodized

Fixing*

Clip (K), mounting frame required

Screw (T), mounting frame required

Compatible accessories

Mounting frame

Manual flow regulation:

- All-nothing. Damper covers 100% of the grille.

- 2x1. Damper covers 50% of the grille.

- Minimum air. Damper covers 80% of the grille.

Plenum for grilles (PREJ y FR-X2F)

Grille deflector

*Note: to mount grilles in the ceiling, Airzone recommends using fixing screws.

RLQ1

RLQ2

RLQV
