Association and Certiﬁcation

Since 2010 Daikin is certiﬁed Eurovent, actively working on the

development of the certiﬁcation schemes together with EU

legislation.

Since 2015 Daikin is proud member of RLT association ,

participating to the RLT certiﬁcation scheme.

D-AHU Modular L 2 3 4 5 6 7

Airow m

/h 300 600 1200 1500 2500 3000

Heat exchanger thermal eciency

. % 93 93 93 92 94 93

External static pressure Nom. Pa 100 100 100 100 100 100

Current Nom. A 0,52 1,17 1,91 2,48 4,39 5,39

Power input Nom. kW 0,12 0,27 0,44 0,57 1,01 1,24

SFPv

. kW/m

/s 1,24 1,49 1,25 1,31 1,42 1,46

ERP compliant ErP 2018 Compliant

Electrical supply

Phase ph 1 1 1 1 1 1

Frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60

Voltage V 220/240 Vac 220/240 Vac 220/240 Vac 220/240 Vac 220/240 Vac 220/240 Vac

Main unit dimensions

Width mm 920 1100 1600 1600 2000 2000

Height mm 280 350 415 415 500 500

Length mm 1660 1800 2000 2000 2000 2000

Rectangular duct ange

Width mm 250 400 500 500 700 700

Height mm 150 200 300 300 400 400

Unit Sound Power Level (Lwa) dB 50 57 57 53 61 58

Unit Sound Pressure Level

. dBA 33 39 39 35 43 40

Weight unit kg 125 180 270 280 355 360

. Winter design condition: Outdoor: -°C,% Indoor: °C,%

. SFPv is a parameter that quantiﬁes the fan eﬃciency ( the lower it is the better will be). This reduces if airﬂow decreases.

. EN . Surrounding, Directivity (Q) = , @,m distance

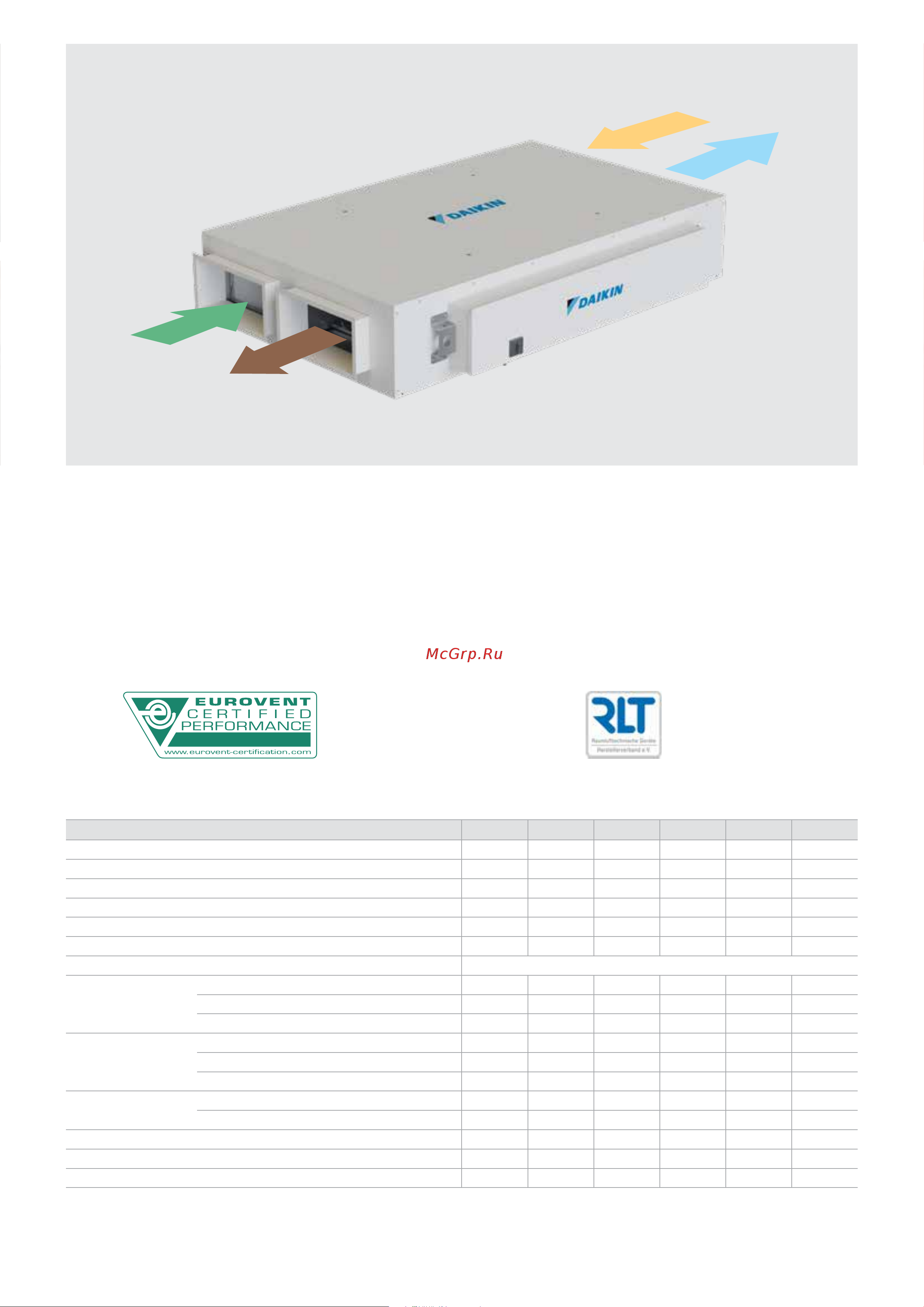

Technical details

AHU N°: 14.05.003

Range: D-AHU

Exhaust Air

Fresh Air

Return Air

Supply Air
