4 Operation
User reference guide
11
EGSAH/X06+10(U)DA9W(G)
Daikin Altherma 3 GEO
4P569819-1A – 2019.10

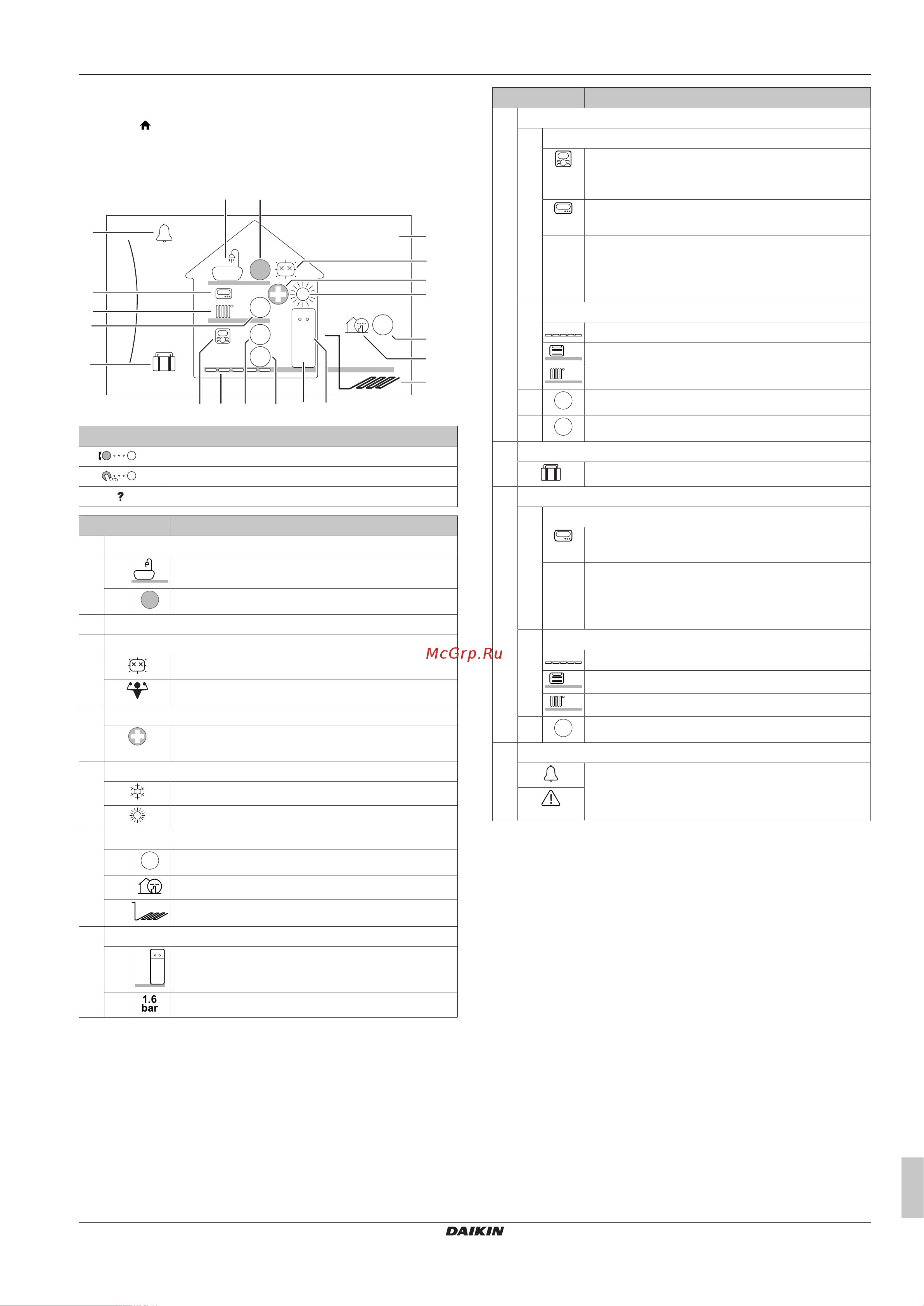

4.3.1 Home screen
Press the button to go back to the home screen. You see an
overview of the unit configuration and the room and setpoint
temperatures. Only symbols applicable for your configuration are
visible on the home screen.
6
1.6
bar
26 Feb 2019
22:19
55
21
45
i
k
j1
j2
j3
18
b
c
f3
f2
g1
f1
e
h2 h3 h4 g2h1
a2a1
d
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.
Item Description
a Domestic hot water
a1 Domestic hot water
a2
55
Measured tank temperature
(1)
b Current date and time
c Disinfection / Powerful
Disinfection mode active
Powerful operation mode active
d Emergency
Heat pump failure and system operates in
Emergency mode or heat pump is forced off.
e Space operation mode
Cooling
Heating
f Outdoor / quiet mode
f1
6
Measured outdoor temperature
(1)
f2 Quiet mode active
f3 Outdoor brine piping
g Indoor unit / domestic hot water tank
g1 Floor-standing indoor unit with integrated tank
g2 Water pressure
Item Description
h Main zone
h1 Installed room thermostat type:
Unit operation is decided based on the ambient
temperature of the dedicated Human Comfort
Interface (BRC1HHDA used as room thermostat).
Unit operation is decided by the external room
thermostat (wired or wireless).
— No room thermostat installed or set. Unit operation
is decided based on the leaving water temperature
regardless of the actual room temperature and/or
heating demand of the room.
h2 Installed heat emitter type:
Underfloor heating
Fancoil unit
Radiator
h3
21
Measured room temperature
(1)
h4
45
Leaving water temperature setpoint
(1)
i Holiday mode
Holiday mode active
j Additional zone
j1 Installed room thermostat type:
Unit operation is decided by the external room
thermostat (wired or wireless).
— No room thermostat installed or set. Unit operation
is decided based on the leaving water temperature
regardless of the actual room temperature and/or
heating demand of the room.
j2 Installed heat emitter type:
Underfloor heating
Fancoil unit
Radiator
j3
18
Leaving water temperature setpoint
(1)
k Malfunction
A malfunction occurred.
See "7.1To display the help text in case of a
malfunction"[430] for more information.
(1) If the corresponding operation (for example: space heating)
is not active, the circle is greyed out.
