Daikin LRLEQ3BY1 [38/44] Technical data
![Daikin LRLEQ3BY1 [38/44] Technical data](/views2/1801925/page38/bg26.png)
13 Technical data
Installer and user reference guide
38
LRMEQ+LRLEQ3+4BY1
Air-cooled refrigeration condensing unit
4P500362-1A – 2018.09

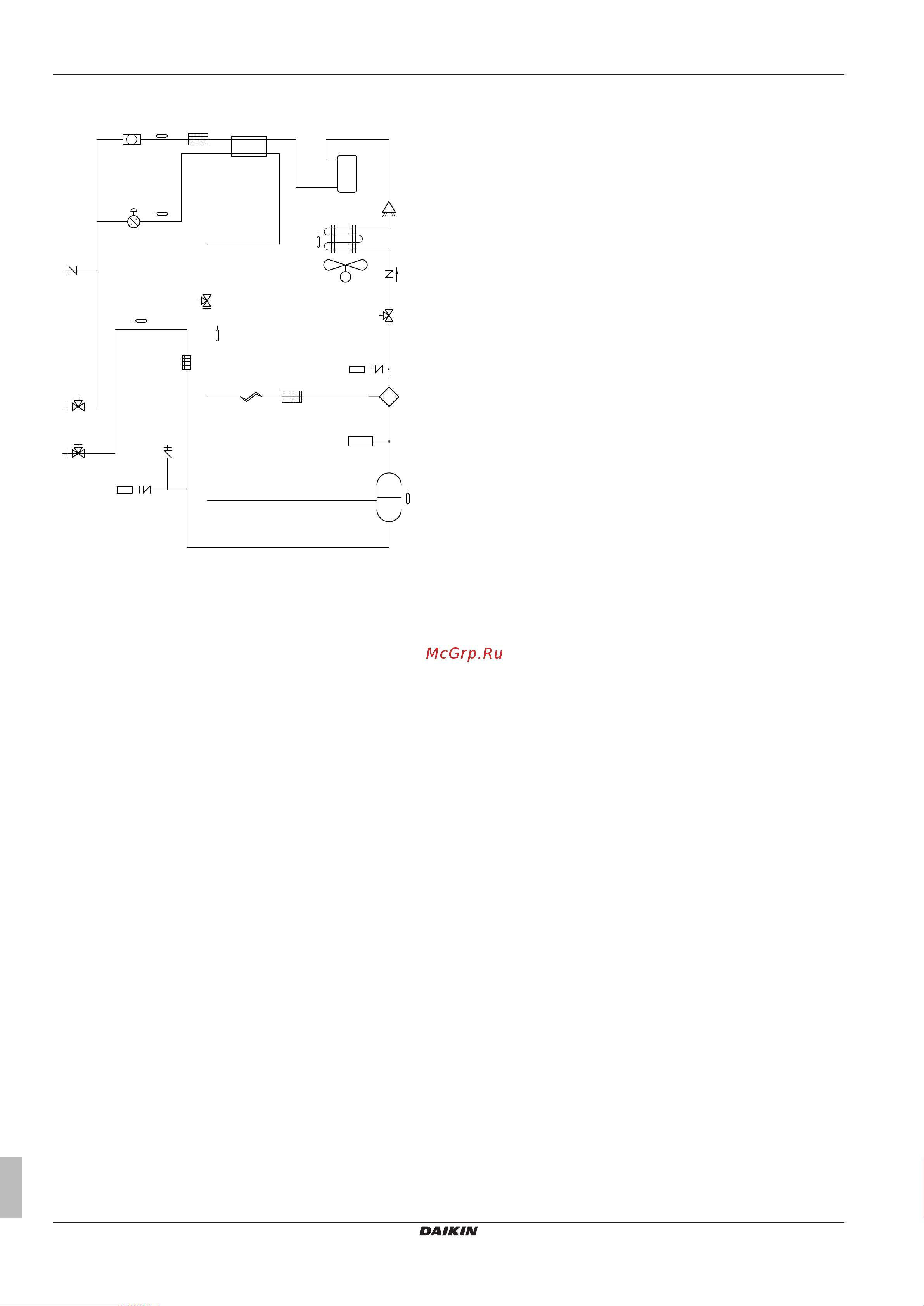

13.2 Piping diagram: Outdoor unit
R4T
R1T
R2T
R6T
R3T
Y1E
S1NPL
3D111393B
S1PH
R5T
S1NPH
M1C
M
a
c
d
b
c
c
d
n
k
l
e
j
f
i
m
h
g
f
a Stop valve (gas)
b Stop valve (liquid)
c Filter
d Service port
e Check valve
f Maintenance stop valve
g Liquid receiver
h Heat exchanger
i Oil separator
j Distributor
k Double tube heat exchanger
l Propeller fan
m Sight glass
n Capillary tube
M1C Compressor
R1T Thermistor (air)
R2T Thermistor (discharge)
R3T Thermistor (suction)
R4T Thermistor (Liquid pipe)
R5T Thermistor (Subcool heat exchanger outlet)
R6T Thermistor (Subcool heat exchanger inlet)
S1NPH High pressure sensor
S1NPL Low pressure sensor
S1PH High pressure switch
Y1E Electronic expansion valve (Subcooling)
