Annovi Reverberi RR 15.25 H N [37/100] Maintenance instructions

English Use and Installation

MAINTENANCE INSTRUCTIONS

Inspecting the pump mounting

Check that the pump's xing screws have not become loose.

If necessary, tighten them with the driving torque stated in the installation design.

Inspecting the connections and pipes

- Inspect the connections for leaks.

Leaks can normally be dealt with by tightening the connections properly.

If leaks from the intake pipeline connections are noticed, the seals must be repaired.

- Inspect the hoses.

If the pipes show signs of aging, breakage, swelling, rubbing, etc., they must be replaced.

Inspecting the Filter

- Inspect the lter cartridge.

If the lter cartridge is fouled or damaged, refer to the lter manufacturer's instructions for details of how to

restore the lter cartridge to its original ltering condition.

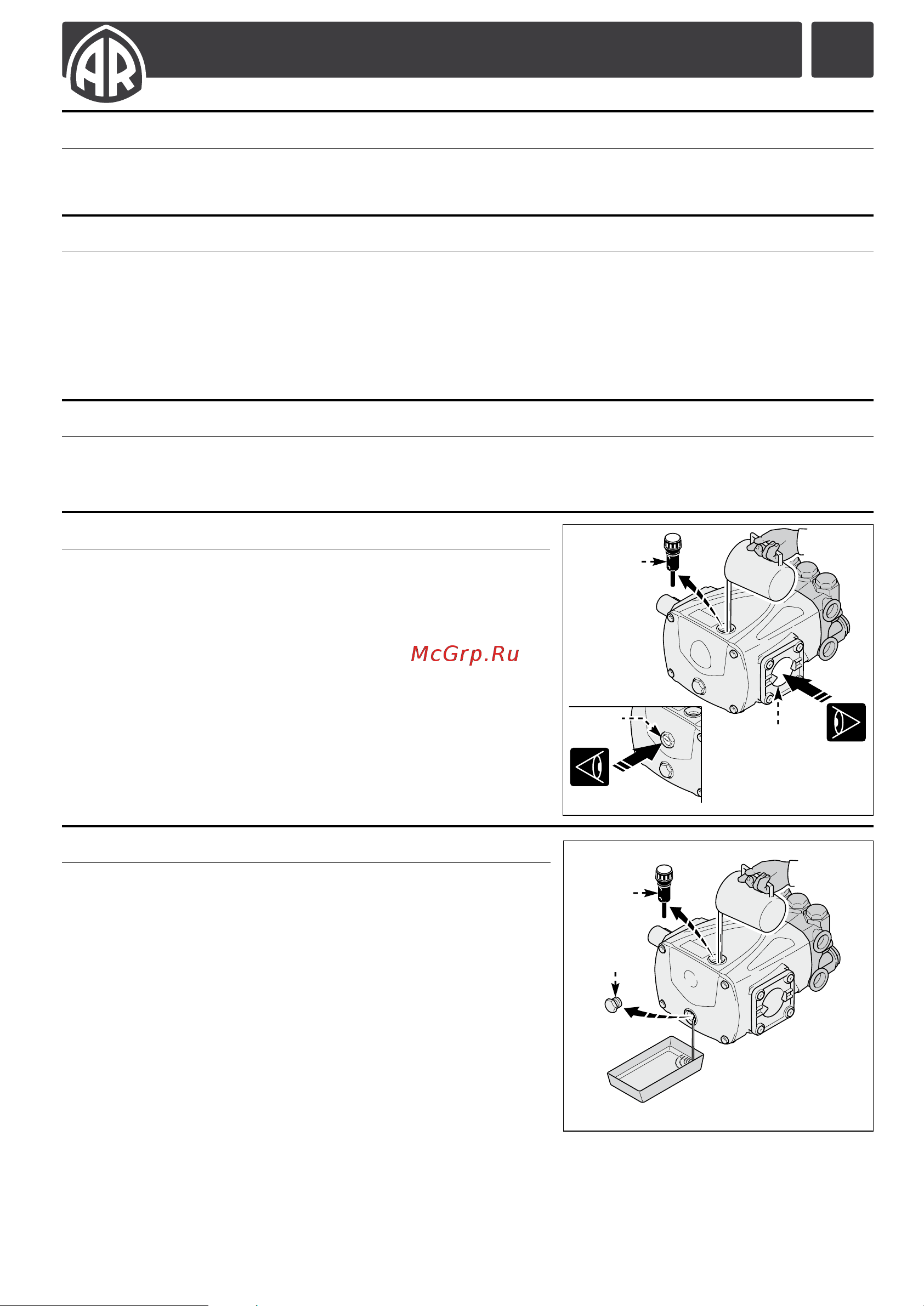

Checking the oil level

- Check the oil with the pump level and cold.

- Check the amount of oil through the level gauge (A).

- If necessary, top up with oil with the characteristics specied in

the "Lubricants table”.

To top up with oil proceed as described below.

1) Unscrew the plug (B) and pour oil in until it is halfway up the

level gauge (A).

2) Screw on the plug (B).

Changing the oil

Position the machine in which the pump is incorporated

perfectly level, with the pump slightly warm.

Do not release oil into the environment.

Dispose of spent oil in accordance with statutory requirements.

To change the oil, proceed as described below.

1) Position a receptacle of suitable capacity to collect the spent oil.

2) Unscrew the drain plug (A) and allow all the oil to ow out.

3) Screw on the drain plug A).

4) Unscrew the ller plug B).

5) Pour in the fresh oil through the ller hole until the correct

level is reached (see "Checking the oil level").

6) Screw on the ller plug B).

UN003402-CV

UN003403-CV
