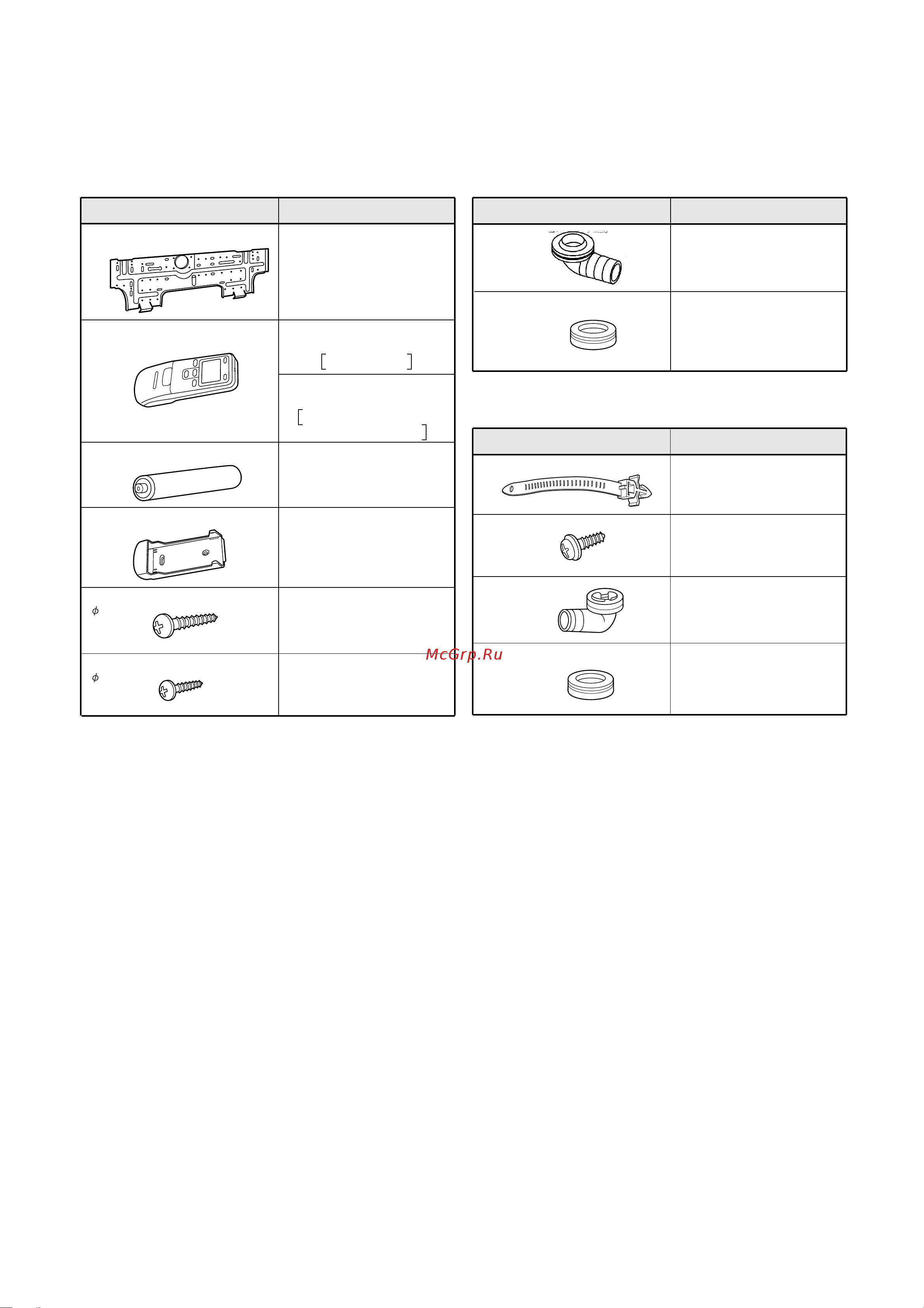

STANDARD ACCESSORIES
Drain pipe
[Heat & Cool model
(Reverse cycle)only]
[Heat & Cool model
(Reverse cycle)only]
Drain cap
[Heat & Cool model
(Reverse cycle)only]
[Heat & Cool model
(Reverse cycle)only]
Drain cap
Name and Shape P art No.
9371190013
(AR-JW1)
Cool model
9371190020
(AR-JW2)
Heat &Cool model
(Reverse cycle)
9305642014
0600185534
301141164200
301141533125
Remote control unit
Remote control unit holder
Battery (penlight)
Tapping screw (big)
( 4 x 20)
Tapping screw (small)
( 3 x 12)
INDOOR UNIT ACCESSORIES
Name and Shape P art No.
OUTDOOR UNIT ACCESSORIES
(18,000 24,000BTU model)
Drain Assy
Name and Shape P art No.
301463040100
9303029015
313166024302
OUTDOOR UNIT ACCESSORIES
(30,000 BTU model)
313739340109
Tapping screw
Cable clip
313166024302
9303029015
2004.02.23 45
9367987009
Wall hook bracket
