General-Fujitsu ASHB18LDC [4/19] Refrigerant system diagram
![General-Fujitsu AOHS18LDC [4/19] Refrigerant system diagram](/views2/1804753/page4/bg4.png)

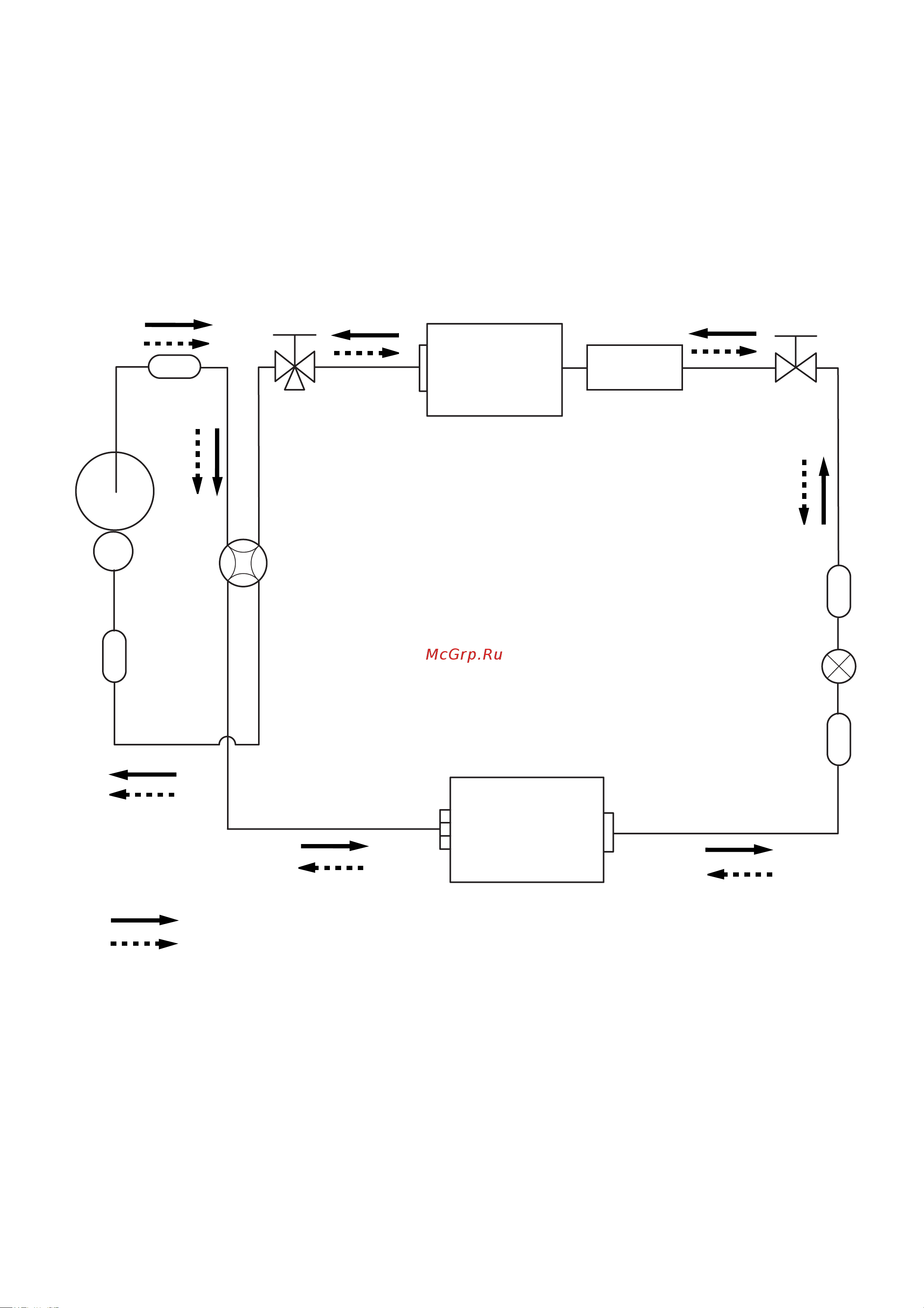

REFRIGERANT SYSTEM DIAGRAM
2-Way
valve
Strainer
Strainer
Sub-heat
exchanger
( INDOOR )
3-Way
valve
Muffler
4-Way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Sub-accumulator
Compressor
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 1/2" (12.7 mm)
2006.06.05 3
