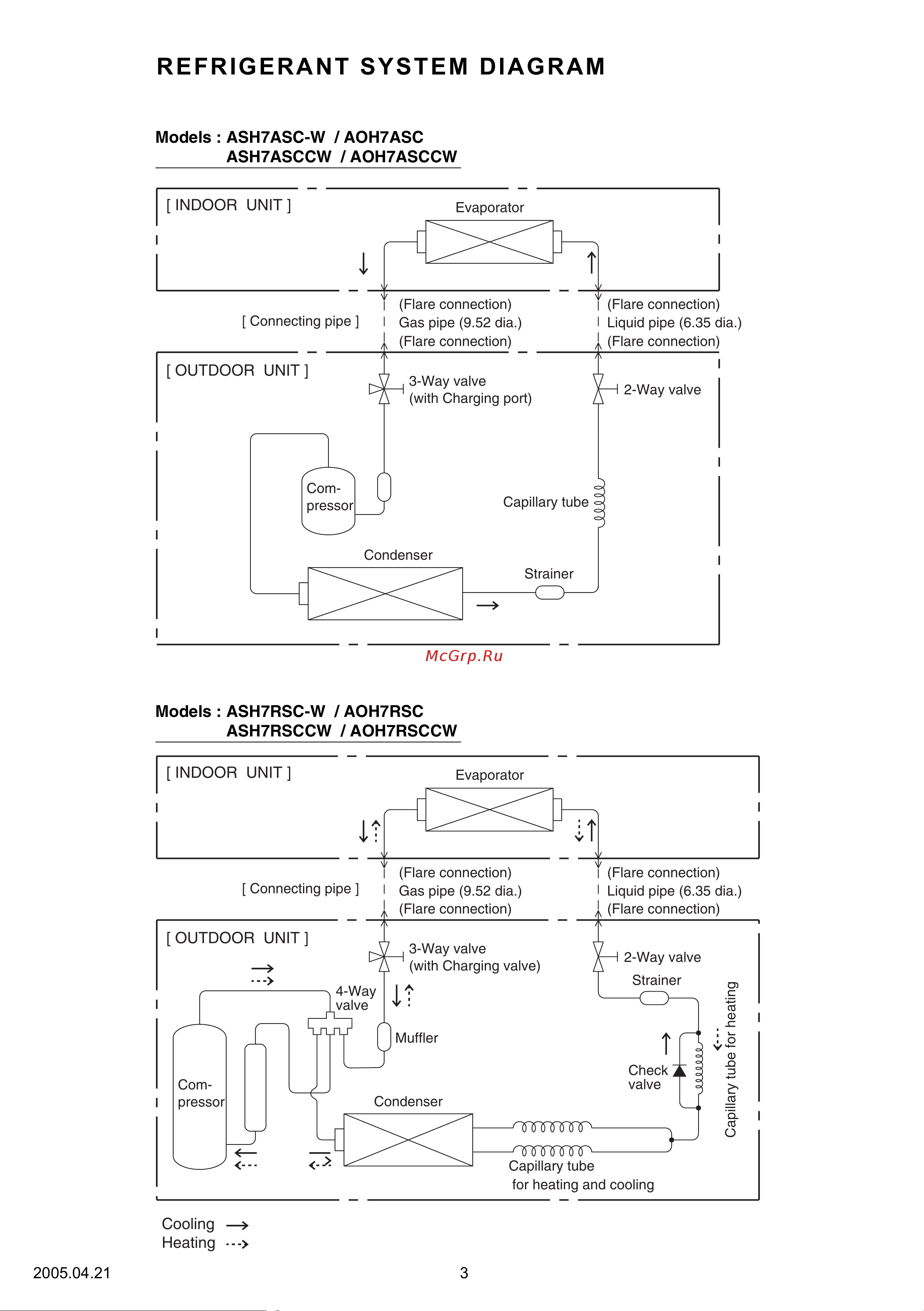

REFRIGERANT SYSTEM DIAGRAM

Models : ASH7ASC-W / AOH7ASC

ASH7ASCCW / AOH7ASCCW

Models : ASH7RSC-W / AOH7RSC

ASH7RSCCW / AOH7RSCCW

Heating

Cooling

(with Charging valve)

Condenser

Muffler

Strainer

(Flare connection)

Gas pipe (9.52 dia.)

(Flare connection)

(Flare connection)

Liquid pipe (6.35 dia.)

(Flare connection)

[ INDOOR UNIT ]

[ OUTDOOR UNIT ]

[ Connecting pipe ]

Com-

pressor

3-Way valve

4-Way

valve

Capillary tube

for heating and cooling

2-Way valve

Check

valve

Capillary tube for heating

Evaporator

(with Charging port)

Condenser

(Flare connection)

Gas pipe (9.52 dia.)

(Flare connection)

(Flare connection)

Liquid pipe (6.35 dia.)

(Flare connection)

[ INDOOR UNIT ]

[ OUTDOOR UNIT ]

[ Connecting pipe ]

Com-

pressor

3-Way valve

Capillary tube

Strainer

2-Way valve

Evaporator
