Thermal Fuse
103
Thermal Fuse
N
N
L
L
3 4
Relay
3
4

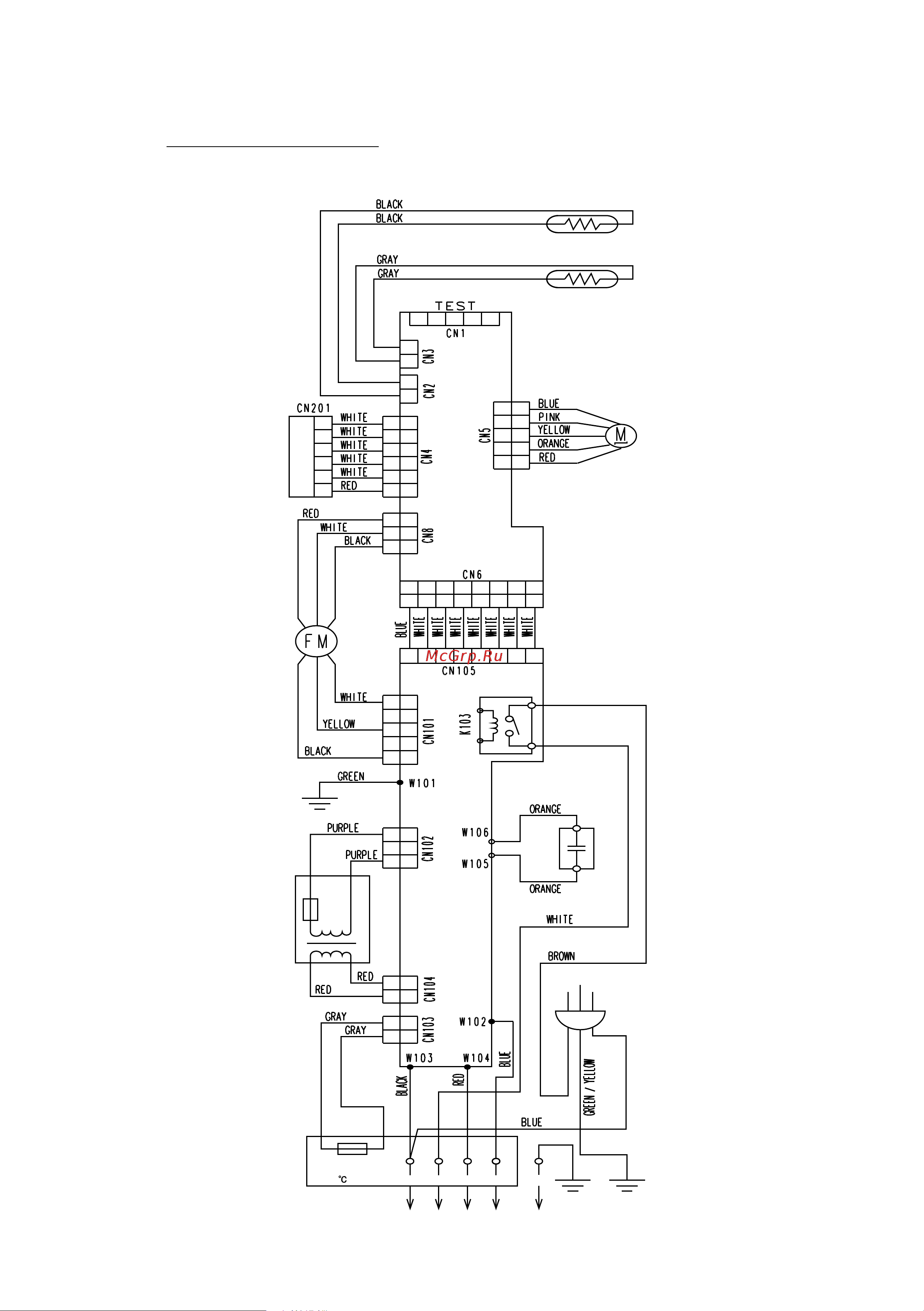

CIRCUIT DIAGRAM
Models : ASY9USCCW
ASY12USCCW
Thermistor
(Room Temp.)
Thermistor
(Pipe Temp.)
Controller PCB
Display PCB
Terminal
Fan Motor
Capacitor
Stepping Motor
Transformer
Fan Motor
Power Supply PCB
52005.02.18
