General-Fujitsu ASY13PSACW [8/28] R e f r i g e r a n t s y s t e m d i a g r a m

– 7 –

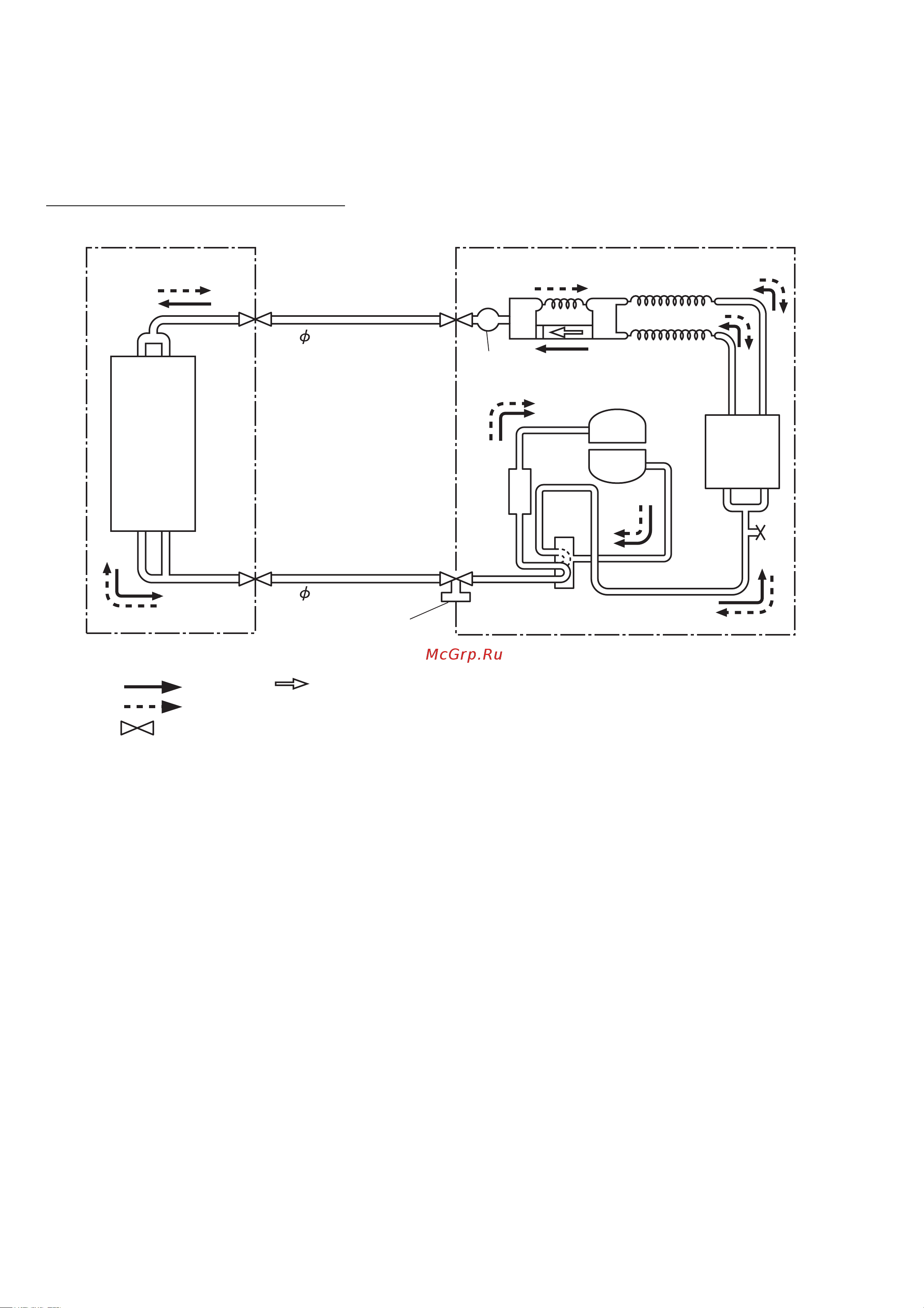

REFRIGERANT SYSTEM DIAGRAM

Refrigerant pipe

12.7 mm (4/8")

Refrigerant pipe

6.35 mm (2/8")

Charging valve

Cooling Check valve

Heating

: Flare coupling

4-Way

valve

Compressor

Capillary tube

Strainer

OUTDOOR UNITINDOOR UNIT

Condenser

Evaporator

Accumulator

Models : ASY13PSACW / AOY13PNAC

ASY13PSCCW / AOY13PNCC

ASH13PSCCW / AOH13PNCC
