![General-Fujitsu AOYG14LUC [20/22] Outdoor unit](/img/pdf.png)
General-Fujitsu AOYG14LUC [20/22] Outdoor unit
![General-Fujitsu AOYG14LUC [20/22] Outdoor unit](/views2/1805588/page20/bg14.png)
43
44
42
41
45
46

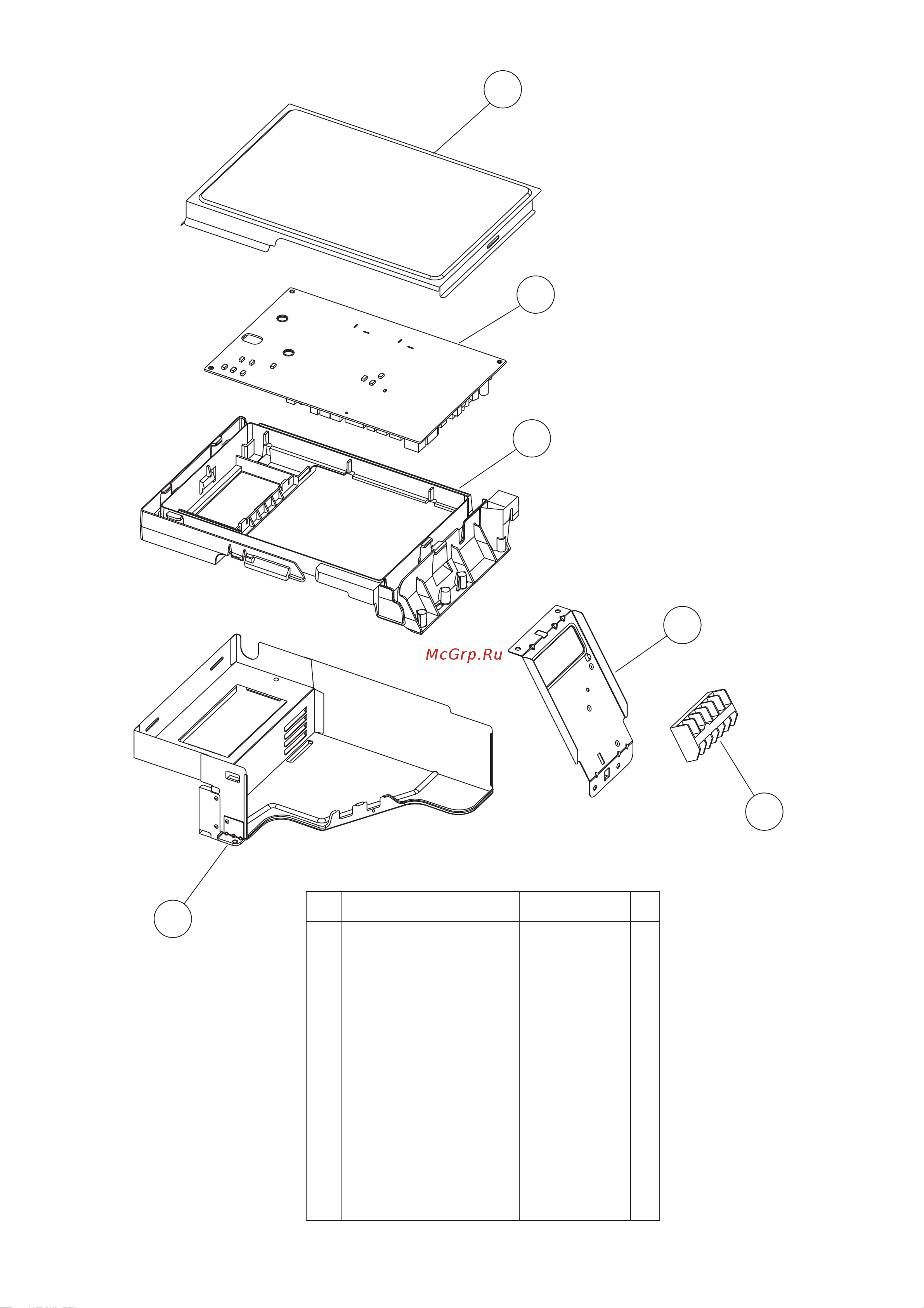

OUTDOOR UNIT
2011.04.19 19
-- Outdoor Thermistor 9900565008
45 Terminal Bracket 9317603010
46 Terminal 9900435028
44 9318242003
Controller PCB Assy (12)
-- Thermistor Assy 9900628000
41 Sealed Panel 9318181005
Inverter Case Assy
42 9708683010
Controller PCB Assy (14)
42 9708683027
43 PCB Holder 9318182002
