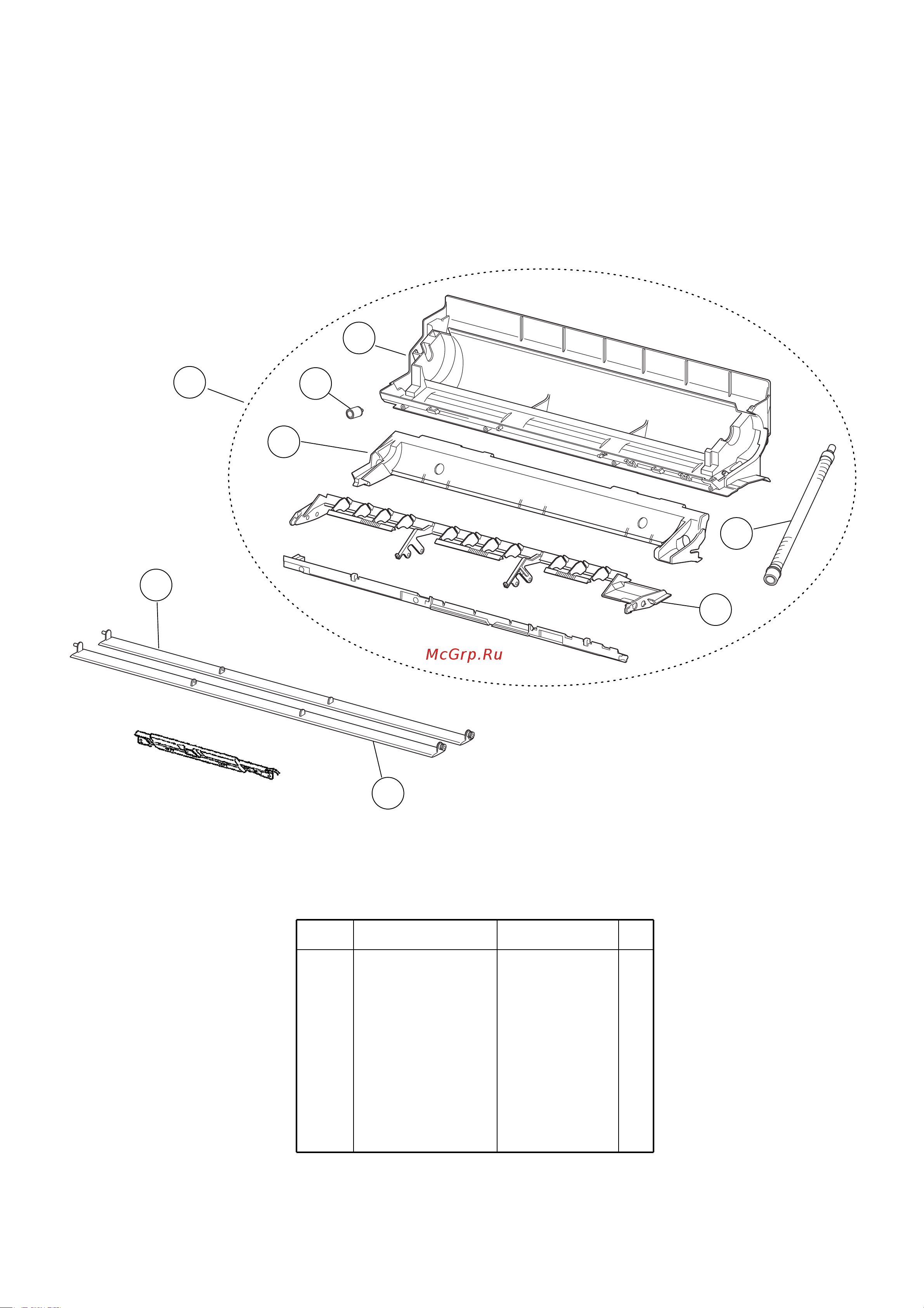

General-Fujitsu ASHA09LACM [18/24] Indoor unit casing assy
![General-Fujitsu ASHA09LACM [18/24] Indoor unit casing assy](/views2/1806186/page18/bg12.png)
16
12
15
14
13
11
18
17
INDOOR UNIT
Casing assy
17
2007.04.17
17 Louver U 9309991033
18 Louver Z 9309992030
11 Casing Assy 9311354116
15 Drain Hose Assy 9314147029
16 Drain Cap Assy 9316177017
14 Louver Holder 9309993013
12 Casing Cover B 9314160011
13 Casing Cover F 9309987005
Ref. Description Part number
