Chapter 2

H110T-SI01 USER MANUAL

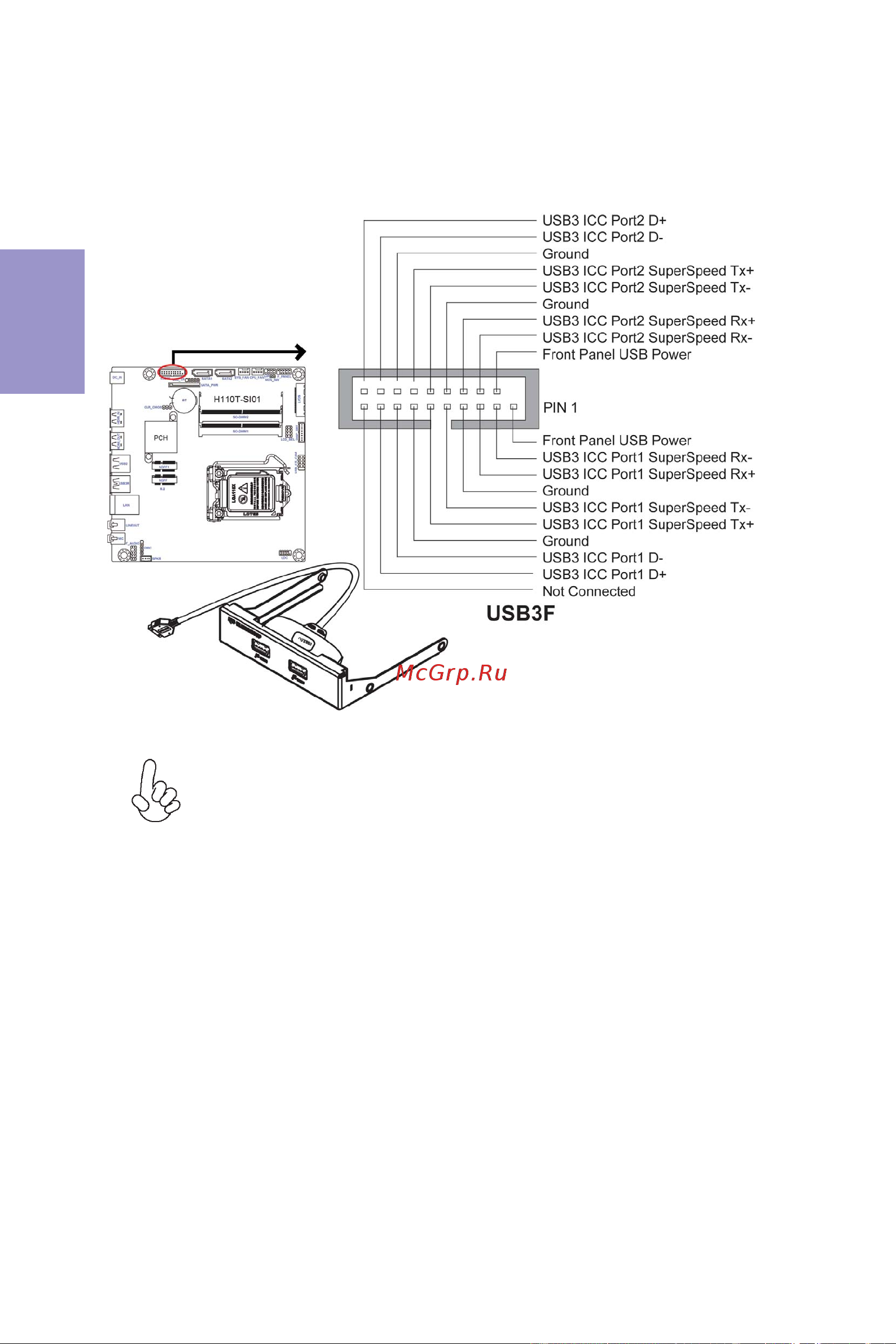

10. USB3F: Front USB 3.0 header

This motherboard implements one USB 3.0 header supporting two extra front USB

3.0 ports, which delivers 5Gb/s transfer rate.

To avoid the system instability after clearing CMOS, we recommend users

to enter the main BIOS setting page to “Load Default Settings” and then

“Save and Exit Setup”.
