General-Fujitsu ASHA12LGC [12/21] Indoor unit front panel assy
![General-Fujitsu ASHA12LGC [12/21] Indoor unit front panel assy](/views2/1806468/page12/bgc.png)
PARTS
1
2
5
6
7
8
3
3
4
4

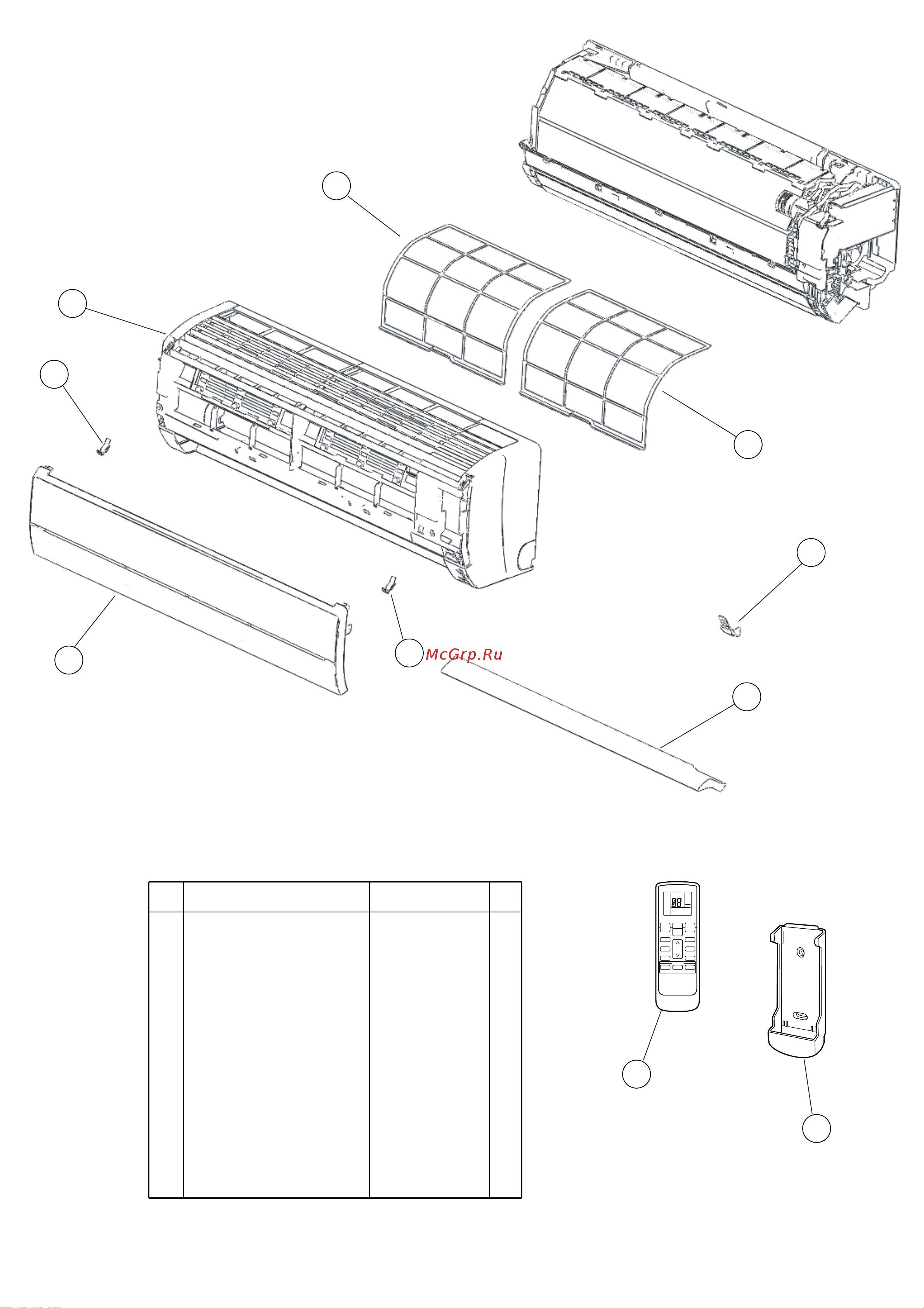

INDOOR UNIT
Front panel assy
11
4 Air Filter 9316562004
1 Front Panel 9316558014
5 Receiver Window 9316588004
3
6
Clamper (Grille) 9316906006
2 Intake Grille 9316560024
Panel Cover 9316561007
-- Wire Cover 9316559004
-- Air Clean Filter Assy 9317250009
-- Wire Shield 9316584006
7 Remote Control 9316397026
8 Remote Control Holder 9305642045
Ref. Description Part number
2008.01.31
